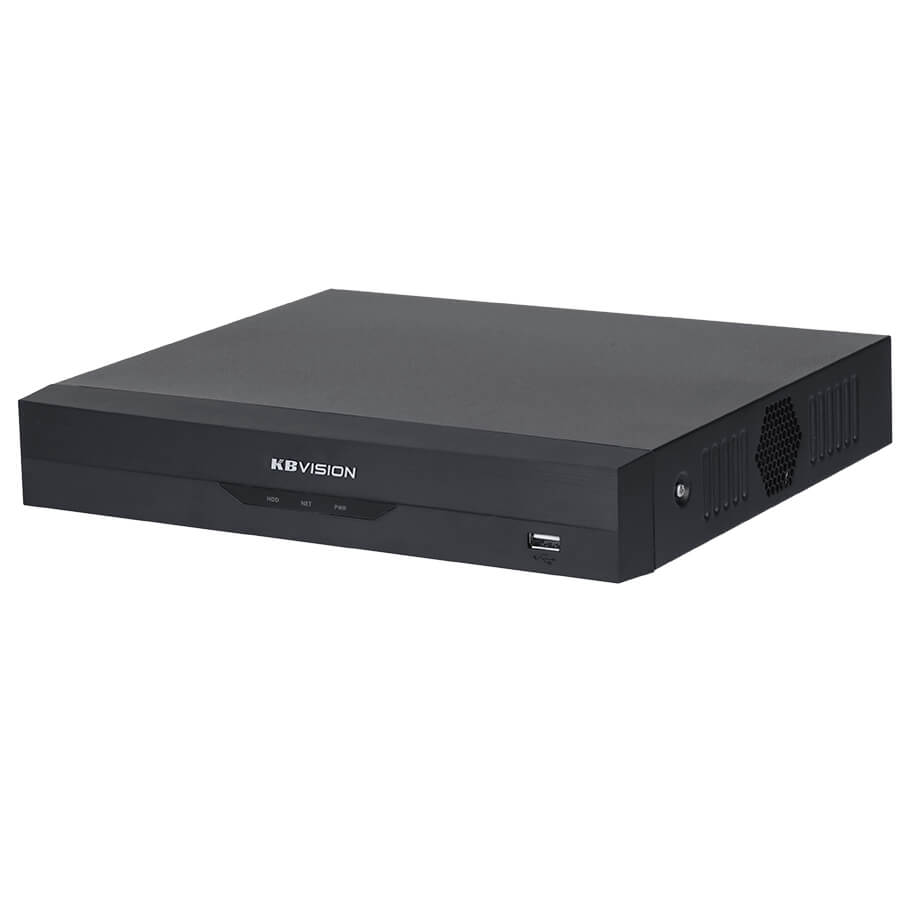

Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-DAi8108H3

Trang Chủ >> Camera quan sát >> Đầu ghi hình KBVISION >> Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-DAi8108H3
Mã số:02678676
Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-DAi8108H3

Đầu ghi hình 8 kênh 5 in 1 KBVISION KX-DAi8108H3

- Đầu ghi hình AI nhận diện khuôn mặt 8 kênh.

- Hỗ trợ kết nối 5 in 1 HDCVI/AHD/TVI/CVBS/IP.

- Hỗ trợ camera HDCVI 5M-N (1fps~10fps); 4M-N/1080P (1fps~15fps); 1080N/720P/960H/D1/CIF (1fps~25/30fps).

- Chuẩn nén hình ảnh: AI Coding/H.265+/H.265/H.264+/H.264.

- Hỗ trợ camera IP tối đa 12 kênh, lên đến 6 Megapixel. Băng thông tối đa 64 Mbps.

- Hỗ trợ 1 kênh Bảo vệ chu vi và 8 kênh SMD Plus.

- Chế độ xem lại: 1/4 kênh cùng lúc.

- Tương thích với tín hiệu ngõ ra: 1 VGA, 1 HDMI.

- Hỗ trợ 1 cổng SATA dung lượng 10TB.

- Cổng mạng: 1 RJ-45 Port (100Mbps).

- Hỗ trợ cổng Audio in/out đàm thoại 2 chiều hoặc ghi âm cho kênh 1.

- Hỗ trợ 1 kênh Face recognition (chỉ hỗ trợ camera analog).

- Tốc độ xử lý: lên đến 8 khuôn mặt/ giây.

- Cảnh báo người lạ: phát hiện người lạ mặt (không có trong cơ sở dữ liệu của thiết bị).

- Hỗ trợ tìm kiếm và phân loại theo mục tiêu (Người, Phương tiện).

- Hỗ trợ 128 người sử dụng truy cập cùng lúc thích hợp cho những dự án như trường học, trường mầm non...

- Hỗ trợ kết nối với camera của các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek,...

Đặc tính kỹ thuật

System
Main Processor Embedded processor
Operating System Embedded linux
Perimeter Protection
Performance 1 channel, 10 IVS for each channel
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (Human, Vehicle)
Face Recognition
Performance Max 8 face pictures/sec processing
1 channel video stream face recognition, only support analog camera
Stranger Mode Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face picture.
Database Application Each database can be applied to video channels independently.
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance 8 channels
AI Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 8 channels, BNC
HDCVI Camera Input 5MP, 4MP, 1080P@ 25/30 fps, 720P@ 50/60 fps, 720P@ 25/30 fps
AHD Camera Input 5MP, 4MP, 1080P@ 25/30 fps, 720P@ 25/30 fps
TVI Camera Input 5MP, 4MP, 1080P@ 25/30 fps, 720P@ 25/30 fps
CVBS Camera Input PAL/NTSC
IP Camera Input 8+4 channels, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording
Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF
Record Rate Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080P (1 fps–15 fps); 1080N/720P/960H/
D1/CIF (1 fps–25/30 fps)
Sub stream: D1/CIF (1 fps–15 fps)
Bit Rate 32 kbps–6144 kbps per channel
Record Mode Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval 1 min–60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Audio Compression G.711A; G.711U; PCM
Audio Sample Rate 8 KHz, 16 bit per channel
Audio Bit Rate 64 kbps per channel
Display
Interface 1 HDMI; 1 VGA
Resolution 1920 × 1080; 1280 × 1024; 1280 × 720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Interface 1 RJ-45 Port (100 MB)
Network Function HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports KBVISION IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone; iPad; Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback and Backup
Playback 1/4/9
It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode USB Device/Network
Storage
Internal HDD 1 SATA port, up to 10 TB capacity
Auxiliary Interface
USB 2 USB ports (USB 2.0)
RS485 1 port, for PTZ control
Electrical
Power Supply DC 12V/2A
Power Consumption (Without HDD) < 7W
Construction
Dimensions Compact 1U, 260 mm × 238 mm × 48 mm
Net Weight (without HDD) 1.19 kg (2.62 lb)
Gross Weight 1.639 kg (3.61 lb)
Installation Desktop installation
Environmental
Operating Conditions -10°C to +55°C (+14°F to +131°F), 0%–90% (RH)
Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0%–90% (RH)
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

- Thương hiệu KBVISION của Mỹ.

- Sản xuất tại Trung Quốc.

- Bảo hành: 24 tháng.



Giá: 2.057.000 VND (Đã bao gồm VAT)
