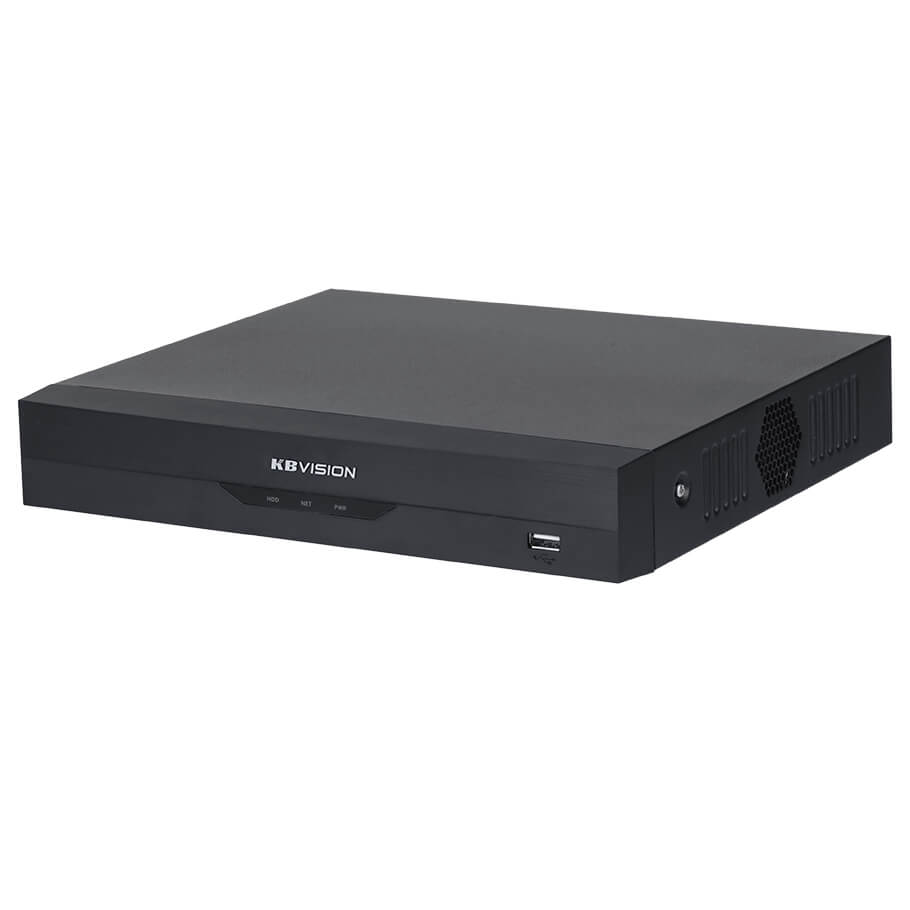

0916 287 068 Đầu ghi hình 16 kênh 5 in 1 KBVISION KX-DAi8116H3
Đầu ghi hình 16 kênh 5 in 1 KBVISION KX-DAi8116H3
- Đầu ghi hình 16 kênh 5 in 1 AI nhận diện khuôn mặt.
- Hỗ trợ HDCVI/AHD/TVI/CVBS/IP.
- Chuẩn nén hình ảnh: AI Coding/H.265+/H.265/H.264+/H.264.
- Hỗ trợ camera IP tối đa 24 kênh, lên đến 6Mp. Băng thông tối đa 128Mbps.
- Chế độ xem lại Playback: 1/4/9/16 kênh cùng lúc (1/4/9 khi bật chức năng thông minh).
- Hỗ trợ chức năng Bảo vệ chu vi (2ch) và SMD Plus (16ch) (analog).
- Hỗ trợ 2 kênh Face recognition (camera analog). Tốc độ xử lý lên đến 12 khuôn mặt/giây.
- Cảnh báo người lạ: phát hiện người lạ mặt (không có trong cơ sở dữ liệu của thiết bị).
- Hỗ trợ tìm kiếm và phân loại theo mục tiêu (Người, Phương tiện).
- Hỗ trợ cổng Audio in/out (ghi âm cho kênh số 1), hỗ trợ truyền tải âm thanh trên cáp đồng trục.
- Hỗ trợ 1 HDMI, 1 VGA, 1 RJ-45 Port (1000MB).
- Hỗ trợ 1 ổ cứng SATA dung lượng 16TB.
- Hỗ trợ 128 người sử dụng truy cập cùng lúc thích hợp cho những dự án như trường học, trường mầm non...
- Hỗ trợ kết nối với camera của các hãng khác như: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek,...
Đặc tính kỹ thuật
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Performance | 2 channels, 10 IVS for each channel |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| Face Recognition | |
| Performance | Max 12 face pictures/sec processing 2 channels video stream face recognition, only support analog camera |
| Stranger Mode | Detect strangers' faces (not in device's face database). Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| SMD Plus | |
| Performance | 16 channels |
| AI Search | Search by target classification (Human, Vehicle) |
| Video and Audio | |
| Analog Camera Input | 16 channels, BNC |
| HDCVI Camera Input | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps> |
| AHD Camera Input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps> |
| TVI Camera Input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps> |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 16+8 channels, each channel up to 6MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF |
| Record Rate | Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/ D1/CIF (1fps–25/30fps) Sub stream: D1/CIF (1fps–15fps) |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8 KHz, 16 bit Per Channel |
| Audio Bit Rate | 64 Kbps Per Channel |
| Display | |
| Interface | 1 HDMI ,1 VGA |
| Resolution | VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode. |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Interface | 1 RJ-45 Port (1000 MB) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports KBVISION IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback and Backup | |
| Playback | 1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode. |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Port, up to 10TB capacity |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB Ports (1 USB 2.0 , 1 USB 3.0) |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | DC 12V/2A |
| Power Consumption (Without HDD) | <12W |
| Construction | |
| Dimensions | Compact 1U, 260 mm × 238 mm × 48 mm |
| Net Weight (without HDD) | 1.0 kg (2.2 lb) |
| Gross Weight | 1.4 kg (3.1 lb) |
| Installation | Desktop installation |
| Environmental | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 0–90% RH |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F) , 0–90% RH |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
- Thương hiệu KBVISION của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
