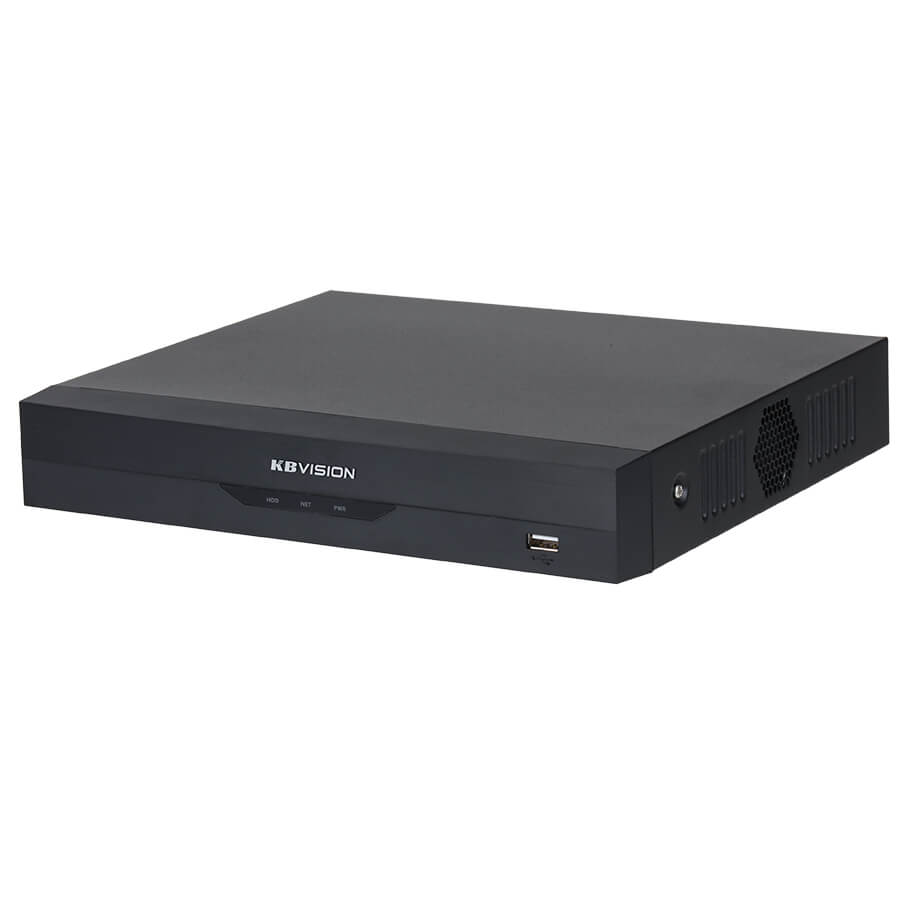

Đầu ghi hình 16 kênh 5 in 1 KBVISION KX-DAi2K8116H3
- KBVISION KX-DAi2K8116H3 là đầu ghi hình đa năng (penta-brid), hỗ trợ cùng lúc nhiều loại camera như HDCVI, AHD, TVI, CVBS và IP. Với khả năng quản lý tối đa 16 kênh analog và mở rộng lên đến 32 kênh camera IP (8MP/kênh), sản phẩm mang đến hiệu suất xử lý mạnh mẽ, tích hợp các tính năng AI thông minh như nhận diện khuôn mặt, SMD Plus, bảo vệ chu vi. Đây là giải pháp lý tưởng cho hệ thống giám sát vừa và nhỏ cần sự ổn định, tiết kiệm và thông minh.
Tính năng nổi bật
Hỗ trợ đa chuẩn camera
- Kết nối linh hoạt với nhiều loại camera: HDCVI, AHD, TVI, CVBS và IP.
- Hỗ trợ tối đa 32 kênh IP (mở rộng từ 16 analog sang IP), độ phân giải lên đến 8MP.
Hiệu suất ghi hình mạnh mẽ
- Băng thông tối đa: 128 Mbps (vào/ghi/truyền tải).
- Giải mã linh hoạt: hỗ trợ camera 4K, 6MP, 5MP, 4MP, 1080p và 720p.
- Nén video thông minh: AI Coding, H.265+, H.265, H.264+, H.264 → tiết kiệm băng thông & dung lượng lưu trữ.
Công nghệ AI thông minh
- Nhận diện khuôn mặt:
• Lưu trữ tới 20.000 hình ảnh khuôn mặt trong 10 cơ sở dữ liệu.
• Nhận diện 2 kênh analog đồng thời, phân tích các đặc điểm: giới tính, độ tuổi, biểu cảm, kính, khẩu trang, râu.
- SMD Plus (Smart Motion Detection): Hỗ trợ tới 16 kênh analog, phát hiện người & phương tiện, lọc bỏ báo động giả do lá cây, mưa, ánh sáng.
- Bảo vệ chu vi (Perimeter Protection): Hỗ trợ lên đến 8 kênh analog, phát hiện xâm nhập, vượt ranh giới ảo.
Lưu trữ an toàn
- Hỗ trợ 1 khay ổ cứng SATA, dung lượng tối đa 16TB.
- Cho phép sao lưu nhanh qua USB hoặc mạng.
Kết nối & hiển thị hình ảnh
- Ngõ ra: 1 HDMI (4K) và 1 VGA, hiển thị đồng thời.
- Hỗ trợ xem nhiều khung hình: 1/4/8/9/16 (khi mở rộng IP: thêm 25/36).
- Tương thích nhiều hãng camera khác qua chuẩn ONVIF.
Tích hợp IoT & POS
- Hỗ trợ kết nối với các thiết bị IoT, POS để mở rộng ứng dụng cho cửa hàng, siêu thị.
Thông số kỹ thuật
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) ) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
| IP Camera Input | Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Encoding Capacity | Main stream: 4K@(1fps-7fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@(1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | IOS; Android |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Alarm | |
| General Alarm | Motion detection; video loss; tampering |
| Anomaly Alarm | No disk; storage error; disk full; camera offline; IP conflict; MAC conflict |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
| Ports | |
| Audio Input | 1-channel RCA 16-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature. |
| RS-485 | 1 port, for PTZ control |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | DC 12V, 3A |
| Power Consumption | |
| Net Weight | 1.30 kg (2.87 lb) |
| Product Dimensions | 325.0 × 257.1 × 55.0 mm (W × D × H) |
| Operating Temperature | –10°C to +55°C (14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH) |
| Installation | Rack or desktop |
- Thương hiệu KBVISION của Mỹ.
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
