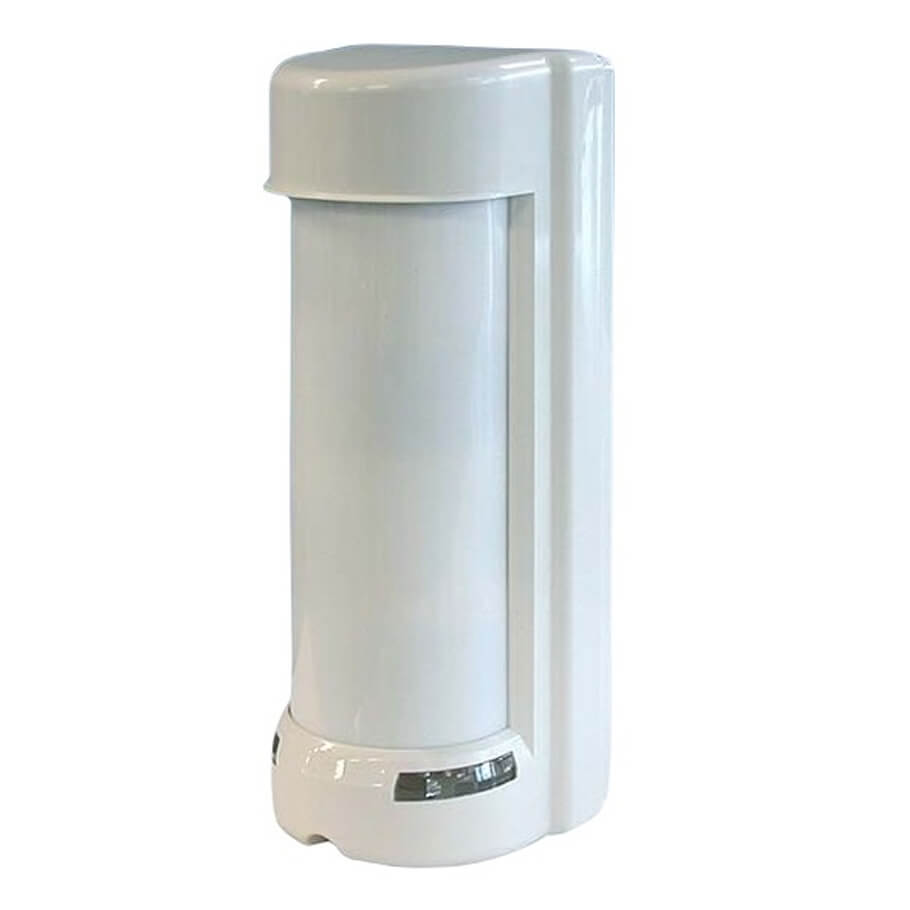

0916 287 068 Đầu báo PIR + Microwave TAKEX MX-12FAMD
Đầu báo PIR + Microwave TAKEX MX-12FAMD
- Horizontal/downward zones and MW require simultaneous detection preventing nuisance alarms caused by small animals and passing vehicles.
- Up to 180° of complete coverage, with independent 2m - 12m adjustable protection distance for left and right sides for maximum installation versatility.
- Choose between:
o individual alarm outputs per 90 degree left and right side
o Or a combined 180 degree output + external output for triggering CCTV or ancillary devices.
- Protected by sophisticated Anti-Masking technology with near-lens awareness, designed to initiate an alarm if the device is compromised.
- Equipped with both front and back tampers to detect interference or attempted theft of the sensor any time of the day or night.
- Durable area masks stored within the device allow the coverage pattern to be customised to specific site requirements.
- By combining multiple settings of the microwave sensor, pulse count and sensitivity adjustment, stable detection performance is achieved against various environments.
Thông số kỹ thuật
|
Mã sản phẩm
|
MX-12FAMD
|
|
|
Detection system
|
Passive infrared and Microwave
|
|
|
Microwave transmit
frequency and power |
24.150 to 24.250GHz 12.7dBm e.i.r.p
|
|
|
Detection area
|
Horizontal detection
Angle: 180°, Detection distance: 12m(40') Horizontal zone: 14 zones Downward zone: 14 zones |
|
| PIR Area adjustment | Detection distance : 2 to 12m(10' to 40') [10 ranges] (by adjusting vertical angle of downward curtain) 9 to 28V DC (non-polarity) |
|
|
Supply voltage
|
left and right adjustment individually possible
|
|
|
Current consumption
|
40mA max.
|
|
|
Alarm output (1)
|
Right+Left
|
Dry contact relay output N.C./N.O. selectable
・Contact capacity: 30V (AC/DC) 0.2A max. (Resistive load) ・Contact operation: Detection time (+2sec.) |
|
Right
|
Dry contact relay output N.C./N.O. selectable
・Contact capacity : 30V (AC/DC) 0.2A max. (Resistive load) ・Contact operation : Detection time (+2sec.) |
|
|
Alarm output (2)
|
Left
|
Dry contact relay output N.C./N.O. selectable
・Contact capacity : 30V (AC/DC) 0.2A max. (Resistive load) ・Contact operation : Detection time (+2sec.) |
|
External Output
|
Dry contact relay output N.O.
・Contact capacity : 30V (AC/DC) 0.2A max. (Resistive load) ・Contact operation : Detection time (+30sec. latch time |
|
|
Trouble output
|
Dry contact relay output N.C.
Contact capacity : 30V (AC/DC) 0.2A max.(Resistive load) (Masking detection / Low supply voltage / Self diagonosis error) |
|
|
Tamper output
|
Dry contact relay output N.C.
Contact capacity : 30V (AC/DC) 0.1A max.(Resistive load) (Cover tamper / Back tamper (when enabled)) |
|
|
Operation LED
|
Red LED
・Warm-up (Blinking) ・Alarm detection (Lights approx.2sec only for Walk test) ・Low supply voltage (Blinking slowly) ・Masking detection (Blinking rapidly) ・Self diagonosis error (Lights continuously) ・Microwave alarm detection (Lights max.2sec only for Walk test) |
|
|
Pulse count
|
1 / 3 times (selectable with DIP switch)
|
|
|
PIR sensitivity adjustment
|
60/80/100/120% (selectable with DIP switch, left and right sensors individually)
|
|
|
Microwave
range adjustment |
Short / Long (selectable with DIP switch, left and right sensors individually)
|
|
|
Functions
|
Anti-masking, Microwave environment, Back tamper, Trouble alarm
Low voltage monitoring, Anti-masking Environmental level |
|
|
Connection
|
Terminals
|
|
|
Ambient temperature
|
-25°C to + 60°C (-13°F to + 140°F)
|
|
|
Mounting position
|
Indoor / Outdoor
|
|
|
Ingress protection
|
IP55 (Wall mount)
|
|
| Weight | 400g | |
| Appearance | Body: resin (white) / Lens: resin (white) | |
- Bảo hành: 12 tháng.
