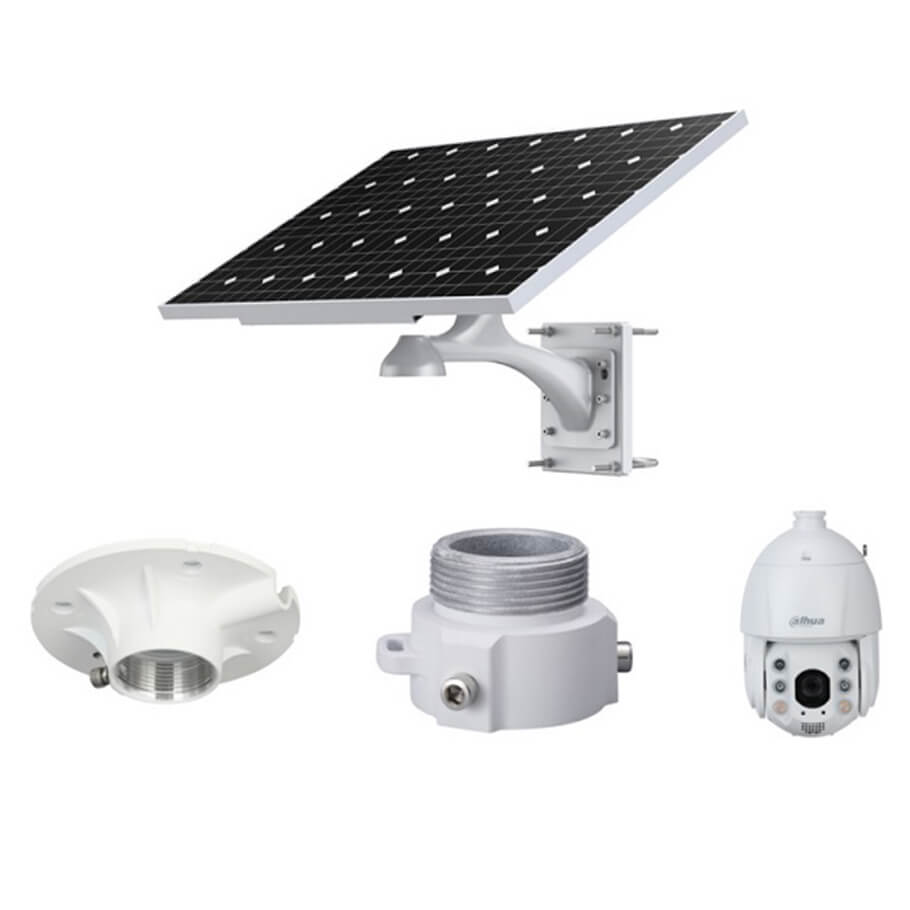

DAHUA KIT/DH-PFM378-B125-CB/DH-SD6C3432XB-HNR-AGQ-PV/DH-PFB301C/PFA111
- Integrated Solar Monitoring System (Without Lithium Battery).
- Integrated Aluminum Die Casting Casing: Compact structure integrated with solar panel, lithium battery pack and charging controller to improve the appearance, installation, and maintenance of the System.
- Solar Power System:
+ Integrated design, easy to install.
+ Pole mount.
+ Angle flexible adjustment of solar panel and camera mount.
+ 125W monocrystalline solar panel.
+ Aluminum alloy frame.
+ Built sturdy to resist storms with sustained winds up to 117 km/h.
+ Remote monitoring available through the mobile app.
+ Maximum Power Point Tracking (MPPT) charging controller.
+ RS-485 communication function.
+ Electric protection.
- 4G Network PTZ Camera:
+ 1/2.8 inch 4Megapixel STARVIS CMOS.
+ 32x optical zoom.
+ Starlight technology.
+ Max. 25/30 fps@1080p.
+ IR distance up to 150m
+ Auto-tracking.
+ Perimeter protection.
+ Face detection.
+ 4G.
+ Sound and light alarm.
+ Low power consumption.
- Monocrystalline Solar Panel: Adopts monocrystalline solar panel to greatly improve optical absorbance efficiency and power generation performance with dusky light.
- Remote Monitoring with APP: With Dahua cameras, it supports real-time remote monitoring of the system operation status and alarm prompts of battery with APP.
- Protection (IP66, Wide Voltage): IP66; TVS 6000V lightning proof; surge protection; voltage transient protection. Wide voltage: The camera allows –10% to +25% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
| Integrated Solar Power System (Without Lithium Battery) | |
| Model | DH-PFM378-B125-CB |
| Solar Panel | |
| Type | Monocrystalline silicon |
| Max. Power | 125 W |
| Solar Cell Efficiency | 21% |
| Max. Mechanical Load | 5400 Pa |
| Controller | |
| Type | MPPT |
| Operating Voltage | 12 VDC |
| Rated Charging Current | 10 A |
| Rated discharge current | 10 A |
| MPPT Tracking Efficiency | ≥ 99% |
| Communication Mode | RS485 |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Rated Charging Power | 130 W |
| Over-discharge Protection Voltage | 11.1 VDC |
| Others | Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load. |
| Port | |
| Power Output | Φ5.5 mm × Φ2.1 mm × 12 mm |
| RS–485 | Red: RS485-A Black: RS485-B |
| Output Port | CSA authorized M15 2-core waterproof connector (connected to lithium battery) |
| General | |
| Main Body Material | Q235 steel/aluminum |
| IP Rating | IP65 |
| Installation | Pole mount, Φ80mm~Φ150mm |
| Adjustable Angle | Solar panel: H: 360°, V: 10°/20°/30°/40°/50° |
| Product Dimensions | 965.0 mm × 910.5 mm × 786.4 mm |
| Weight | 20.1kg |
| Environment | |
| Operating Altitude | < 3000 m (9842.5 ft) |
| Applicable Area | Areas with daily exposure to solar radiation for more than 3.5 hours |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | < 95% (RH) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | < 95% (RH) |
| Certifications | |
| Certifications | CE: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020 FCC: 47 CFR Part 15, Subpart B UKCA: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020 |
| 4 MP 32x Startlight IR WizSense Network PTZ Camera | |
| Model | DH-SD6C3432XB-HNR-AGQ-PV |
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 150 m (492.13 ft) (IR) 80 m (262.47 ft) (white light) |
| Illuminator Number | 4 (IR) 2 (white light) |
| Lens | |
| Focal Length | 4.8 mm–154 mm |
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 55.8°–2.3° V: 31.9°–1.3° D: 63.7°–2.7° |
| Optical Zoom | 32× |
| Focus Control | Auto; Semi-Auto; Manual |
| Close Focus Distance | 0.1m-1.5m |
| Iris Control | Auto |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–160°/s; Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 240°/s; Tilt: 150°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| Smart Event | |
| IVS | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking |
| Intelligence | |
| Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. |
| IVS (Perimeter Protection) | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| Face Detection | Yes |
| People Counting | Yes |
| Auto Tracking | Preset; Pattern; Tour; Scan |
| Video | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p (1–50/60fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 2816 kbps–8192 kbps H.265: 1024 kbps–7936 kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Region of Interest (RoI) | Yes |
| Image Stabilization | EIS |
| Defog | Electronic defog |
| Digital Zoom | 16 × |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| 4G-Wireless Frequency Range | LTE-FDD: B1/3/5/7/8/20 LTE-TDD: Band 38/40 WCDMA: Band 1/5/8 GSM: 850/900/1800 MHz |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS |
| Interoperability | ONVIF (Profile S&G&T); CGI; Dahua SDK; GA/T 1400; SDK; API |
| User/Host | 20 (total bandwidth: 64 MB) |
| Storage | FTP; Micro SD card (256 GB); NAS |
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS; ConfigTool; NVR; Smart Player; Imou; NetSDK |
| Mobile Client | iOS; Android; iPhone; iPad; Windows Phone |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 |
| Port | |
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Two-way Audio | Yes |
| Alarm Linkage | Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email; waking up |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 12 VDC, 4 A (–10% to +25%) |
| Power Consumption | Sleep: ≤ 1 W Basic: 4.0 W (not pulling stream in 4G), 7.4 (pulling stream in 4G) Max.: 27 W (illuminator+heater+PTZ+speaker+pulling stream in 4G) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤ 95% |
| Protection | IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Casing | ADC12 |
| Dimensions | 325.0 mm × Φ202.0 mm |
| Weight | 4.4 kg |
| Ceiling Mount Bracket of PTZ camera | |
| Mode | DH-PFB301C |
| General | |
| Material | Aluminum alloy |
| Dimension (W×H×D) | φ128.8 mm × 35.5 mm |
| Weight | 0.21 kg |
| Load Bearing | 10.0 kg |
| Mount Adapter | |
| Model | PFA111 |
| General | |
| Material | Aluminum |
| Dimension (W×H×D) | Φ60 mm x 49 mm |
| Weight | 0.25 kg |
| Load Bearing | 7.0 kg |
