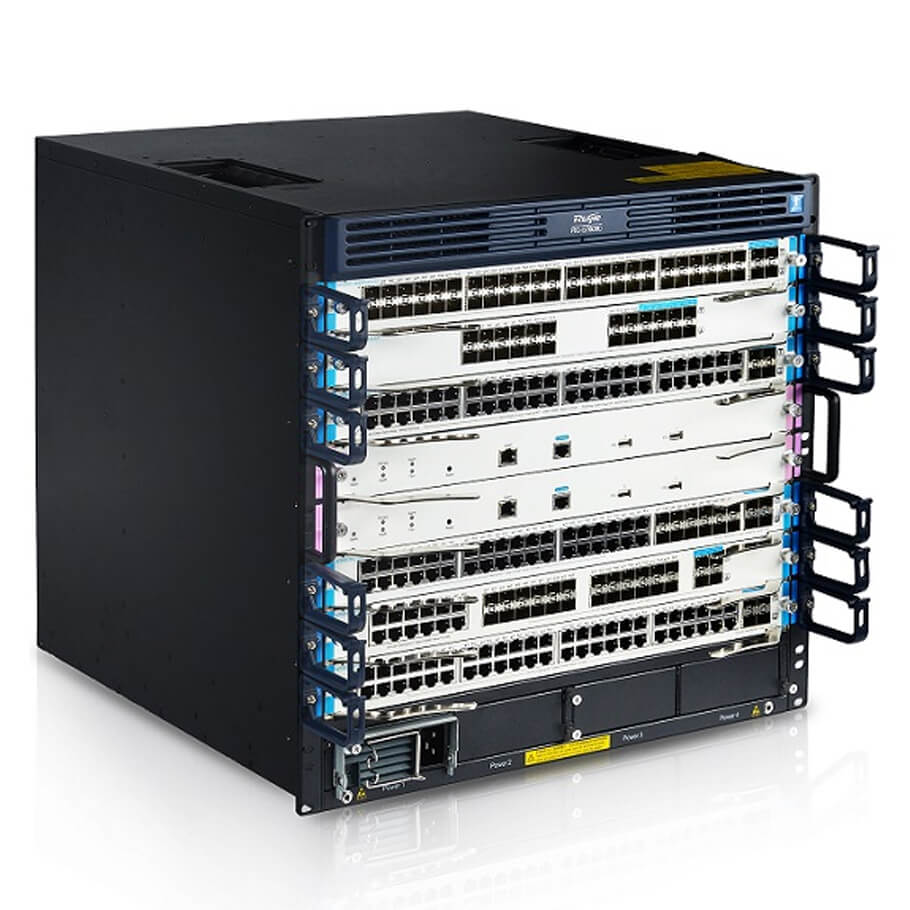

Core Switch RUIJIE RG-S7808C
- Cost-effective Entry-level Chassis Switch
- Superior Performance with up to 88.62Tbps Switching Capacity
- Support Network Virtualization (VSU & VSD) and Advanced Layer 3 Routing (OSPF, BGP)
- Carrier-class Reliability: Control Engine/ Power/ Fan Redundancy, Hot-swappable Components
- Support Large-scale MAC (up to 64K) and ARP Table (up to 20K)
- Support PoE/ PoE+ with Independent PoE Power Supply Module
Thông số kỹ thuật
| Model | RG-S7808C |
| Module Slots | 8 (2 for control engines) |
| Modular Power Slots | 6 (4 for system power; 2 for PoE power) |
| Switching Capacity | 22.25Tbps/88.62Tbps |
| Packet Forwarding Rate | 624Mpps |
| Max. Number of 10GE Ports | Up to 48 |
| PoE | Support |
| ARP Table | Up to 20K |
| MAC Address | Up to 64K |
| Routing Entries | Up to 10K |
| Multicast Entries (IPv4/IPv6) | Up to 8K/4K |
| ACL Entries | Up to 3,500 |
| VLAN | Up to 4K |
| QinQ | Basic QinQ, Flexible QinQ |
| Link Aggregation | AP, LACP |
| Port Mirroring | Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, SPAN, RSPAN, VLAN mirroring |
| Spanning Tree Protocols | Support STP, RSTP and MSTP |
| DHCP | Support DHCP relay, DHCP snooping, DHCP server, DHCP client |
| Multiple Spanning Tree (MST) Instances | 64 (not include default 0) |
| Maximum Aggregation Port (AP) | Up to 2,048 |
| Virtual Routing and Forwarding (VRF) Instances | Up to 1,000 |
| VSU (Virtual Switch Unit) | Up to 2 stack members |
| VSD (Virtual Switch Device) | Up to 4 VSD units |
| L2 Features | Jumbo Frame, 802.1Q, STP, RSTP, MSTP, Super VLAN, GVRP, QinQ, Flexible QinQ, LLDP, ERPS (G.8032) |
| Layer 2 Protocols | IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP |
| Layer 3 Features | ARP, IPv4/v6, PBR v4/v6 |
| Layer 3 Protocols (IPv4) | Ping, Traceroute, Equal-Cost Multi-Path Routing (ECMP) |
| IPv4 Features | Static routing, RIP, OSPF, BGP4, ISIS, VRRP, Equal-cost routing, Policy-based routing, GRE tunnel |
| IPv6 Features | Static routing OSPFv3, BGP4+, IS-ISv6, MLD, VRRPv3, Equal-cost routing Policy-based routing, Manual tunnel, Auto tunnel, ISATAP tunnel, GRE tunnel |
| Basic IPv6 Protocols | DNS client v6, DHCP relay v6, DHCP v6 server, Telnet v6, TFTP client v6, FTP v6, NTP client v6, NTP server v6 |
| Routing Protocols | RIP, RIPng, OSPFv2/v3, BGP4, BGP4+, IS-ISv4/v6, Routing Policy |
| IPv6 Tunnel Features | 6over4 Manual Tunnel, 6to4 Auto Tunnel, Manual Tunnel, Auto Tunnel, ISATAP Tunnel, IPv4 over IPv6 Tunnel, IPv6 over IPv4 Tunnel, GRE Tunnel(4 over 6), GRE Tunnel(6 over 4) |
| Multicast | IGMP v1/v2/v3, IGMP snooping, IGMP proxy, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD, Multicast static routing |
| G.8032 | Support |
| ACE Capacity | Up to 3,500 |
| ACL | Standard/Extended/Expert ACL; ACL 80; IPv6 ACL |
| QoS | 802.1p, Queue scheduling mechanisms (SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR), RED/WRED, Input/output port-based speed limit |
| IPv6 ACL | Support |
| Reliability | Control engine, power supply and fan: 1+1 redundancy; Hot-swappable components; Hot patch and online patch upgrade; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing |
| EEE Format | Support EEE (802.3az) |
| Security | NFPP (Network Foundation Protection Policy), CPP (CPU Protection), DAI, Port Security, IP Source Guard, 802.1x, Portal authentication, RADIUS and TACACS+ user login authentication, uRPF, Account privileges and password security policy, Unknown multicasts are not delivered to CPU and support unknown unicasts suppression, Support SSHv2 to provide a secure and encrypted channel for user login |
| Manageability | Console/AUX Modem/Telnet/SSH2.0 command line configuration; FTP, TFTP, Xmodem file upload/download management; SNMP V1/V2c/V3; RMON; NTP clock; Fault alarm and self-recovery; System log; sFlow |
| Hot Patch | Support |
| Smart Temperature Control | Fan speed auto-adjustment; Fan malfunction alerts; Fan status check |
| Smart Power Supply | Support power control and management |
| Other Protocols | DHCP client, DHCP relay, DHCP server, ARP proxy, Syslog |
| Dimensions (W x D x H) | 442mm ×595mm ×439mm, 10U |
| Rack Height | 10RU |
| Weight | 32.35kg |
| MTBF | 312K hours |
| Emission Standards | EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 |
| Power Consumption | <176W |
| PoE Power Consumption | <800W |
| Temperature | Operating temperature: 0ºC to 50ºC Storage temperature: -40ºC to 70ºC |
| Humidity | Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH |
| Operating Altitude | 3,000m to 4,000m |
- Bảo hành: 3 năm.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
