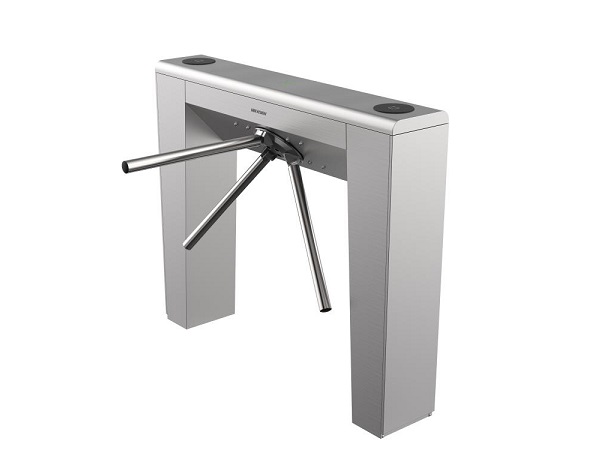

Cổng xoay 3 càng trong nhà HIKVISION DS-K3G301LX-R
- MCBF: ≥ 2.000.000 lần.
- Exit button: Main 1, Sub 1.
- Fire alarm input: 1.
- Chiều rộng làn: 550 mm.
- Chất liệu: Thép SUS304.
- Thời gian mở cổng: 5 ~ 60 giây.
- Hỗ trợ kết nối với các thiết bị kiểm soát ra vào (vân tay, thẻ, khuôn mặt,...).
- Nguồn điện: 100 to 120 VAC~/200 to 240 VAC~, 50/60 Hz, 0.5A to 1A.
- Adapter: 100 to 240 VAC~, 50/60 Hz, 0.5A to 1A.
Thông số kỹ thuật
| System | |
| MCBF | ≥ 2 million times |
| Interface | |
| Exit button | Main: 1 Sub: 1 |
| Fire alarm input | 1 |
| General | |
| Throughput | 25 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method. |
| Lane width | 550 mm |
| Pedestal material | SUS304 stainless steel 1.0 mm (mostly) |
| Indicator | Lane status indicator except Pg models. |
| Power consumption | Standby: 25 W Working: 35 W Peak: 45 W |
| Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working humidity | 0% to 95% (No condensing) |
| Protective level | IPX4 |
| Dimensions | Without package: 1200 mm × 233 mm × 1000 mm With package: 1350 mm × 410 mm × 1120 mm |
| Weight | Net: 30.58 kg (. lb) Gross: 37.8 kg (. lb) |
| Approval | CE/CB/RoHS/REACH/WEEE |
| Power supply method | Power supply: 100 to 120 VAC~ / 200 to 240 VAC~, 50/60 Hz, 0.5 A to 1 A Adapter: 100 to 240 VAC~, 50/60 Hz, 0.5 A to 1 A |
| Door open duration | 5 to 60 sec |
| Power supply for face recognition module | Support |
- Bảo hành: 24 tháng.
