Công tắc từ TAKEX AWS-21

Trang Chủ >> Báo cháy-Báo trộm >> Báo động TAKEX >> Công tắc từ TAKEX AWS-21
Mã số:13309389

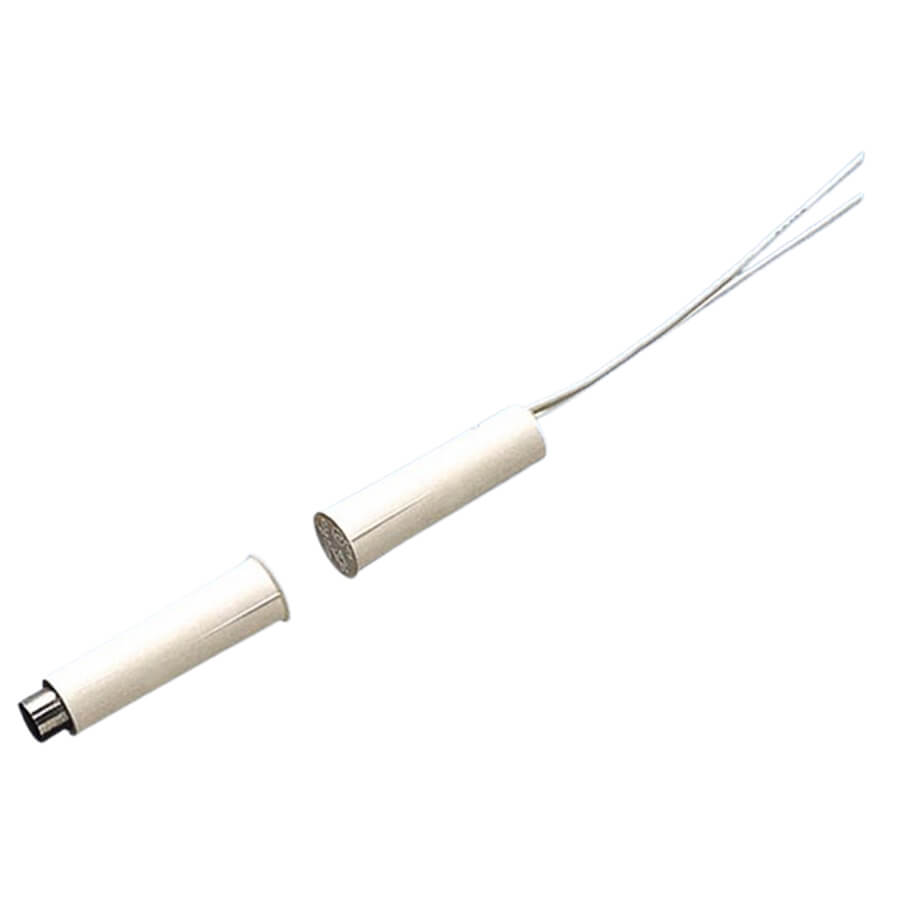

Công tắc từ TAKEX AWS-21

Công tắc từ TAKEX AWS-21

- Embedded magnet switch that demonstrates its power when you want to install it in an invisible place.

- Since the magnetic force is strong and the set distance is long, it is suitable for doors with a wide distance from the frame.

- Do not use the product directly attached to a magnetic material.

Specifications

Model AWS-21
Operating distance 30mm or less (between magnet and switch)
Contact operation Non-voltage contact (b contact) When magnet is close: Closed when magnet is separated: Open
Contact rating Contact capacity: AC / DC30V, 0.1A (resistive load)
Contact resistance: 150mΩ or less
Opening and closing life: 1 million times (rated load)
Installation method Indoor: Embedded installation
Wiring connection Lead wire connection type
Mass Approx. 16 g (total magnet and switch)
Appearance Resin (gray)

- Bảo hành: 12 tháng.



Giá: 234.000 VND (Đã bao gồm VAT)

Số lượng :

Thêm vào giỏ Mua ngay
