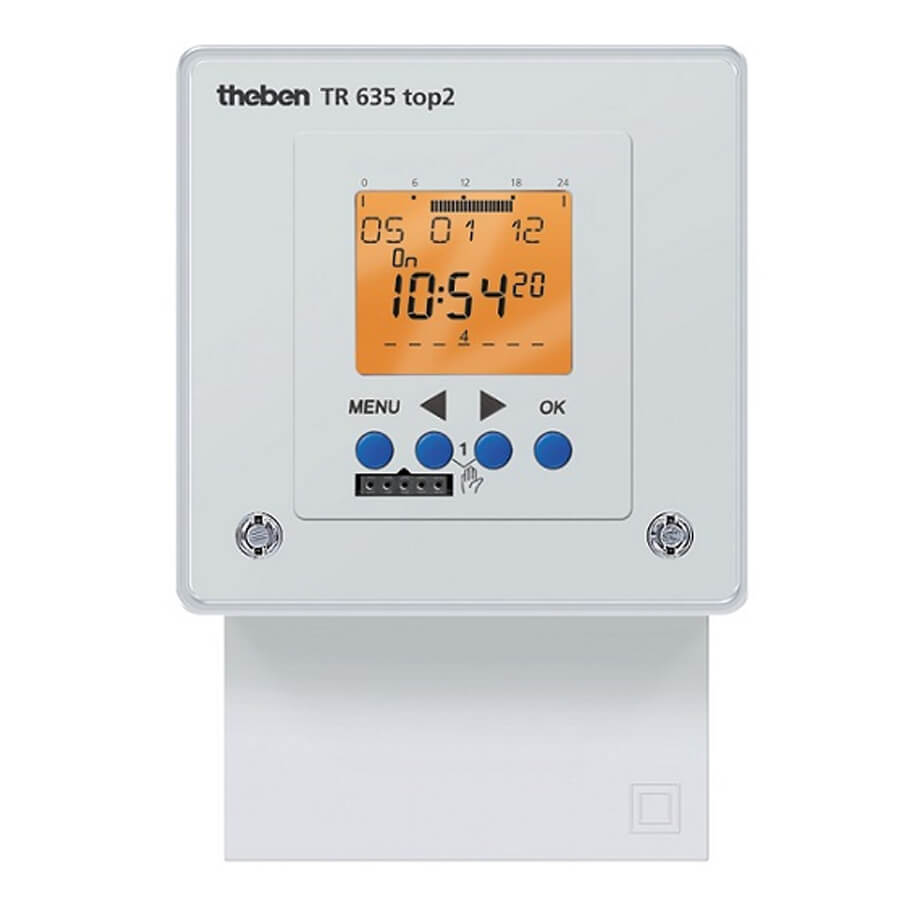

0916 287 068 Công tắc hẹn giờ kỹ thuật số THEBEN TR 635 top2
Công tắc hẹn giờ kỹ thuật số THEBEN TR 635 top2
- Digital time switch with weekly program
- 1 channel
- Text-based operator guidance in the display
- Preset date and time
- fully operable without mains connection
- 84 memory locations
- Interface for OBELISK top2 memory card (PC programming)
- 2. insertable switching program
- Copying programs
- Storing programs
- 10 year power reserve (lithium battery)
- ON-OFF switching times
- Pulse program
- Cycle program
- Switching preselection
- Permanent ON/OFF switching
- Count-down timer
- Integrated hour counter
- Reset option
- Service function for monitoring maintenance intervals
- Holiday program
- 2 random programs
- Back lighting (can be turned off)
- PIN coding
- Automatic summer/winter time changeover
- can be deactivated
- Date rule options are already stored for Europe, the USA and other countries
- own date rule options or changeover around set dates are available
Specifications
| Operating voltage | 230 – 240 V AC |
| Frequency | 50 – 60 Hz |
| Installation type | Front panel installation/wall installation |
| Type of contact | Changeover contact |
| Switching output | Phase-independent |
| Opening width | < 3 mm (µ) |
| Program | Weekly program |
| Program functions | ON-OFF, Pulse, Cycle |
| Number of channels | 1 |
| Number of memory locations | 84 |
| Power reserve | 10 years |
| Switching capacity at 250 V AC, cos φ = 1 | 16A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 10A |
| Incandescent/halogen lamp load | 2300 W |
| Energy saving lamps | 90 W |
| LED lamp < 2 W | 20 W |
| LED lamp 2-8 W | 50 W |
| Fluorescent lamp load (conventional) not corrected | 1000 VA |
| Fluorescent lamp load (conventional) series-corrected | 1000 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 400 VA 42 µF |
| Shortest switching times | 1 s |
| Time accuracy at 25 °C | ≤ ± 0.5 s/day (quartz) at 25 °C |
| Time basis | Quartz |
| Stand-by consumption | ~0.9 W |
| Type of connection | Screw terminals |
| Display | LCD-Anzeige mit Textzeile |
| Keyboards | 4 touch buttons, 1 reset button |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Voltage | 230 V AC |
| Ambient temperature | -30°C ... 55°C |
- Bảo hành: 12 tháng.
