Mã số:11144095

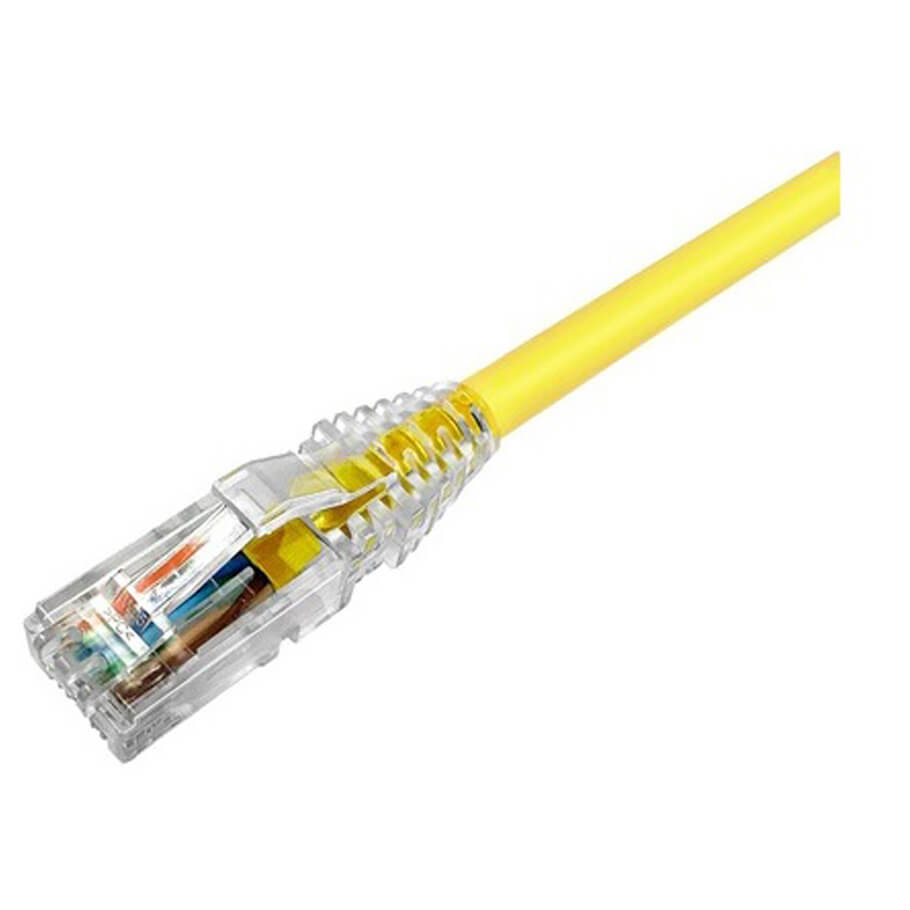

Cáp nhảy-Patch cord COMMSCOPE CAT5E U/UTP 1.2 mét (CO155D2-09F004)

- Part number: CO155D2-09F004

- Category 5e U/UTP Patch Cord, RJ45 to RJ45, 4-pair, Non-Plenum, 4FT, Yellow.

Đặc tính kỹ thuật

General
ANSI/TIA Category	5e
Cable Type	U/UTP (unshielded)
Conductor Type	Stranded
Interface, Connector A	RJ45 plug
Interface Feature, connector A	Standard
Interface, Connector B	RJ45 plug
Interface Feature, connector B	Standard
Pairs, quantity	4
Transmission Standards	IEEE 802.3bt Type 4
Wiring	T568B
Dimensions
Cable Assembly Length Range	1.2m
Cable Assembly Length Range	4ft
Diameter Over Jacket	5.36 mm
Compatible Conductor Gauge, stranded	24 AWG
Electrical
dc Resistance, maximum	0.3 ohm
Safety Voltage Rating	300 V
Material
Contact Plating Material	Gold in remating area \| Nickel underplating
Material Type	Phosphor Bronze \| Polycarbonate
Mechanical
Plug Insertion Life, minimum	750 times
Plug Retention Force, minimum	133 N \| 29.9 lbf
Environmental
Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Environmental Space	Non-plenum
Flammability Rating	CM
Safety Standard	ETL \| cETL

Giá: 80.000 VND
