0916 287 068 Cáp mạng treo ngoài trời Dintek CAT.6 UTP 305m (1101-04057)
Trang Chủ >>
Cáp mạng và phụ kiện >> Cáp-phụ kiện Dintek >> Cáp mạng treo ngoài trời Dintek CAT.6 UTP 305m (1101-04057)

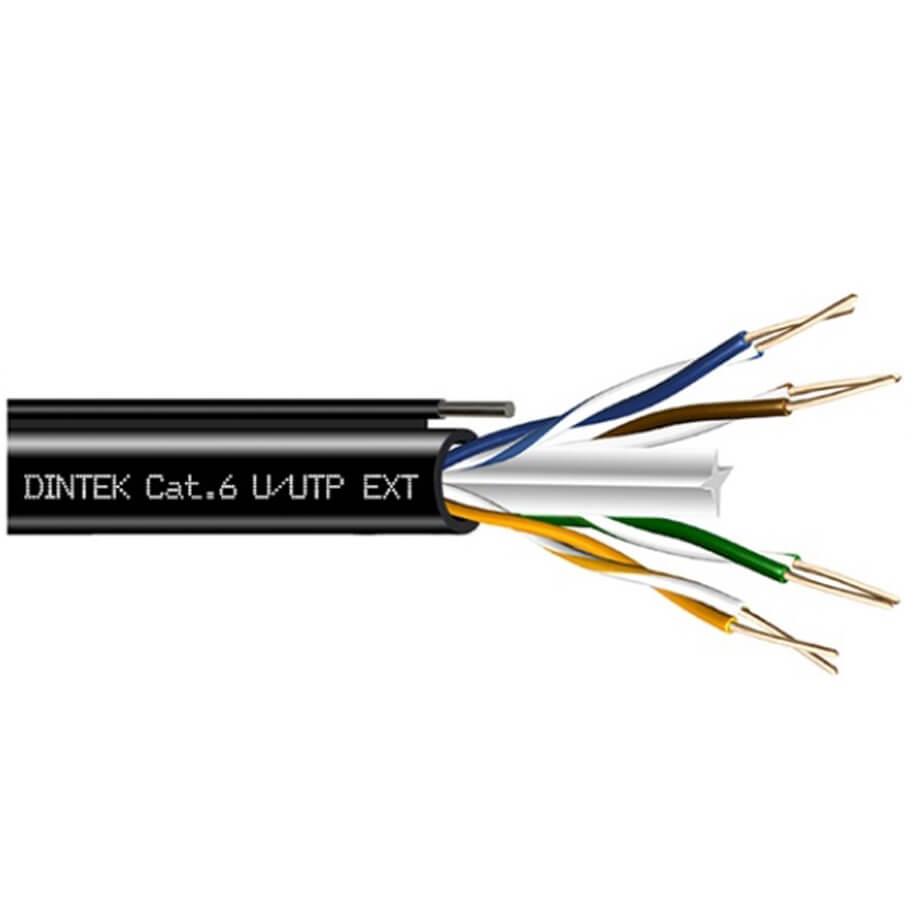

.jpg "Cáp mạng treo ngoài trời Dintek CAT.6 UTP 305m (1101-04057)")
Mã số:11034324
Cáp mạng treo ngoài trời Dintek CAT.6 UTP 305m (1101-04057)
Features
- Capable of handling the latest versions of Power over Ethernet
- Conductor size for PowerPRO TM Cat.6 set at 23AWG
- Telecommunications cable 4 pairs PE sheathed
- Successful transmission at 250Mhz up to 100m length
- 305m EZI-Pull box for free installation
- Self-supporting system 1.2mm galvanized steel wire
Application
- Industrial and external cabling / overhead backbone cabling
- 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
- 100VG-AnyLAN / Broadband Video / Voice / T1 / ISDN
- 250Mhz transmission with length up to 100m
Specifications
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 23AWG |
| Braided Type | Hard core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | HDPE |
| Diameter | 1.0mm ± 0.05mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Wrap foil in pairs | None |
| Jacket | |
| Material | Polyethylene |
| Separator | Non-metallic cross separator (backbone) |
| Diameter | 6.0mm ± 0.5mm / 2.8mm ± 0.5mm |
| Color | Black |
| CPR Reaction To Fire | Fca: according to EN 13501-6 |
| Foil Shield | None |
| Braided Shield | None |
| Self-help system | 1.2mm galvanized steel wire (17AWG) |
| Jacket Physical Ranges | |
| Min. Bending Radius | No load 4 x Outer diameter / Under load 8 x Outer diameter |
| Maximum Tensile Strength | 110N |
| Installation Temperature | 0°C to +50°C |
| Operating Temperature | -20°C to +75°C |
| Electrical | |
| Conductor Resistance | Max. 9.38Ω/100m at 20°C |
| DC Resistance Unbalance | 2% max at 20°C |
| Unbalanced capacitance between wire pair and ground | Up to 160 pF/km at 1 kHz |
| Dielectric strength of insulation | 1 KV in 1 minute |
| Insulation Resistance Test (500V) | Min. 5000 MΩ/Km at 20°C |
| Mutual Capacitance | Max. 5.6 nF/100m at 1 kHz |
| Impedance 1 ~ 100Mhz | 100Ω ± 15% |
| Nominal Velocity Of Propagation | 67% |
Giá: 5.106.000 VND
(Đã bao gồm VAT)
