0916 287 068 Cáp mạng treo ngoài trời Dintek CAT.5E U/UTP (1101-03037)
Trang Chủ >>
Cáp mạng và phụ kiện >> Cáp-phụ kiện Dintek >> Cáp mạng treo ngoài trời Dintek CAT.5E U/UTP (1101-03037)
.jpg "Cáp mạng treo ngoài trời Dintek CAT.5E U/UTP (1101-03037)")
Mã số:11030665

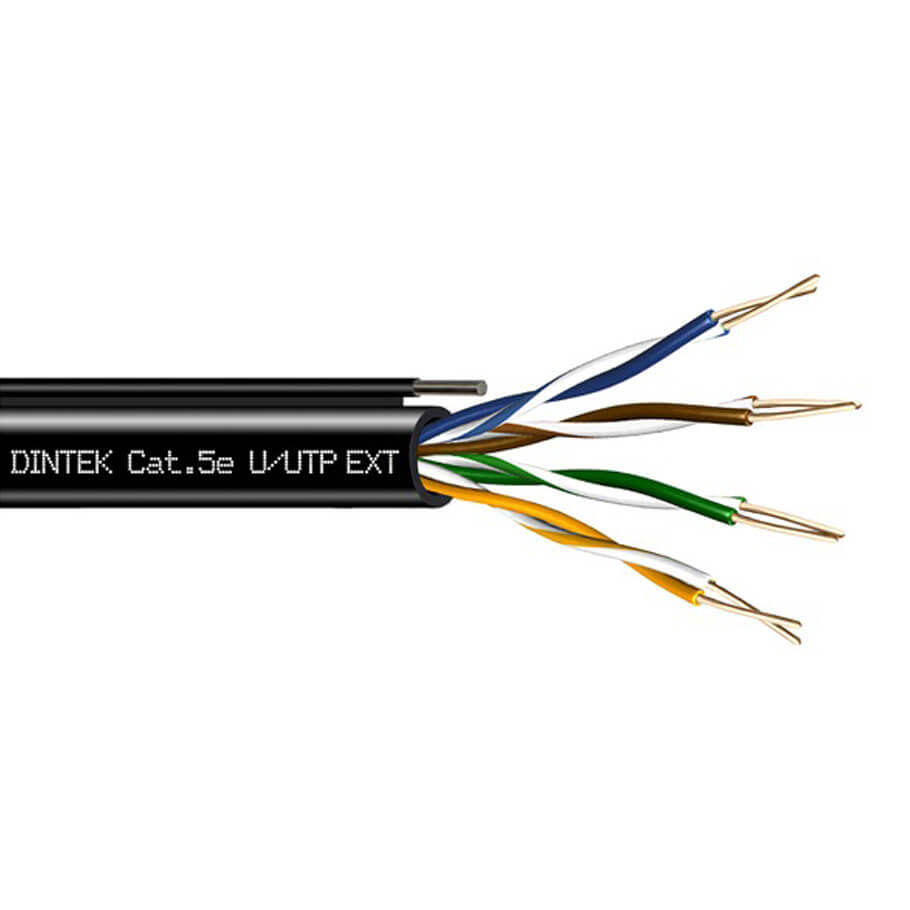

Cáp mạng treo ngoài trời Dintek CAT.5E U/UTP (1101-03037)
- Capable of handling the latest versions of Power over Ethernet
- Conductor sizes for PowerPRO Cat.5e set at 24AWG
- PE jacketed 4 pair telecommunications cable
- Successful transmission at 100Mhz up to a length of 100m
- EZI-Pull 305m Reel for trouble free installation
- 1.2mm galvanized steel wire self support system
Application
- Industrial and exterior link/backbone aerial cabling
- 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet
- 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet
- 100VG-AnyLAN / Broadband Video / Voice / T1 / ISDN
- 100 Megabit (100Mhz) Transmission up to length of 100Mtrs
Specifications
| Conductor | |
| Material | Pure Annealed Copper |
| Wire Size | 24AWG |
| Strand Type | Solid Core |
| No. Of Pairs | 4P |
| Insulation | |
| Material | HDPE |
| Thickness | 0.245mm |
| Diameter | 0.90mm ± 0.05mm |
| Colors | Blue/White | Orange/White | Green/White | Brown/White |
| Pair Foil Wrap | None |
| Jacket | |
| Material | Polyethylene |
| Diameter Cable / Aerial | 5.3mm ± 0.5mm / 2.8mm ± 0.5mm |
| Color | Black |
| CPR Reaction To Fire | Fca: according to EN 13501-6 |
| Foil Shield | None |
| Braided Shield | None |
| Self Support System | Solid Galvanized steel wire 1.2mm (17AWG) |
| Electrical | |
| Conductor Resistance | Max. 9.38Ω/100m at 20°C |
| DC Resistance Unbalance | Max. 2% at 20°C |
| Pair-to-Ground Capacitance Unbalance | Max. 160 pF/m at 1 kHz |
| Dielectric Strength of Insulation | 1KV for 1 min |
| Insulation Resistance Test (500V) | Min. 5000 MΩ/Km at 20°C |
| Mutual Capacitance | Max. 5.6 nF/100m at 1 kHz |
| Impedance 1 ~ 100Mhz | 100Ω ± 15% |
| Nominal Velocity Of Propagation | 67% |
Giá: 4.335.500 VND
(Đã bao gồm VAT)
