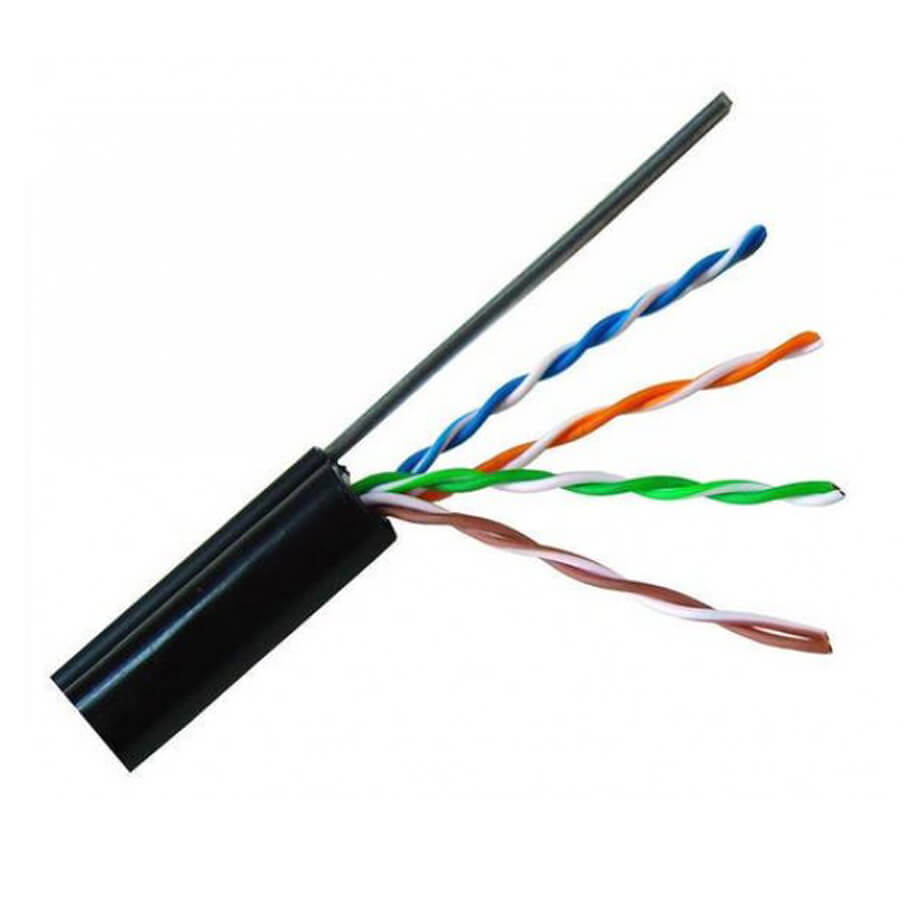

Cáp mạng outdoor Dintek CAT.5E UTP (1101-03011A hoặc 1101-03026)

Cáp mạng outdoor Dintek CAT.5E UTP (1101-03011A hoặc 1101-03026)

- Part number: 1101-03011A hoặc 1101-03026

- Cáp mạng CAT.5E UTP 4-pairs dùng ngoài trời, có dây gia cường để treo, móc, 305 mét/cuộn.

- Outdoor cat.5e 4 pair UTP solid twisted pair cable.

Cable Data

- Twisted pair color code:

   + Pair 1> blue, white/blue ring;

   + Pair 2> orange, white/orange ring;

   + Pair 3> green, white/green ring;

   + Pair 4> brown, white/brown ring.

- Conductor: 24AWG (1x0.54 ± 0.007mm) solid Annealed copper wire

- Insulation material: HDPE

- Diameter of dielectric core: 1.03±0.05mm

- Insulation thickness: min AVG 0.245mm

- Number of twist pairs: 4 pairs

- Assembly: 4 pairs of dielectric core arranged in accordance with the structure figure.

- Waterblocking: Gel Filled Compound

- Material of jacket: PE

- Thickness of jacket: AVG 0.6 mm

- Nominal O.D.: Approx. 6.0 mm

Electrical Characteristics

- Impedance: 100 Ohm  15%

- D.C.R (Max.) : 93.8 Ohm/100m at 20°C

- D.C.R. Unbalance (Max.) : 5% MAX./100m

- Temperature Rating : -40°C to 80°C

- Dielectric strength : DC 500V / 1min or AC 350V / 1min (Between wire and ground)

- Insulation Resistance: 1500 MOhm –Km  DC  500V (Between wire and ground)

Applications

- Voice

- ISDN

- 10Base T(IEEE 802.3)

- Fast Ethernet(IEEE802.3)

- 100Vg-AnyLAN(IEEE 802.12)

- Token Ring(IEEE 802.5)

- TP-PMD(ANSI X3T9.5)

- 100Base-T Ethernet(IEEE 802.3u)

- 155/622 Mbps ATM

- 1000Base-T

- 550 MHz Broadband video

Standards

- UL, ETL Verifi ed

- ANSI/TIA-568-C.2

- ISO/IEC 11801

- EN 50173
