Cáp mạng Dintek CAT.5E S-FTP (1105-03001)

Cáp mạng Dintek CAT.5E S-FTP (1105-03001)

Part Number: 1105-03001

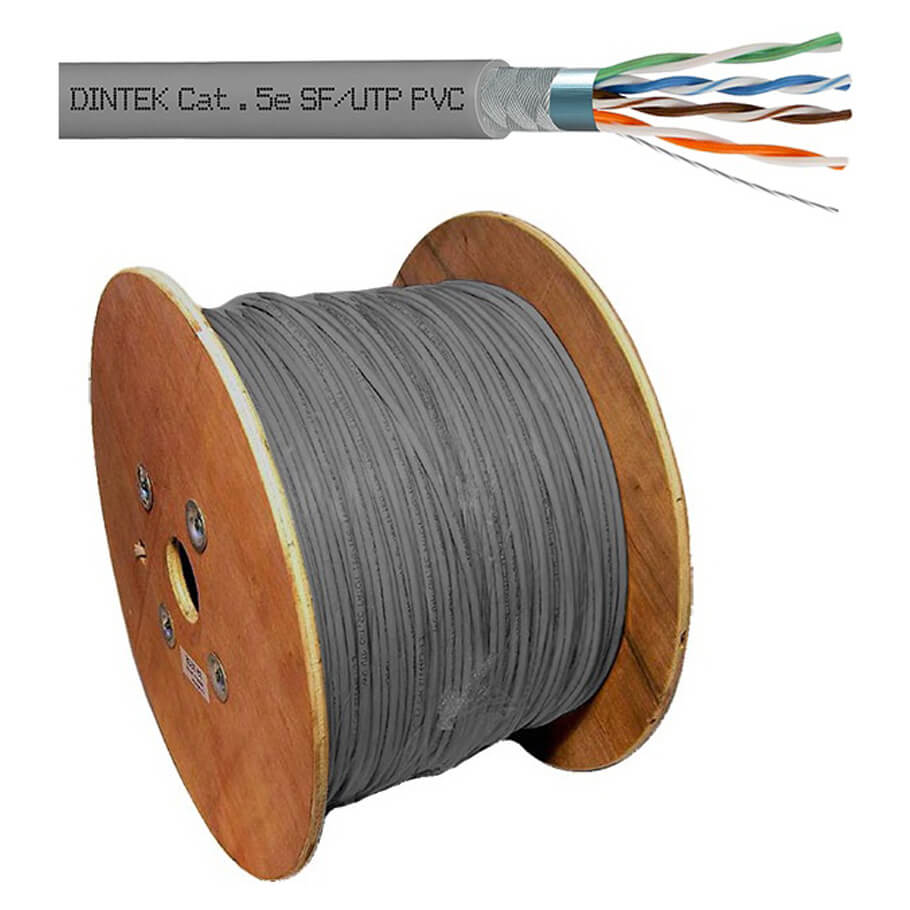

-  Cáp mạng CAT.5E S-FTP Dintek 4 đôi, bọc nhôm chống nhiễu cho 4 đôi cáp và bọc lưới đồng ở ngoài, 305m/cuộn.

Application

- Voice

- T1

- ISDN

- 10Base T(IEEE 802.3)

- Fast Ethernet(IEEE802.3u)

- 100Vg-AnyLAN(IEEE 802.12)

- Token Ring(IEEE 802.5)

- TP-PMD(ANSI X3T9.5)

- 100Base-T Ethernet (IEEE 802.5)

- 155/622Mbps ATM

- 1000Base-T

- 550MHz Broadband video

Industry Standard

- UL, ETL Verified

- TIA/EIA 568B.2

- ISO/IEC 11801

- EN 50173

Cable Data

- No. of Pairs: 4

- Jacket Color: Gray

- Insulation Thickness: 0.2~0.3mm

- Nom.O.D.: 6.2±0.2mm

- Flame Rating: CM

- Package: Reel, 305m(1,000ft)/ box

Product  Electrical Characteristics

- Impedance: 100±15 ohms

- DC Resistance, max. ohms/100m: 9.38

- DC Resistance, max. Unbalance of a pair: 5%max

- Capacitance Unbalance(Pair to Ground):

   + 330pf/ 100m max;

   + Propagation Delay Skew: 45nS/100m max.
