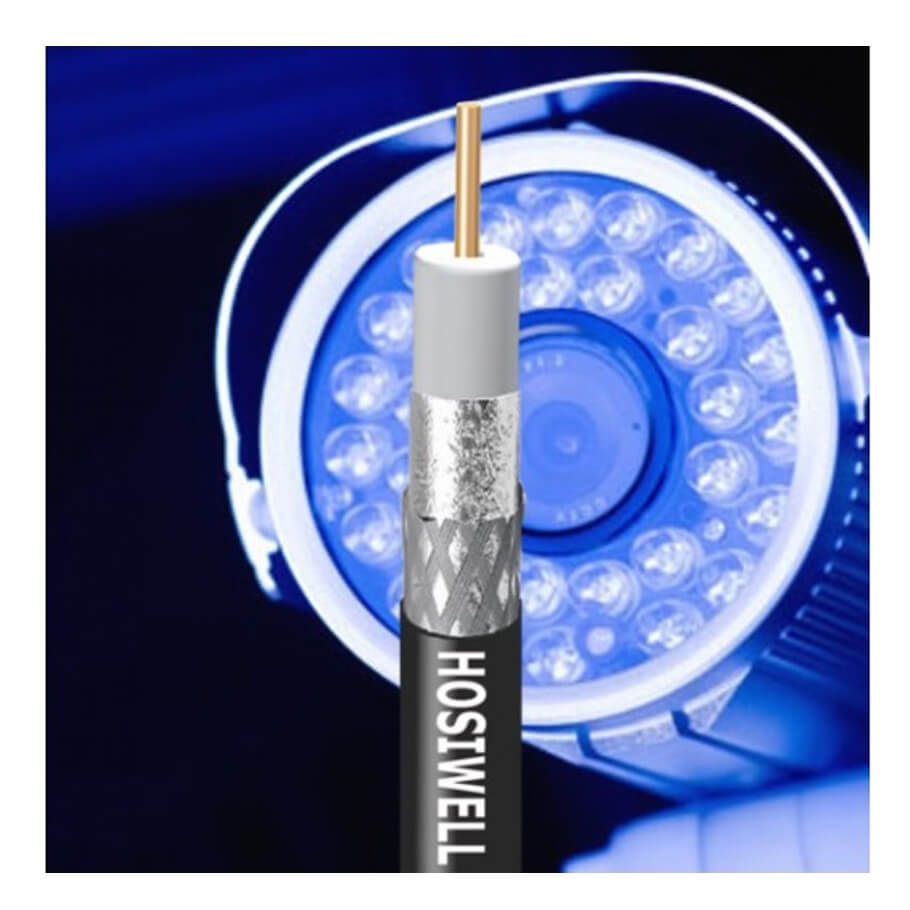

Cáp đồng trục RG6 HOSIWELL D-RG6-S60-E

Cáp đồng trục RG6 HOSIWELL D-RG6-S60-E

Part Number: D-RG6-S60-E

- Cáp Hosiwell đồng trục RG 6, lõi thép mạ đồng.

- Shield 1: 100%, Shield 2: 60%.

- Lõi dây: 1 Core x 18 AWG.

- Màu sắc: Đen.

Specifications

- Conductor: Copper Clad Steel

- Insulation: Gas Expanded Polyethylene

- Shielding (Coverage 100%): Aluminum-Polyprorylene-Aluminum Overlap boned.

- Drain Wire: Aluminum Braid

- Outer Jacket, Color: PVC, Black

- Center Conductor Diameter: 1.02 mm

- Outer Jacket thickness: 0.77 mm

- Insulation Thickness: 4.57 mm

- Outer Jacket Diameter: 6.91 mm

- Braid Wire Diameter: 0.16 mm

- Max. Recommended Pulling Tension: 470 N

- No. of Braid Wire: 80

- Min. Bending Radius Minor Axis: 22.85 mm

- Braid Wire Coverage: 60%

- Operation Temperature: -20°C to 75°C

- Package: 305m/drum

- Sản xuất tại Thái Lan.
