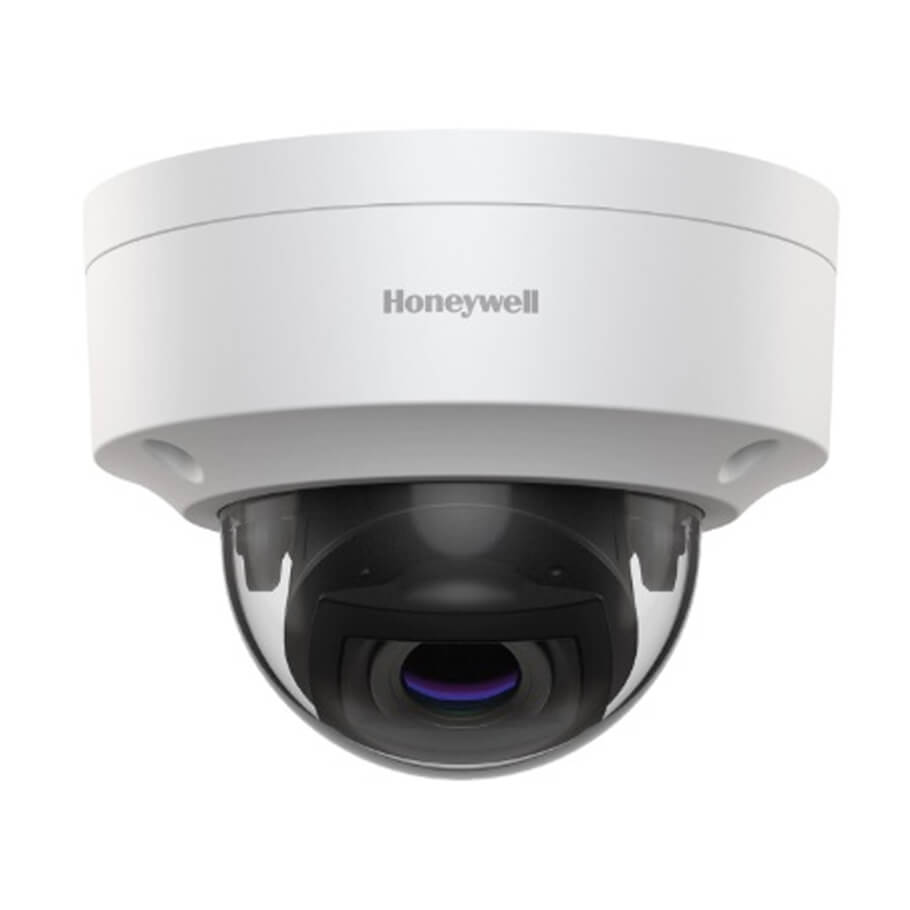

Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC30W45R2

Trang Chủ >> Camera quan sát >> Camera IP HONEYWELL >> Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC30W45R2
Mã số:02896671
Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC30W45R2

Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC30W45R2

- Cảm biến hình ảnh: 1/2.7-inch Progressive CMOS.

- Độ phân giải: 5.0 Megapixel.

- Ống kính: 2.8-12mm MFZ, F1.4-2.8mm.

- Tốc độ khung hình: Lên đến 30fps.

- Độ nhạy sáng tối thiểu: 0.035 lux (colour)/0 lux (B/W) @ F1.4 (with IR LEDs on).

- Hỗ trợ khe cắm thẻ nhớ Micro SD, Micro SDHC, Micro SDXC up to 256GB.

- Tầm quan sát hồng ngoại: 30 mét.

- Chuẩn nén hình ảnh: H.265/H.264/Smart Codec/MJPEG.

- Tiêu chuẩn chống bụi và nước: IP66 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Hỗ trợ chức năng cấp nguồn qua mạng PoE.

- Nguồn điện: 12 VDC.

Đặc tính kỹ thuật

Model  HC30W45R2
OPERATIONAL
Video Standard NTSC/PAL
Scanning System Progressive
Image Sensor 1/2.7-inch Progressive CMOS
Number Of Pixels (H × V) 2560(H) x 1920(V)
Minimum Illumination 0.035lux color @ F1.4, 0 lux B/W with IR LEDs on @ F1.4
S/N Ratio > 55 dB
Electronic Shutter Speed 1/5 ~ 1/32,000
IR Distance Distance up to 30m (98ft)
IR Light Control Smart IR (Auto/Manual)/OFF
IR Light Number 2
Day/Night Auto/Day/Night/Schedule
Backlight Compensation WDR, HLC
White Balance White Balance
Gain Control 0-100%
Wide Dynamic Range 120dB
Noise Reduction 3D DNR
Privacy Masking Off / On (5 Areas)
Motion Detection Motion detection/Intrusion detection/ People detection
Tampering Detection Tampering Detection/Image too dark detection/Image too bright detection/ Image too blurry detection
Region Of Interest Support
Lens 2.8mm~12mm, MFZ, F1.4~F2.8
Angle Of View H: 88°-30°, V: 65°-23° @5MP
H: 93°-32°, V: 51°-18° @4MP
VIDEO
Video Compression H.265/H.264/Smart Codec/MJPEG
Resolution 2560x1920/2048x1536/1600x1200/1280x960/800x600/640x480
Frame Rate Main Stream: 5M/4M (1 ~ 25/30fps);
*Up to 30fps @5M under H.265 only
Sub Stream: 800x600 (1 ~ 25/30fps);
Third Stream: VGA (1 ~ 25/30fps)
Bit Rate Control Constrained bit rate/Fixed quality
Bit Rate 20K ~ 40Mbps
NETWORK
Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)
Supported Web Browsers Chrome 71+, Internet Explorer 11.0+
Supported OS Microsoft Windows 7/10
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Interoperability ONVIF Profile G/S
Maximum Users Access 10 Users
Security User account and password protection, HTTPS, IP Filter,Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance
Event Event notification using HTTP, SMTP, NAS server and MicroSD card
File upload via HTTP, SMTP, NAS server and MicroSD card
Micro SD  Micro SD/SDHC/SDXC card slot (256GB)
ELECTRICAL
Power Supply DC12V, PoE (IEEE 802.3af) (Class 0)
Power Consumption MAX 12.95W
MECHANICAL
Dimensions Ø133.3mm x 99.8mm (Ø5.2-inch x3.93-inch)
Product Weight 0.76kg
Package Weight 1.1kg
Material Die-casting aluminum housing with coating
Construction Color RAL 120-1 (Lyric White)
ENVIRONMENTAL
Operating Temperature Starting: -10°C ~ 60°C (14°F ~ 140°F)
Working: -30°C ~ 60°C (-22°F ~ 140°F)
Relative Humidity Less than 90%, non-condensing
Ingress Protection  IP66
Vandal Resistance IK10
REGULATORY
Emissions FCC PART 15B, EN 55032, EN61000-6-3
Immunity EN 50130-4
Safety UL 62368-1, EN 62368-1
ROHS EN 50581

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.

Giá: 8.659.500 VND
