0916 287 068 Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD9369
Trang Chủ >>
Camera quan sát >> Camera IP Vivotek >> Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD9369
Mã số:02023720

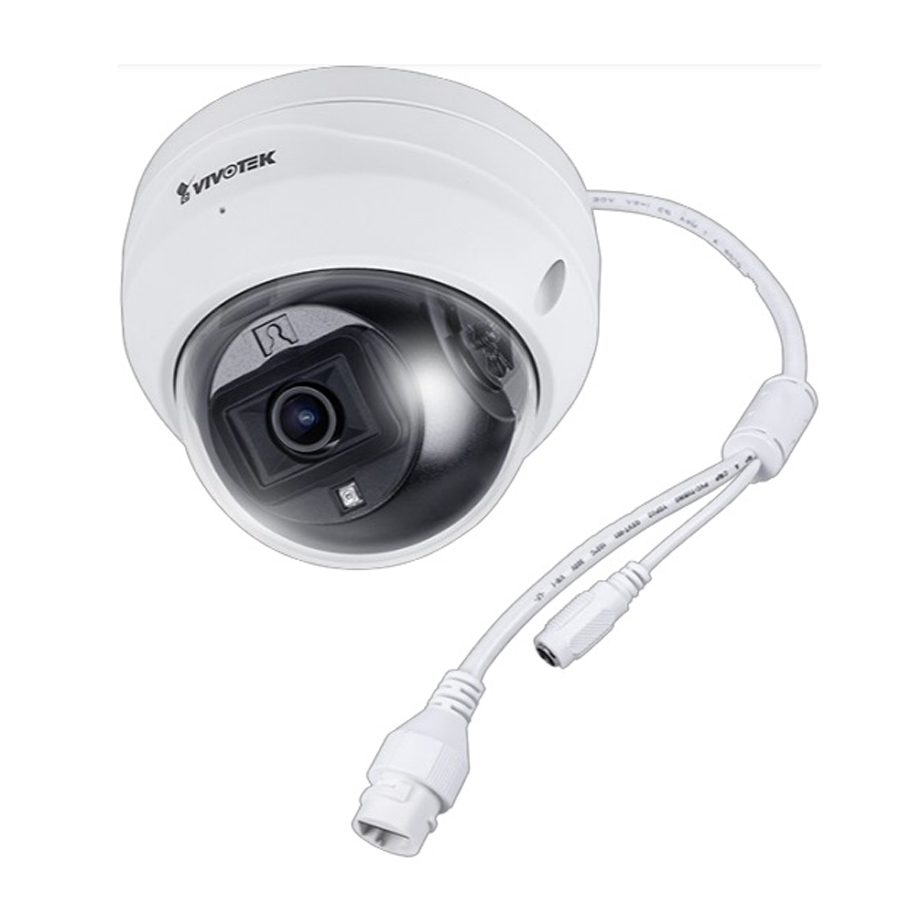

Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD9369
- Cảm biến hình ảnh: 1/3.1 inch Progressive CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Tầm quan sát hồng ngoại: 30 mét.
- Tích hợp Microphone.
- Hỗ trợ chuẩn Onvif.
- Chức năng chống ngược sáng WDR.
- Chức năng giảm nhiễu 3DNR.
- Chức năng lấy nét từ xa Remote Focus.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| System Information | |
| CPU | Multimedia SoC (Sy stem-on-Chip) |
| Flash | 256MB |
| RAM | 256MB |
| Camera Features | |
| Image Sensor | 1/3.1 inch Progressiv e CMOS |
| Max. Resolution | 1920x1080 (2MP) |
| Lens Ty pe | Fixed-focal |
| Focal Length | f = 2.8mm |
| Aperture | F2.0 |
| Iris Type | Fixed Iris |
| Field of View | 116° (Horizontal) 65° (Vertical) 140° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day /Night | Yes |
| Remov able IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, ef f ectiv e up to 30 meters with Smart IR, IR LED x 1 |
| Minimum Illumination | 0.08 lux @ F2.0 (Color) 0 lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | -10° ~ 75° |
| Rotation Range | No rotation, 2-axis design |
| Pan/Tilt/Zoom Functionalities | ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30fps @ 1920x1080 |
| Maximum Streams | 2 video streams (Up to 7 configurable profiles) |
| S/N Ratio | 59dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled prof ile settings; Pixel calculator |
| Audio | |
| Audio Capability | One-way audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Ef fectiv e Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, people detection, time filter |
| VADP Package | Smart Motion Detection |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, manual trigger, motion detection, periodical trigger, recording notif ication, SD card lif e expectancy, system boot |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS serv er, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af Class 0 PoE, DC 12V (Simultaneous Power Redundancy Supported) |
| Power Consumption | PoE: Max. 6.49W/4W (IR on/of f ) DC 12V: Max. 5.1W/3.4W (IR on/of f ) |
| Dimensions | Ø 110 x 85 mm |
| Weight | 465g |
| Certif ications | EMC: CE (EN55032 Class B, EN55035), FCC (FCC Part 15 Subpart B Class B), ICES-003 issue 7, RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Saf ety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471, IEC/EN 60950-22); IA: BIS (IS 13252): BSMI; Env ironment: IK10 (IEC 62262), IP66 (IEC 60529) |
| Operating Temperature | Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off ) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity | 95% RH (non-condensing) |
| System Requirements | |
| Operating Sy stem | Microsof t Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or abov e Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
- Sản xuất tại Taiwan.
- Bảo hành 24 tháng.
Giá: 5.664.000 VND
(Đã bao gồm VAT)
