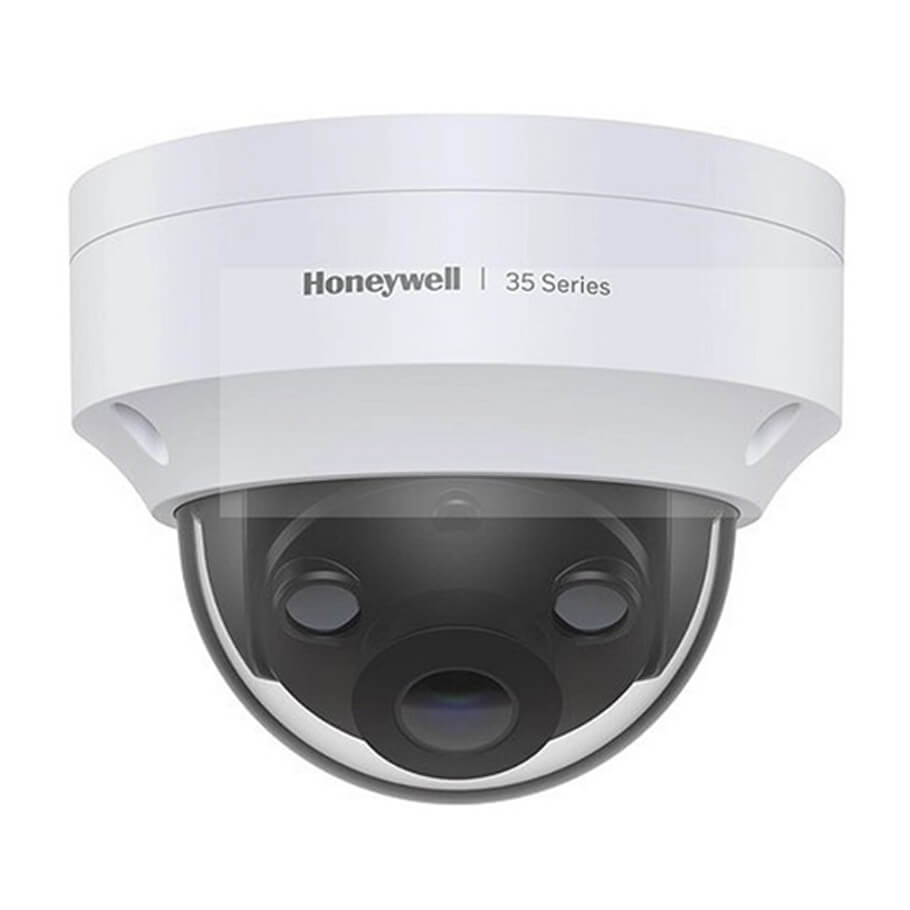

Camera IP Dome hồng ngoại 3.0 Megapixel HONEYWELL HC35W43R3
- Cảm biến hình ảnh: 1/2.7 inch CMOS.
- Độ phân giải camera: 3.0 megapixles.
- Độ dài ống kính: 2.8 mm, Fixed Iris, F1.6.
- Độ nhạy ánh sáng tối thiểu: 0.005 Lux/F1.6 (Color, 30 IRE), 0 Lux/F1.6 (IR ON).
- Chuẩn nén hình ảnh: H.265 HEVC/H.264/MJPEG, Smart Codec.
- Điều chỉnh ngày/đêm: Tự động (ICR)/Màu/Đen trắng.
- Tầm quan sát hồng ngoại: Lên đến 40 mét.
- Lưu trữ cục bộ: Hỗ trợ lưu trữ trên thẻ nhớ Micro SD lên đến 256GB (không bao gồm).
- Nguồn điện: DC12V, PoE (IEEE 802.3af) (Class 0).
- Hỗ trợ trình duyệt: Chrome/Edge.
- Tiêu chuẩn chống bụi và nước: IP66/IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| OPERATIONAL | |
| Video Standard | NTSC / PAL |
| Scanning System | Progressive |
| Image Sensor | 1/2.7 inch CMOS |
| Sensor Size (H x V) | 4.608 mm x 2.592 mm |
| Number Of Pixels(H x V) | 2304 x 1296 |
| Minimum Illumination (Color/BW) | 0.005 Lux / F1.6 (Color,30 IRE), 0 Lux / F1.6 (IR ON) |
| S/N Ratio | 50 dB |
| Electronic Shutter Speed | 1/8 ~ 1/32,000 |
| IR Distance | up to 40 M |
| IR Light Control | Smart IR (Auto/Manual)/OFF |
| IR Light Number | 2 |
| Day/Night | Auto (ICR) / Color / BW |
| Backlight Compensation | WDR, BLC, HLC |
| White Balance | Auto / Tungsten / Fluorescent / Daylight / Shadow / Manual |
| Gain Control | 0-100% |
| Wide Dynamic Range | 120 dB |
| Noise Reduction | 2D / 3D DNR |
| Lens | 2.8 mm Fixed Iris, F1.6 |
| Angle Of View | H:88°, V:47° |
| Privacy Masking | Off / On (4 Areas) |
| Local Storage | Micro SD (up to 256 GB) |
| Alarm Inputs/Outputs | Not supported |
| Pan Range | 0°-330° |
| Tilt Range | 0°-75° |
| Rotation Range | 0°-337° |
| VIDEO | |
| Video Compression | H.265 HEVC/H.264/MJPEG, Smart Codec |
| Resolution | 1st: 2304 x 1296 / 1920 x 1080 / 1280 x 720 2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) 3rd: 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) / 320 x 240 |
| Number of Video Streams | 3 (2 for encryption) |
| Frame Rate | MAX 30 fps |
| Bit Rate | 100K ~ 6 Mbps |
| NETWORK | |
| Ethernet | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
| Supported Web Browsers | Chrome/Edge |
| Supported OS | Microsoft Windows 10 |
| Protocols | IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interoperability | ONVIF Profile G/S/T |
| Maximum Users Access | 10 Users |
| Security | User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance |
| Languages Supported | Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish |
| EVENTS / ANALYTICS | |
| Built-in Video Analytics | Motion Detection, Tampering |
| Event Type | Video motion detection,Recording notification |
| Event Linkage | Event notification using Email and MicroSD card |
| Region Of Interest | 8 |
| ELECTRICAL | |
| Power Supply | DC12V, PoE (IEEE 802.3af) (Class 0) |
| MECHANICAL | |
| Dimensions | Ø110.0 mm × 85.6 mm |
| Dome Diameter | Ø78.2 mm |
| Product Weight | 0.56 kg |
| Body Material | Die-cast aluminium housing |
| Color | Camera Body: RAL 9003 (Signal White) Front/Lens Facings: Pantone Black |
| ENVIRONMENTAL | |
| Operating Temperature | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) |
| Relative Humidity | Less than 90 %, non-condensing |
| Ingress Protection | IP66/IP67 |
| Impact Resistance | IK10 |
| REGULATORY | |
| Emissions | FCC PART 15, CE (EN 55032), Complies with RCM and UKCA |
| Immunity | CE(EN 50130-4), Complies with RCM and UKCA |
| Safety | UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with RCM and UKCA |
| RoHs | CE (EN 63000), UAE(Cabinet Decree No.10 of 2017) |
- Bảo hành: 24 tháng.
