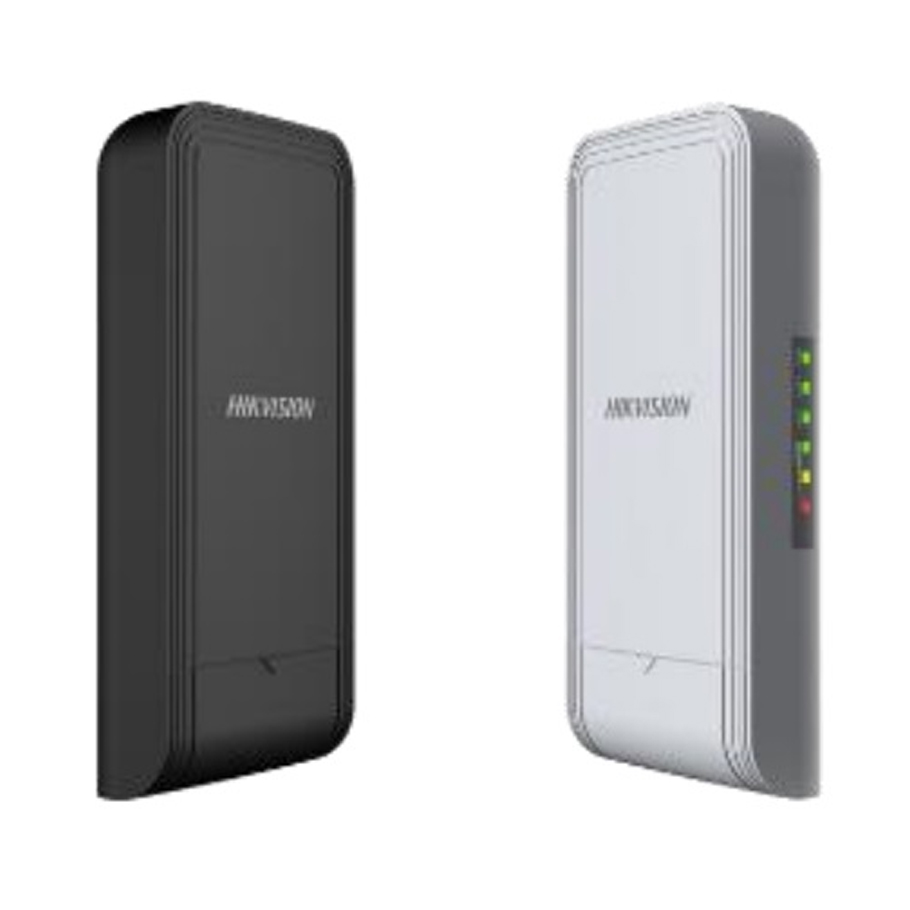

Bộ truyền tải video không dây cho thang máy HIKVISION DS-3WF0EC-5ACT
- Bộ truyền tải video 5Ghz 867Mbps chuyên dùng trong thang máy.
- Hỗ trợ 8dBi 2 x 2 MIMO antenna.
- Thiết kế đặc biệt cho việc truyền dẫn video.
- Khoảng cách truyền dẫn lên đến 500 mét.
- Bao gồm 1 bộ phát và nhận.
Đặc tính kỹ thuật
| Wireless Parameter | |
| Max. Transmission Rate of Air Interface | ≤ 867 Mbps |
| Wireless Standard | IEEE 802.11ac (2 × 2 MIMO 867 Mbps) |
| Working Frequency Band | 5150 MHz~5250 MHz 5250 MHz~5350 MHz 5470 MHz~5725 MHz 5725 MHz~5825 MHz (Note: Frequency band may vary with local regulations.) |
| Transmitting Power | 22 ± 2 dBm @11ac 80 MHz MCS0 (Note: Transmitting power may vary with local regulations.) |
| Receiving Sensitivity | -61 ± 2 dBm @11ac 80 MHz MCS9 |
| Antenna Gain | 8 dBi |
| Antenna Angle | Beamwidth [3 dB] (35° ± 5°) |
| Network Parameters | |
| Networking Mode | Point to point: Support up to 2-ch IPC (4K) in Max. 0.5 km distance and Max. 40 Mbps bandwidth |
| Hardware Parameter | |
| Port Numbers | 3 × 10/100 Mbps RJ45 ports |
| LED Indicator | Power indicator, LAN indicator, signal intensity indicator |
| Reset | Hardware resetting button |
| Power Supply | 12 VDC/1 A Passive PoE |
| Software Function | |
| Application Function | IFM,IPM,DFS,TPC |
| Channel Width | 20/40/80 MHz |
| Channel Selection | Auto/manual selection |
| Network Protocol | NTP (network time synchronization), SADP (auto search for IP address), HTTP/HTTPS (web management), SSH (debugging) |
| Security Mode | WPA2-PSK |
| Security Mechanism | SSID hidden |
| Management Method | Web, iVMS-4200, HCP |
| Upgrade | Web, iVMS-4200, HCP |
| System Log | Syslog, control center information |
| General | |
| Dimensions (W × H × D) | 92 mm × 187 mm × 46 mm |
| Net Weight | 0.26 kg |
| Working Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Working Humidity | 5% to 95% (no condensation) |
| Storage Temperature | -40 °C to 80 °C (-40 °F to 176 °F) |
| Storage Humidity | 5% to 95% (no condensation) |
| Installation Mode | Pole mounting |
| Power Consumption | 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W |
Xuất xứ: Trung Quốc.
