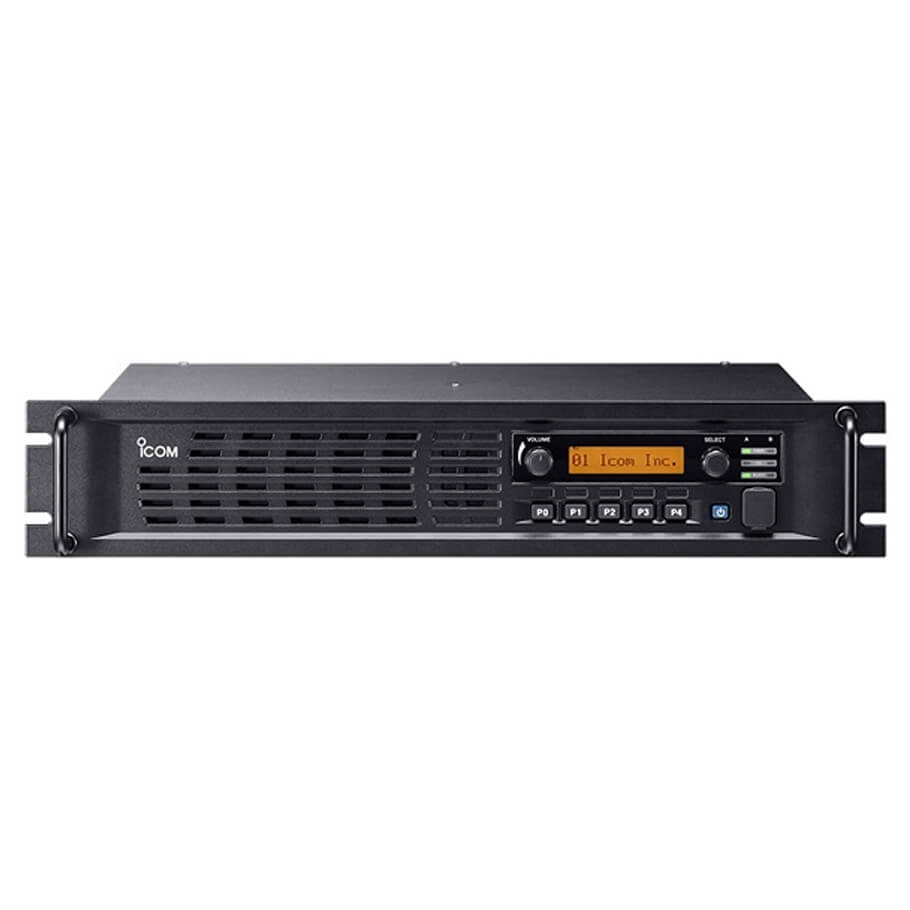

Bộ phát lặp bộ đàm ICOM IC-FR5300 VHF
- Tần số: 136-174 MHz.
- Số kênh: 32 kênh, 1 vùng.
- Công suất: 25W.
- Kích thước (W x H x D): 483 × 88 × 260 mm.
- Trọng lượng: 5.78kg.
Thông số kỹ thuật
| GENERAL | |
| Frequency coverage* (* Depending on the version) |
136-174 MHz |
| Number of channels | 32 channels /1 zone |
| Type of emission* (* Depending on the version) |
16K0F3E (25 kHz), 14K0F3E (20 kHz, EUR), 11K0F3E (15 kHz, USA), 8K50F3E (12.5 kHz), 4K00F1E/F1D (6.25 kHz) |
| Power supply requirement | 13.6 VDC nominal (USA, EXP, CAN) 13.2 VDC nominal (EUR, AUS) |
| Current drain (approx.) | TX: + 15.0 A maximum (at 50 W) + 8.0 A maximum (at 25 W) RX: 1.9 A /500 mA (Maximum audio /Standby (Fan OFF)) |
| Antenna impedance | 50 Ω |
| Operating temperature range | –30 °C to +60 °C, –22 °F to +140 °F (USA, EXP, CAN) –25 °C to +55 °C, –13 °F to +131 °F (EUR, AUS) |
| Dimensions (Projections not included) | 483 × 88 × 260 mm |
| Weight (approx.) | 5.78 kg |
| TRANSMITTER | |
| Output power (Hi, L2, L1) | 50 W, 25 W, 5 W (USA, EXP, CAN, AUS Versions) 25 W, 10 W, 5.8 W (EUR, EXP Versions) |
| Frequency stability | ±1.0 ppm or less ±0.1 ppm or less (corrected using GNSS) |
| Spurious emissions | 80 dB typ. (TIA-603) 0.25 µW (≤ 1 GHz), 1.00 µW (> 1 GHz) (EN301 166, EN300 086) |
| Maximum frequency deviation | Digital: ±1.203 kHz– 1.471kHz (EN301 166) Analog: ±5.0 kHz/±2.5 kHz (25 kHz/12.5 kHz)(TIA-603) ±5.0 kHz/±4.0 kHz/±2.5 kHz (25 kHz/20 kHz/12.5 kHz)(EN300 086) |
| FM hum and noise | 83/77 dB typ. (25/12.5 kHz)(TIA-603) |
| Residual modulation (With CCITT filter) | 82/82/79 dB typ. (25/20/12.5 kHz)(EN300 086) |
| Audio harmonic distortion | 0.9% typ. (AF 1kHz 40% deviation)(TIA-603) 1.1% typ. (AF 1kHz 40% deviation)(EN 300 086) |
| FSK error | 0.6% typ. (EN301 166) |
| RECEIVER | |
| Sensitivity | Digital (1% BER): –4.0 dBµV (0.32 µV) emf typ. (EN301 166) Analog (12 dB SINAD): –119 dBm, (0.25 µV) typ. (TIA-603) Analog (20 dB SINAD): –4.0/–4.0/–1.0 dBµV emf typ. (25/20/12.5 kHz)(EN300 086) |
| Adjacent channel selectivity | Digital: 66 dB typ. (EN301 166) Analog: 85/80 dB typ. (25/12.5 kHz)(TIA-603) 84/83/78 dB typ. (25/20/12.5 kHz)(EN300 086) |
| Spurious response rejection | Digital: 87 dBµV emf typ. (EN301 166) Analog: 85 dB typ.(TIA-603) 81 dB typ. (EN300 086) |
| Intermodulation rejection | Digital: 78 dBµV emf typ. (EN301 166) Analog: 81/81 dB typ. (25/12.5 kHz)(TIA-603) 75/74/73 dB typ. (25/20/12.5 kHz)(EN300 086) |
| Audio output power | 3.9 W typ. (at 5% distortion with 4 Ω load) |
- Sản xuất tại Nhật Bản.
- Bảo hành: 24 tháng cho thân máy, 12 tháng cho Pin và phụ kiện.
