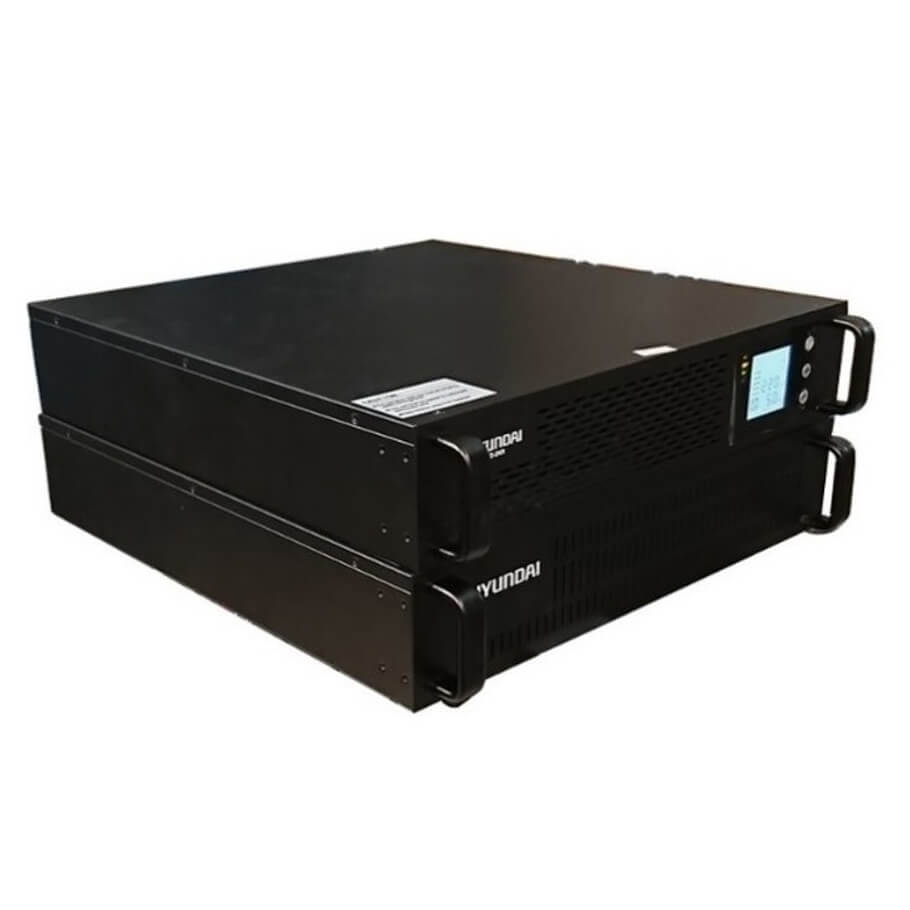

Bộ nguồn lưu điện UPS Rack Mount HYUNDAI HD-3KR9
- Công suất: 3KVA/2.7KW.
- Điện áp: 220V/230V/ 1pha.
- Tần số: 50Hz.
- Dạng sóng: Sin chuẩn.
- Thời gian chuyển mạch: 0.
- Hệ số công suất: 0.9.
- Ắc quy: 8 x 7Ah x 12VDC.
- Thời gian lưu điện: 8 phút với 100% tải.
Đặc tính kỹ thuật
| Model | HD-3KR9 |
| Capacity | 3KVA/2.7KW |
| Input | |
| Nominal Voltage | 220VAC |
| Voltage Range | 110~300VAC |
| Frenquency Range | 40~70Hz; 50/60Hz Auto adaptation |
| Power Factor | 0.99 |
| Connection | Universal x 2 |
| Ouput | |
| Voltage | 208/220/230/240 (±1%) VAC |
| Frequency | 50/60Hz±4 (Line mode) 50/60Hz±0.2Hz (Battery mode) |
| Waveform | Pure sine wave |
| Overload Capability | Load <110%, keep working, 110%<Load≤130%>1 min; 130%<Load≤150% Immediately |
| Current Crest Ratio | 3:1 |
| Bypass | |
| Automatic transfer | on overload and USP failure |
| Transfer time | 0ms; less than 4ms from inverter to bypass and vice versa |
| LCD status | Load/Battery/Input/Output/Operation Mode |
| Environment | |
| Operating Temperature | 0~40°C |
| Operating Humidity | 20~90% non-condensing |
| Maint Unit | |
| Net Weight (kg) | 10 |
| Dimension (WxHxD) | 476 x 482.6 x 88 mm |
| Battery Pack (BP) | |
| Type | External battery Pack |
| Nominal DC Voltage | 96VDC |
| Backup Time (Full load) | 7-9 mins |
| Net Weight (kg) | 27.8 kg |
| Dimension (WxHxD) | 465 x 480 x 88 mm |
- Bảo hành: 2 năm.
