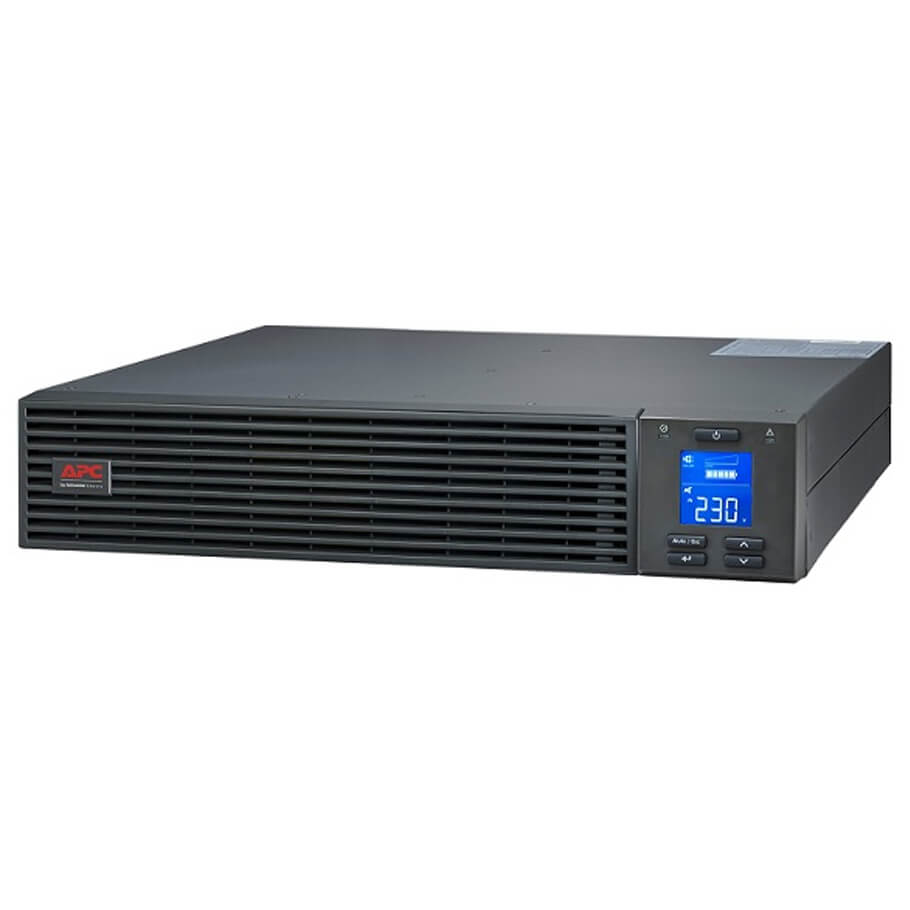

Bộ lưu điện UPS APC SRV3KRIRK-E
- Output power capacity: 2.7kWatts/ 3.0kVA.
- Topology: Double Conversion Online.
- Waveform type: Sine wave.
- Output Connections: (6) IEC 60320 C13, (1) IEC 60320 C19.
- Input Connections: IEC 60320 C20.
Đặc tính kỹ thuật
| Overview | |
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
| Lead time | Usually in Stock |
| Main | |
| Main Input Voltage | 230V |
| Other Input Voltage | 220V 240V |
| Main Output Voltage | 230V |
| Other Output Voltage | 220V 240V |
| Rated power in W | 2700W |
| Rated power in VA | 3000 VA |
| Input Connection Type | IEC 60320 C20 |
| Output connection type | 6 IEC 60320 C13 1 IEC 60320 C19 |
| Number of rack unit | 2U |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C19 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 rack mounting brackets 1 rack mounting support rails user manual |
| General | |
| Max runtime | 3 min |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black (RAL 7010) |
| Height | 8.6 cm |
| Width | 43.8 cm |
| Depth | 63.2 cm |
| Net weight | 28.5 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Input voltage limits | 110...285 V half load 180...285 V full load |
| Network frequency | 40...70 Hz auto sensing |
| Output | |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 3% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Conformance | |
| Product certifications | CE UKCA TISI |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95% non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 910 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery voltage | 72 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4h |
| Battery life | 3…5 year(s) |
| Battery charger power | 60W rated |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Free slots | 1 |
| Control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rate | 945J |
- Công nghệ Nhật Bản.
- Bảo hành: 3 năm.
