Bộ lưu điện UPS APC SRT6KRMXLI

Trang Chủ >> Nguồn lưu điện-Ắc quy >> Nguồn lưu điện UPS APC >> Bộ lưu điện UPS APC SRT6KRMXLI
Mã số:28140045

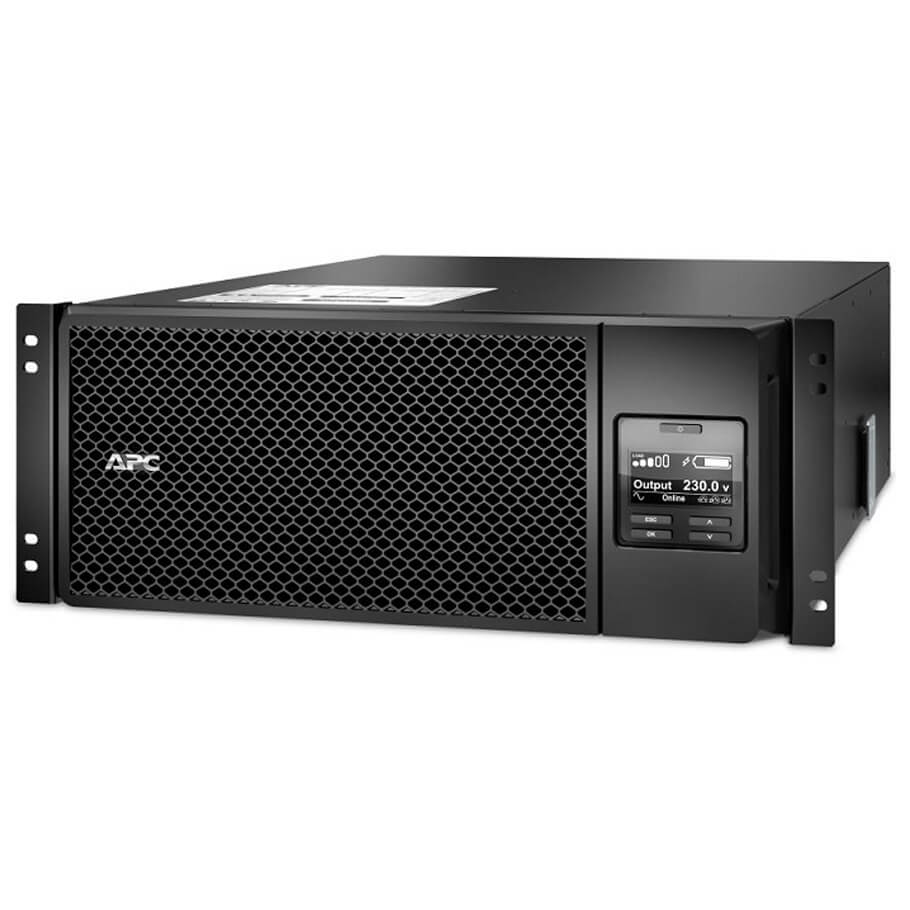

Bộ lưu điện UPS APC SRT6KRMXLI

Bộ lưu điện UPS APC SRT6KRMXLI

-         Công nghệ: Double Conversion Online.

-         Công suất: 6.0 KWatts / 6.0 kVA.

-         Nguồn điện ngõ ra: 230VAC.

-         Tần số ngõ ra: 50/60Hz +/- 3Hz.

-         Dạng sóng: Sóng sine.

-         Ắc quy (Battery Volt-Amp-Hour Capacity): 902VAh.

-         Ắc quy thay thế: APCRBC140.

-         Cổng kết nối: RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB.

-         Thời gian sạc: 1.5 giờ.

-         Rack Height: 4U.

-         Thích hợp sử dụng cho các thiết bị như: Máy vi tính, máy in, Wifi, máy chấm công, máy tính tiền, tổng đài điện thoại, máy Fax, cửa từ, thiết bị viễn thông, thiết bị mạng, camera,…

-         Kích thước: 174 x 432 x 719mm.

-         Trọng lượng: 60kg.

Đặc tính kỹ thuật

Output

Output power capacity

6.0 KWatts / 6.0 kVA

Max Configurable Power (Watts)

6.0 KWatts / 6.0 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3:1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections

(2) IEC Jumpers (Battery Backup)

(4) IEC 320 C19 (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage

230VAC

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

Hard Wire 3 wire (1PH+N+G)

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load)V

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof

Typical recharge time

1.5hour(s)

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

902

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Rack Height

4U

Dimension

174 x 432 x 719mm

Weight

60kg

-         Sản xuất tại Philippines, Ấn Độ và Trung Quốc.

-         Bảo hành: 3 năm cho thiết bị (electronics) và 2 năm cho pin (battery).

Giá: 97.344.000 VND (Đã bao gồm VAT)
