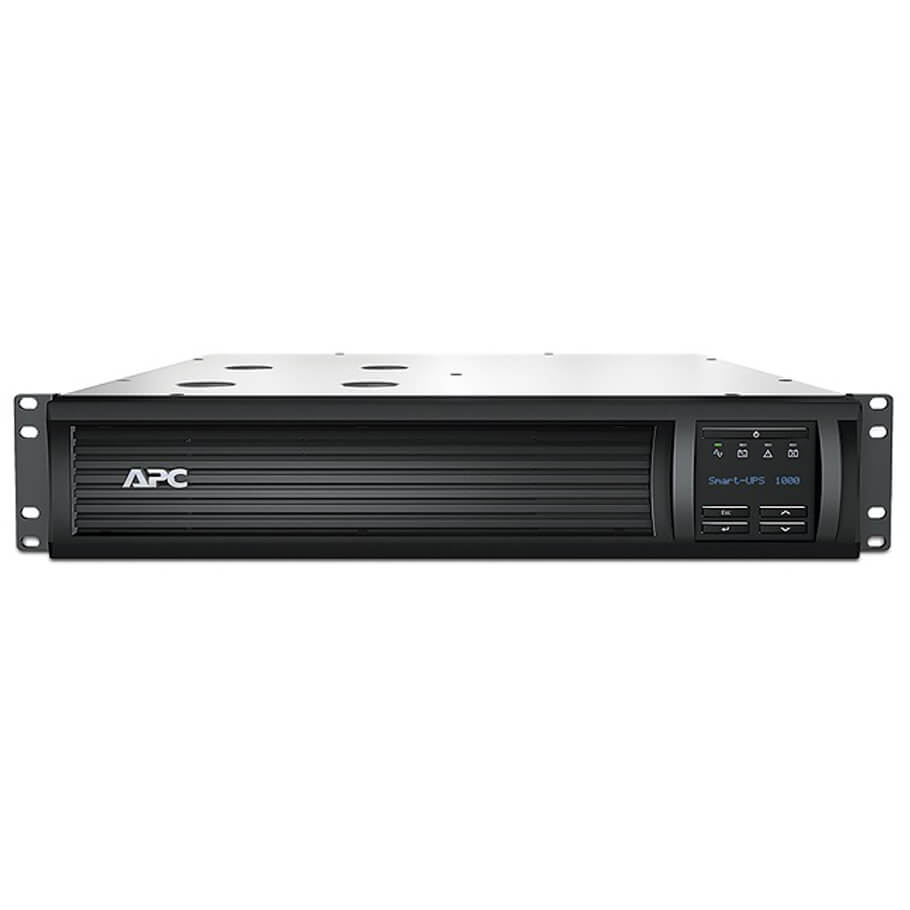

Bộ lưu điện UPS APC SMT1000RMI2UC
- Công suất: 1000VA/700W.
- Điện thế ngõ vào/ra: 230V.
- Tần số ngõ vào: 50/60Hz ±3Hz.
- Công nghệ: Line Interactive.
- Dạng sóng: Sóng sine.
- Thời gian chuyển mạch: 6ms.
- Thời gian lưu điện: 31 phút (50% tải), 8 phút (100% tải).
- Cổng kết nối: RJ-45 Serial, SmartSlot, USB.
- Thời gian sạc: 3 giờ.
- Hỗ trợ màn hình LCD hiển thị thông tin trạng thái.
- Chiều cao rack: 2U.
Đặc tính kỹ thuật
| Model | SMT1000RMI2UC |
| Output | |
| Output power capacity | 700W / 1.0kVA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 5% |
| Nominal Output Voltage | 230V |
| Output Frequency | 50/60 Hz +/- 3 Hz Sync to mains |
| Other output voltages | 220V, 240V |
| Topology | Line interactive |
| Waveform | Sine wave |
| Transfer Time | 6 ms typical: 10 ms maximum |
| Output Connections | (2) IEC Jumpers (Battery Backup) (4) IEC 320 C13 (Battery Backup) |
| Input | |
| Nominal Input Voltage | 230V |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 151 - 302 Adjustable, 160 - 286V |
| Input Connections | IEC 320 C14 |
| Other Input Voltages | 220 V, 240 V |
| Number of Power Cords | 1 |
| Batteries and Runtime | |
| Battery Type | Lead-acid battery |
| Typical recharge time | 3 hour(s) |
| Replacement Battery | APCRBC157 |
| Expected Battery Life | 4 ~ 6 years |
| RBC Quantity | 1 |
| Battery Charge Power | 112W |
| Run time for full load | 8m |
| Run time for half load | 31m |
| Communications & Management | |
| Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
| Control panel | Multifunction LCD status and control console |
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| Emergency Power Off (EPO) | Optional |
| Available SmartSlot™ Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 459Joules |
| Filtering | Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
| General | |
| Dimensions (DxWxH) | 86 x 432 x 477 mm |
| Weight | 22.5kg |
| Operating Temperature | 0 ~ 40°C |
| Storage Temperature | -15 ~ 45 °C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
- Bảo hành: 3 năm.
