0916 287 068 Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS902-S
Trang Chủ >>
Chuông cửa có hình >> Chuông cửa HIKVISION >> Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS902-S
Mã số:15105755

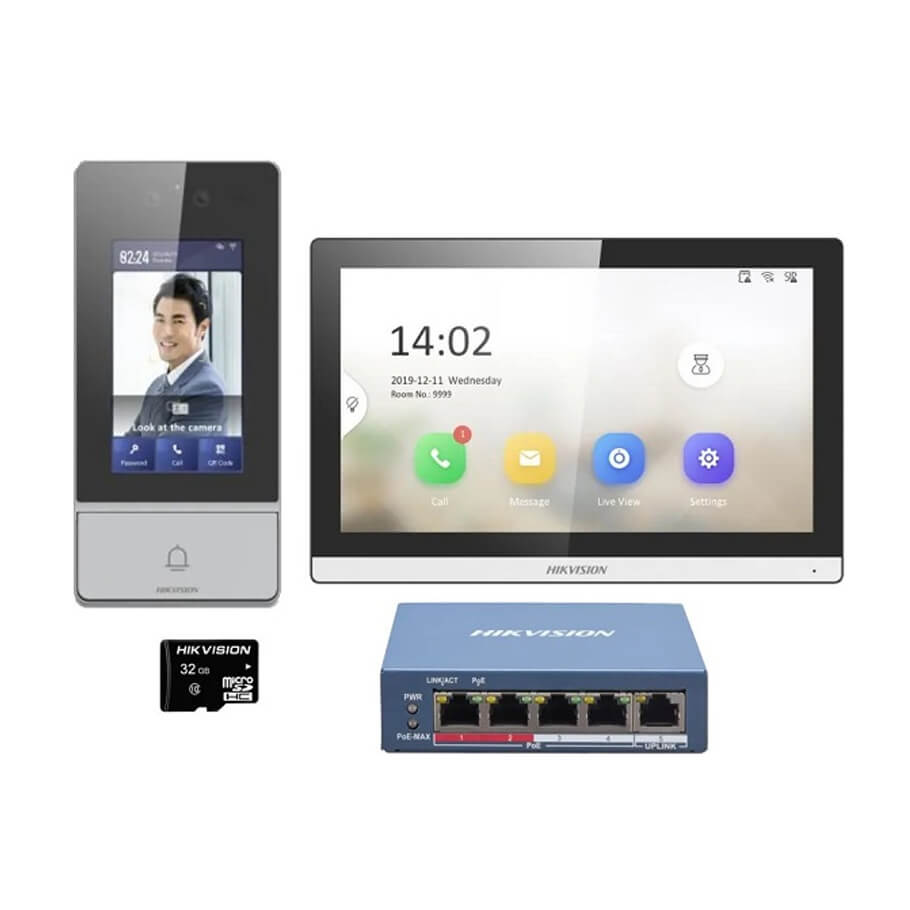

Bộ Kit chuông cửa có hình IP HIKVISION DS-KIS902-S
- Bộ Kit chuông cửa có hình IP dành cho biệt thự hoặc khu thương mại, bao gồm: DS-KV9503-WBE1 x1; DS-KH6350-WTE1 Trắng x1; Switch PoE tiêu chuẩn 4 cổng x1; Thẻ TF 32GB x1.
- Điều khiển thuận tiện qua ứng dụng di động Hik-Connect.
- Hỗ trợ nhiều phương thức xác thực: Khuôn mặt, mã Pin, thẻ, Mã QR, Bluetooth.
- Nguồn cấp PoE tiêu chuẩn.
- Lưu trữ tin nhắn và hình ảnh chụp được trong thẻ TF.
- Bộ đổi nguồn đi kèm trong gói (tiêu chuẩn Châu Âu).
Thông số kỹ thuật
| Door station | |
| Operation system | Embedded Linux operation system |
| Flash | 4 GB |
| RAM | 1 GB |
| Door station | |
| Screen size | 4.3-inch |
| Resolution | 800 × 480 |
| Type | IPS |
| Operation method | Capacitive touch screen |
| Brightness | 425 cd/m² |
| Door station | |
| Supplement light | IR light, up to 3 m |
| Resolution | Main stream: 1920 × 1080p, 720p |
| Sub stream: 640 × 480p | |
| Lens | 2 × 2 MP |
| Wide dynamic range (WDR) | Support 120 dB |
| FOV | Horizontal: 88°, Vertical: 44° |
| Video Compression Standard | Main stream and sub stream: H.264 |
| Third stream: H.265 | |
| Motion detection | Support |
| Door station | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Door station | |
| Face capacity | 10000 |
| User capacity | 20000 |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Card capacity | 100000 |
| Door station | |
| Network protocol | TCP/IP, RSTP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Reserved |
| Door station | |
| Card reading frequency | 13.56 MHz |
| Face recognition distance | 0.3 to 2 m |
| Face recognition accuracy rate | ≥ 99% |
| Face recognition duration | ＜ 0.2 s per person |
| Door station | |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Lock control | 2 relays, Max. 30 VDC 2 A, |
| lock 2 needs secure module | |
| Exit button | 2 |
| TAMPER switch | 1 |
| Door contact input | 2 |
| Door station | |
| Power consumption | ≤ 6 W |
| Button | 1 physical button(s) |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension | 182 mm × 85 mm × 26 mm |
| Installation | Surface mounting |
| Protection level | IP65, IK08 |
| Application environment | Outdoor |
| Power supply | IEEE802.3af, standard PoE 12 VDC, 1.5 A |
| Weight | 0.405 kg |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station | |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Indoor station | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Volume adjustment | Adjustable |
| Audio compression Rate | 64 Kbps |
| Indoor station | |
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Indoor station | |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Protocol | TCP/IP, SIP, RTSP |
| Indoor station | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Alarm output | 2 |
| TF card | Max to 128 G |
| Indoor station | |
| Power consumption | ≤ 5 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Power supply | 12 VDC,IEEE802.3af, Standard PoE |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 175 mm × 113.5 mm × 21 mm |
| Installation | Wall mounting, table mounting |
| Application environment | Indoor |
| Weight | 355g |
- Bảo hành: 24 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
