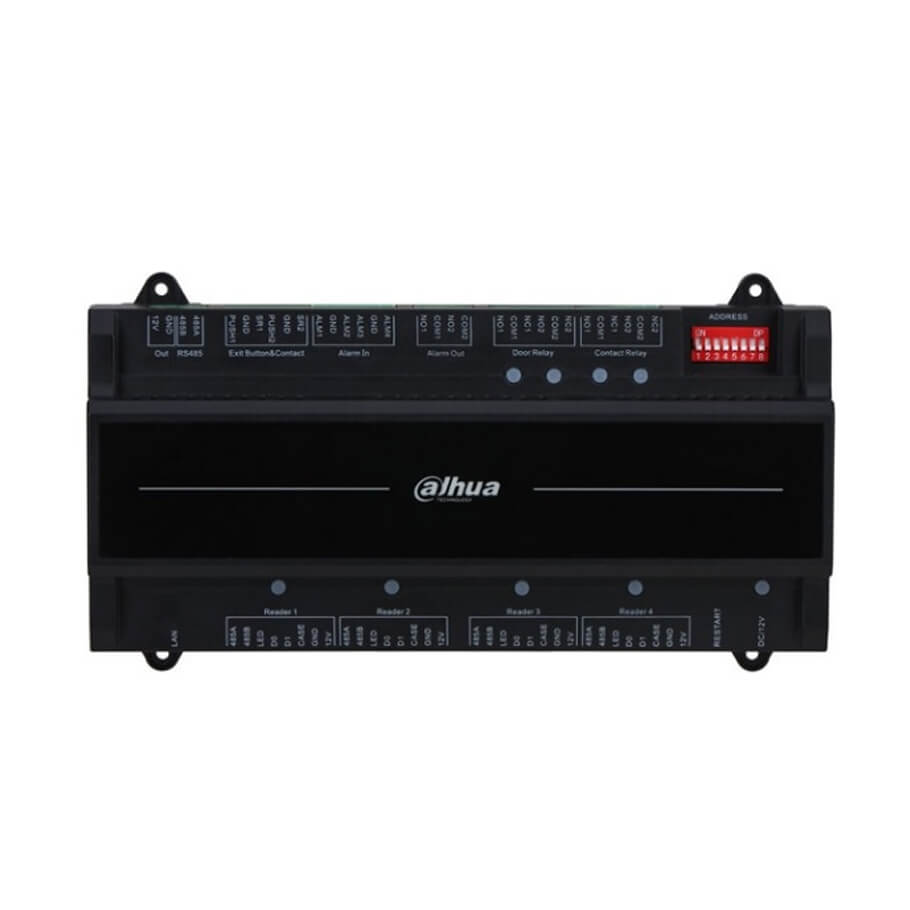

Bộ điều khiển truy cập DAHUA DHI-ASC2202B-D
Thiết bị là bộ điều khiển truy cập trung tâm dành cho hệ thống kiểm soát ra vào chuyên nghiệp, quản lý đồng thời 2 cửa độc lập. Sản phẩm hỗ trợ kết nối mạng TCP/IP, dễ dàng tích hợp vào hạ tầng mạng sẵn có của tòa nhà. Với khả năng quản lý số lượng lớn người dùng và lịch sử ra vào, thiết bị đáp ứng tốt nhu cầu của văn phòng, nhà máy, khu công nghiệp, trường học hay khu dân cư. Hệ thống cho phép xác thực linh hoạt bằng thẻ, mật khẩu, vân tay hoặc điều khiển từ xa. Ngoài ra, thiết bị còn được trang bị đầy đủ các cơ chế cảnh báo an ninh, đảm bảo kiểm soát chặt chẽ và an toàn.
Tính năng nổi bật
- Quản lý 2 cửa độc lập, hỗ trợ tối đa 4 đầu đọc RS-485 hoặc 4 đầu đọc Wiegand (W26/W34), linh hoạt cho nhiều mô hình triển khai.
- Dung lượng lớn, quản lý đến 100.000 người dùng/thẻ và lưu trữ 500.000 bản ghi sự kiện, phù hợp hệ thống quy mô vừa và lớn.
- Đa dạng phương thức xác thực: thẻ, mật khẩu, vân tay và mở cửa từ xa qua phần mềm quản lý.
- Tính năng an ninh nâng cao: chống quay vòng thẻ (anti-passback), liên động nhiều cửa, mở cửa theo nhóm, thẻ cưỡng bức, danh sách cho phép/chặn.
- Hệ thống cảnh báo toàn diện: cảnh báo cạy phá đầu đọc, xâm nhập trái phép, cửa mở quá thời gian, thẻ sai vượt ngưỡng, mật khẩu sai.
- Đồng bộ thời gian chính xác với RTC tích hợp, hỗ trợ đồng bộ thủ công và tự động qua mạng.
- Hỗ trợ PoE, giảm chi phí đi dây và đơn giản hóa lắp đặt trong hệ thống mạng nội bộ.
- Độ ổn định cao, có watchdog giám sát phần mềm/phần cứng, bảo vệ dữ liệu khi mất điện và hỗ trợ nâng cấp trực tuyến.
Thông số kỹ thuật
| System | |
| Internet Protocol | IPv4; TCP; UDP |
| OSDP Protocol | Yes |
| SDK | Yes |
| Basic | |
| Product Appearance | Model B slide rail |
| Buzzer | Yes |
| Casing Material | PC+ABS |
| Function | |
| Unlock Mode | Card/remote/password/fingerprint unlock |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First-Card Unlock | Yes |
| Remote Verification | Yes |
| Blocklist/Allowlist | Yes |
| Peripheral Card Reader | 4 RS-485 card readers 4 Wiegand card readers |
| Multi-door Interlock | Yes |
| Group Combination | Card/password/fingerprint unlock |
| Real-Time Surveillance | Yes |
| Multiple Authentication | Yes |
| User | |
| User (Card) Type | General user, VIP user, patrol user, guest user, blocklist user, and other user |
| Capacity | |
| User | 100,000 |
| Fingerprint | 3,000 |
| Card | 100,000 |
| Record Capacity | 500,000 |
| Port | |
| RS-485 Port | 5 RS-485 ports |
| Wiegand | 4 Wiegand ports |
| Network | One 10/100 Mbps network port |
| Alarm Input | 4 (digital quantity) |
| Alarm Output | 4 (relay) |
| Alarm Linkage | Yes |
| Exit Button | 2 |
| Door Status Detection | 2 |
| Lock Control | 2, normally open by default |
| Alarm | |
| Anti-Passback | Yes |
| Tamper | Yes |
| Duress | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| General | |
| Power Supply | Standard POE (an additional power supply for the door lock is needed); DC 12V (support supplying power to the door lock) |
| IP Rating | IP20, IK04 |
| Power Consumption | Standby 1.0W, working 13.0W (Standard PoE; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A); Standby 0.8W, working 41.6W (DC 12V; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A; rated voltage of the door lock power supply is 12V, and the total max. rated current is 2A) |
| Product Dimensions | 210 mm × 106 mm × 50 mm |
| Operating Temperature | -30°C to +60°C (–22°F to +140°F) |
| Operating Humidity | 5%RH–90%RH (no condensation) |
| Operating Altitude | 0 m–1300 m |
| Operating Environment | Indoor |
| Installation | Surface/guide rail mount |
| Certification | CE/FCC/UL |
