0916 287 068 Bộ điều khiển báo động địa chỉ BUSNET TAKEX BUS-C630-3
Trang Chủ >>
Báo cháy-Báo trộm >> Báo động TAKEX >> Bộ điều khiển báo động địa chỉ BUSNET TAKEX BUS-C630-3
Mã số:13303880

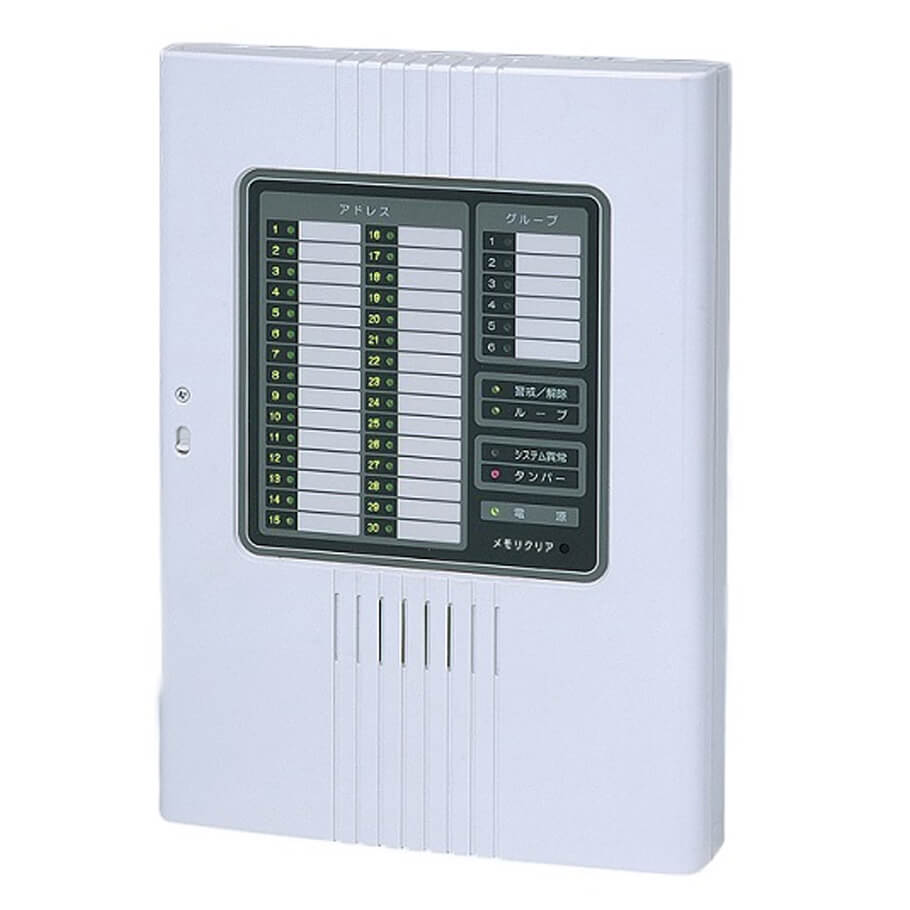

Bộ điều khiển báo động địa chỉ BUSNET TAKEX BUS-C630-3
- Set the address from 1 to 30 with the switch installed in the terminal device. After that, you can manage and operate individual output, group output from 1 to 6, and memory display only by registering and setting on the controller side. Even if there is an on-site layout change, everything can be changed easily on the controller side, so operation flexibility can be maintained.
Đặc tính kỹ thuật
| Part number | BUS-C630-3 |
| Power-supply voltage | 10.5 to 28 VDC (with polarity) |
| Current consumption | 700mA |
| Number of terminals that can be connected | 30 units |
| Transmission method | Bus net method (time division multiplex transmission method) |
| Wiring length | Maximum length: 1000m Branch: No restrictions (1000m or less) Total wiring length: 4000m (When using φ0.9mm AE wire (OP wire)) |
| Transmission speed | About 8-16msec / 1 unit |
| Communication contents | Controller → Terminal: Indicator light control, loop status, warning status Terminal → Controller : Normal, alarm, tamper, voltage drop, equipment error Address (1 to 30) |
| input | Warning / release input (a contact / b contact switching type) |
| output | Group alarm output (1 to 6) Loop output, system error output, tamper output Non-voltage semiconductor contact a contact / b contact batch switching AC / DC 30V / 0.25A |
| Indicator (display panel) | Address number indicator (1 to 30): green address warning indicator (1 to 30): Red Group - up warning indicator (1 to 6): red alert / cancellation indicator: red / green Lumpur - flop indicator: Green System error indicator: Red Tamper indicator: Red Power indicator: Green |
| Memory-backup | Yes |
| Wiring connection | Power supply, bus line: M4 self-up terminal Other than above: M3 self-up terminal |
| Usable ambient temperature | -15°C to + 55°C (no condensation) |
| Installation location | Indoor (wall mounted) |
| mass | 1,400g |
| appearance | Resin (white) |
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
