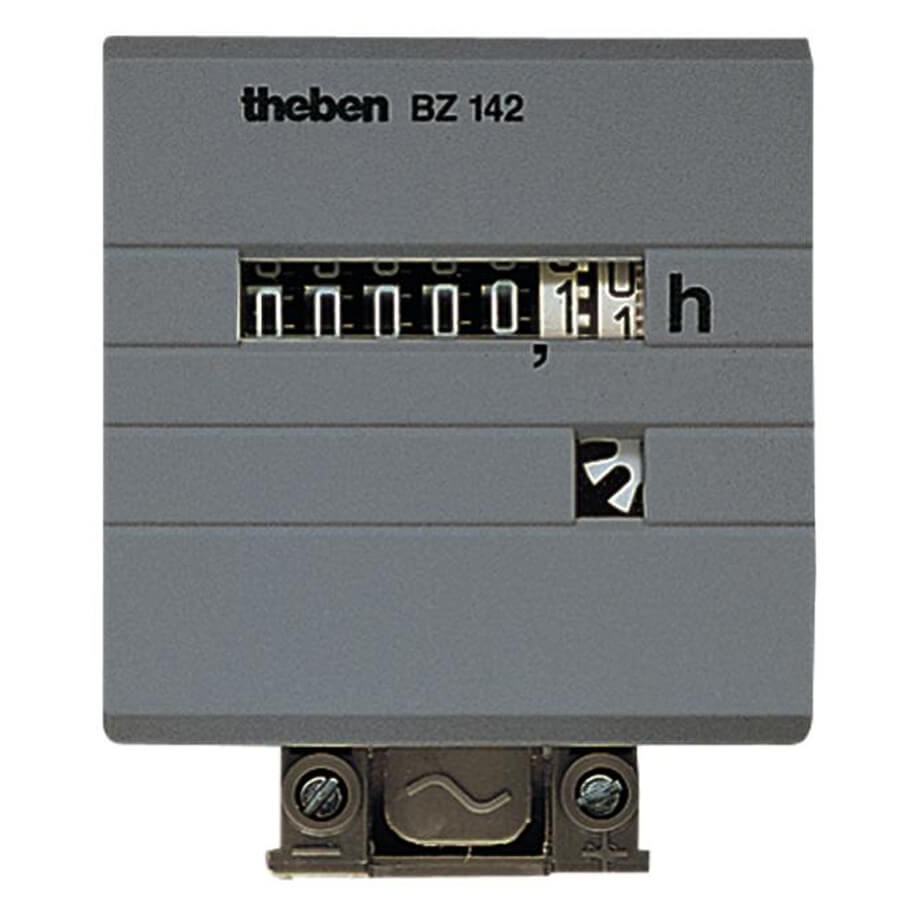

Bộ đếm giờ THEBEN BZ 142-3
- Hour counter with synchronous motor drive
- With plug-in base for wall installation (terminal cover required)
- Plug-in base with quick fastening for 35 mm profile rails (DIN EN 60 715)
- Screw terminals
- Contact protection to comply with accident prevention regulation BGV A3
- Housing colour: anthracite
- Versions for direct voltage with quartz-controlled stepper motor
- Progress display
Specifications
|
Operating voltage |
230 V AC |
|
Frequency |
50 Hz |
|
Installation type |
Front panel installation |
|
Size front plate |
48 x 48 mm |
|
Size of Installation section |
46 x 46 mm |
|
Counting range |
99 999,99 hours without reset |
|
Type of protection |
Front frame IP 65 |
|
Protection class |
II as per EN 60 335-1 |
|
Ambient temperature |
-20 °C ... +70 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
