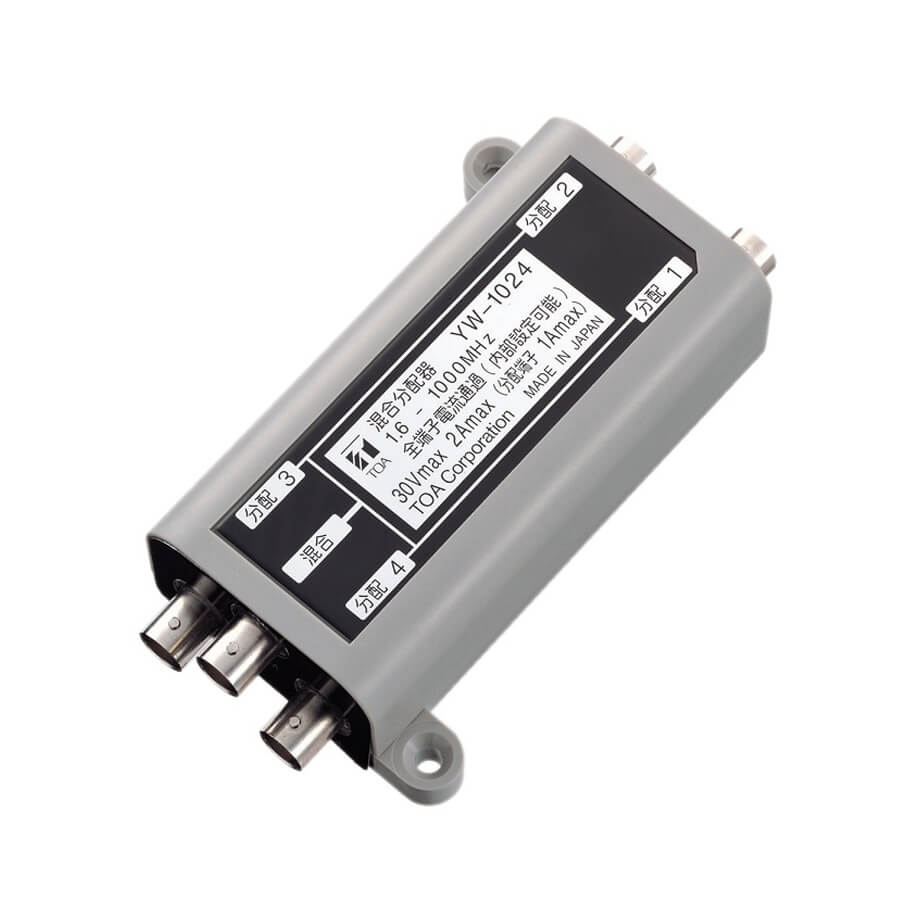

Bộ chia tín hiệu 4 ngõ ra TOA YW-1024
- The YW-1024 is a distributor that can work in the frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz). Power passing type permits easy power supply.
Specifications
| Model | YW-1024 |
| Frequency Range | 1.6-1000 MHz (excluding 50 - 70 MHz) |
| Distribution Loss | 8.5 dB ±3 dB (between the Mixing and each Distribution terminals) |
| Input/Output Impedance | 75 Ω |
| Coaxial Connector | Mixing terminal: BNC jack, power passing type (30 VDC or less, 2A or less) Distribution 1 - 4 terminals: BNC jack, power passing type (30 VDC or less, 1 A or less) |
| Operating Temperature | -10ºC to +50ºC |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | ABS resin, gray |
| Dimensions | 75 x 122 x 34 mm |
| Weight | 120g |
- Sản xuất tại Nhật Bản.
- Bảo hành: 12 tháng.
