Mã số:13142336

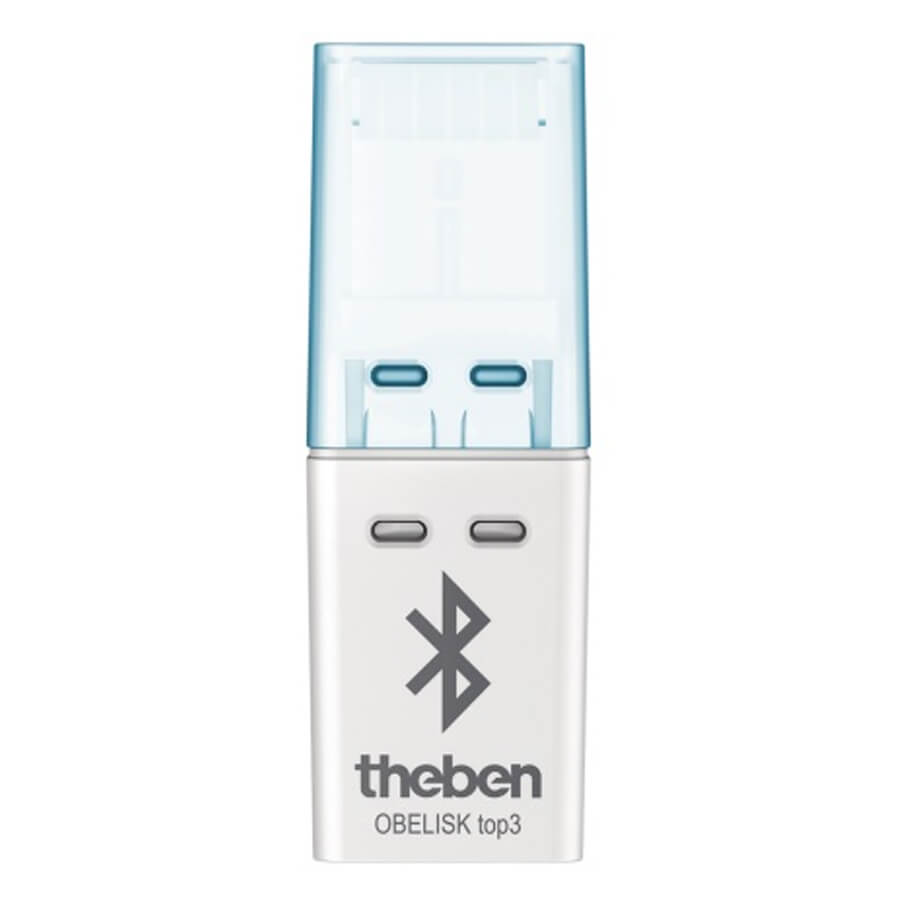

Bluetooth THEBEN BLE Stick top3
- Part Number: 9070130.
- Bluetooth low-energy dongle for the transfer of switching programs and direct commands from the app to the time switch.
- Plug-in via the standard top3 OBELISK interface.
- Maximum manipulation security, Time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch.
- Low consumption on standby compared with permanently installed Bluetooth components.
- Built-in memory function (EEPROM), memory function can also be used in the PC programming set.
- Can also be used as a memory card for all top3 and top2 devices in mains operation
Đặc tính kỹ thuật
| Model | AMUN 716 SR |
| General technical data | |
| Operating voltage | 3.3 (5.0)V |
| Operating voltage (tolerance) | +/- 10% |
| Ambient temperature | -30 ... +55 ° C |
| Storage temperature | -30 ... +70 ° C |
| Device standard | EN 60730 and EN 60669 |
| Protection class | IP 40 |
| Radio technical information | |
| Transmission frequency | 2402-2480 MHz |
| Transmission powe | 2.9 mW |
| Range | min. 15 m |
| Radio standard | Bluetooth 4.2 |
| Transceiver type | bidirectional |
| Dimensions and weights | |
| Height without packaging | 10.1 mm |
| Width without packaging | 17.4 mm |
| Depth without packaging | 50 mm |
| Weight without packaging | 6 g |
| Height with packaging | 15 mm |
| Width with packaging | 60 mm |
| Depth with packaging | 123.5 mm |
| Weight with packaging | 16 g |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
Giá: 1.508.000 VND
