0916 287 068 AX Hybrid Pro Control Panel HIKVISION SH-PHA6640-LP (DS-PHA64-LP) (Gen2)
.jpg "AX Hybrid Pro Control Panel HIKVISION SH-PHA6640-LP (DS-PHA64-LP) (Gen2)")

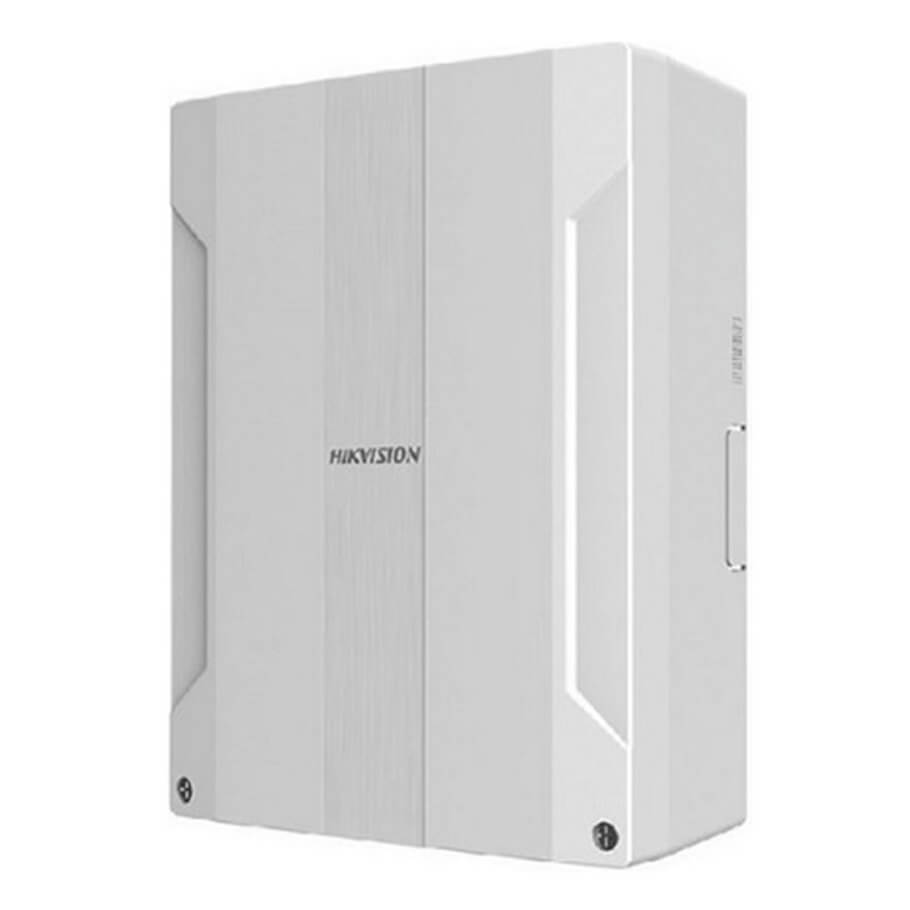

AX Hybrid Pro Control Panel HIKVISION SH-PHA6640-LP (DS-PHA64-LP) (Gen2)
- Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable; 4 on-board outputs (2 relay outputs and 2 I/O outputs) and 60 wired/wireless outputs expandable.
- Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client.
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag.
- Pushes alarm notification via messages and Hik-Connect.
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol.
- Supports 1 Speed-X BUS.
Thông số kỹ thuật
| Software features | |
| Zones | 64 (8 On-board zones, max 8 wired PIRCAM) |
| Area | 32 |
| User | Installer: 1 Administrator: 1 Operator: 62 |
| SMS notification | Support (with GPRS/3G/4G module) |
| Onboard video clips | 4 |
| ARC protocol | ISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC-09: ARC accessible (ADM-CID/SIA-DCS) CSV-IP: Supports CSV-IP ISUP: Supports ISUP 5.0 |
| Programming tools | Web/iVMS-4200/Hik-ProConnect/Keypad |
| Firmware upgrade | Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect |
| End of Line Resistance | Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K |
| Hardware features | |
| Alarm input | 64 (Including 8 on-board zones) |
| Alarm output | 64 (Including 2 on-board relay outputs and 2 on-board I/O outputs) |
| Power Output | 1. Bell: maximum 12V 1.2A 2. AUX: maximum 12V 1.5A 3. Bell and AUX maximum 12V 2.1A |
| 3/4G on board | Optional |
| GPRS on board | Optional |
| Wi-Fi | 802.11b/g/n (2.4GHz) |
| Bus | 1 Speed-X bus |
| Sounder output | 1 Wired on-board sounder output |
| Tamper-Proof | 1 switch to detect removal from mounting 1 switch to detect front cover open |
| Netowrk interface | 1 RJ45 10M/100M Ethernet interface |
| Electrical characteristics | |
| Power interface | 100 to 240 VAC (on-board power transformer) |
| Power Consumption | 1. 220V power supply ① With an alarm: 2A, 32W ② Without an alarm: 250mA, 4W 2. 13.5V battery supply ① With an alarm: 1.7A, 25W ② Without an alarm: 200mA, 2.7W |
| Battery type | Lead acid battery (12V 7Ah, battery is not included by default) |
| Battery life span | Up to 36hrs |
| Display | |
| Indicator | 4 On-board LEDs: ① 1 AC power LED indicator (Green) ② 1 System status LED indicator (Green/Red) ③ 1 PSTN status LED indicator (Green/Red) ④ 1 Mobile communication status LED indicator (Green/Red) |
| General | |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
| Shell material | Plastic |
| Color | White |
| Dimension(WxHxD) | 261 mm × 199 mm × 86.4 mm |
| Weight | 997 g |
| Device management | |
| Tag | 64 |
| Keyfob | 64 |
| Keypad | 8 |
| Wireless sounder | 16 |
- Bảo hành: 24 tháng.
