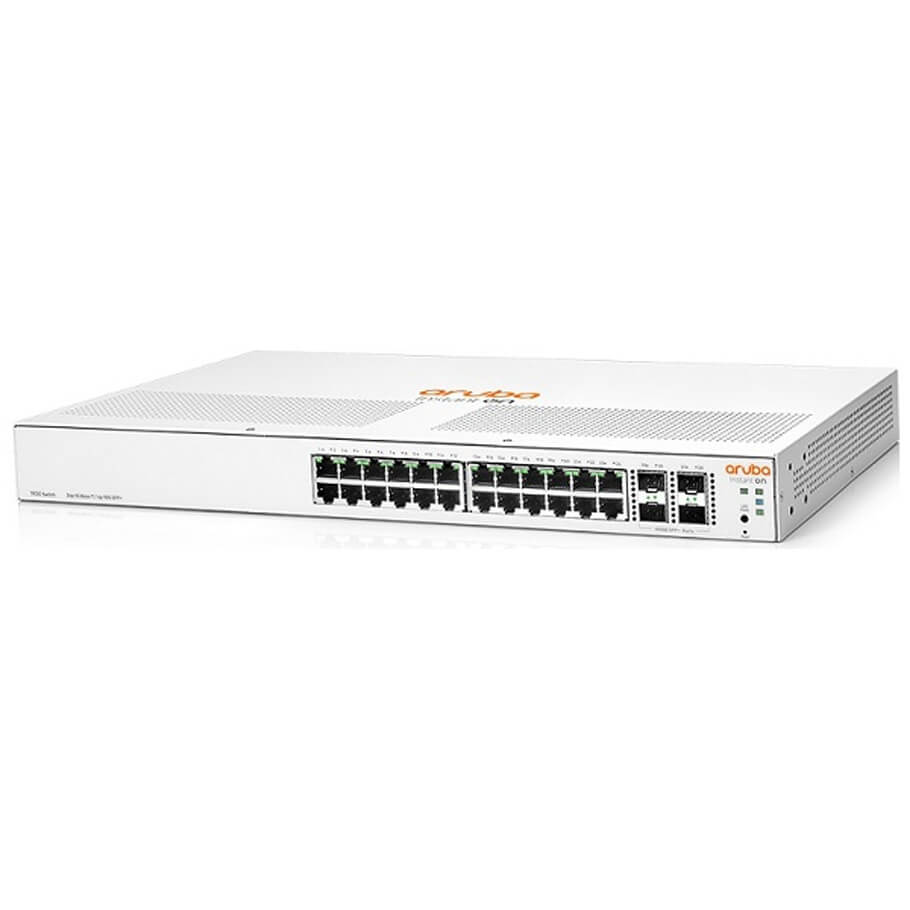

Aruba Instant On 1930 24G 4SFP/SFP+ Switch JL682A
- Support 24 RJ-45 autosensing 10/100/1000 ports; 4 SFP/SFP+ 1000/10000 Mbps ports.
- CPU: ARM Cortex-A9 @ 800 MHz.
- Memory And Flash: 512MB SDRAM, 256MB flash.
- Packet buffer: 1.5MB.
- Dimensions (W x D x H): 44.25 x 22.15 x 4.39 cm (1U height).
- Weight: 2.41kg.
Specifications
| Model | JL682A |
| General | |
| I/O Ports and Slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports |
| CPU | ARM Cortex-A9 @ 800 MHz |
| Memory And Flash | 512 MB SDRAM 256 MB flash |
| Packet Buffer | 1.5 MB |
| Safety | UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
| Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
| Device Management | Aruba Instant On solution; Web browser; SNMP Manager |
| Performance | |
| 100Mb latency | 100Mb latency: < 4.7 uSec Packet size: 64B |
| 1000Mb latency | 1000Mb latency: <2.4 uSec Packet size: 64B |
| 10000Mb latency | 10000Mb latency: <1.3 uSec Packet size: 64B |
| Throughput | Throughput (Mpps): 95.23 Mpps Packet size: 64B |
| Switching capacity | 128 Gbps |
| Routing table size (# of static entries) | 32 |
| MAC address table size (# of entries) | 16,000 |
| Reliability MTBF (years) | 158 |
| Physical Characteristics | |
| Dimensions (W x D x H) | (44.25 x 22.15 x 4.39 cm (1U height) |
| Weight | 2.41 kg |
| Environment | |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) |
| Non-operating temperature | ‑40°F to 158°F (‑40°C to 70°C) |
| Non-operating relative humidity | 15% to 95% @ 140°F (60°C) |
| Altitude | Up to 10,000ft (3.048 Km) |
| Acoustic | Power: 0 dB (no fan) |
| Electrical Characteristics | |
| Frequency | 50-60 Hz |
| AC voltage | 100-240V |
| Current | 0.5/0.3 A |
| Maximum power rating | 22.6 W |
| Idle power | 9.3 W |
| Power supply | Internal power supply |
- Bảo hành: 3 năm.
