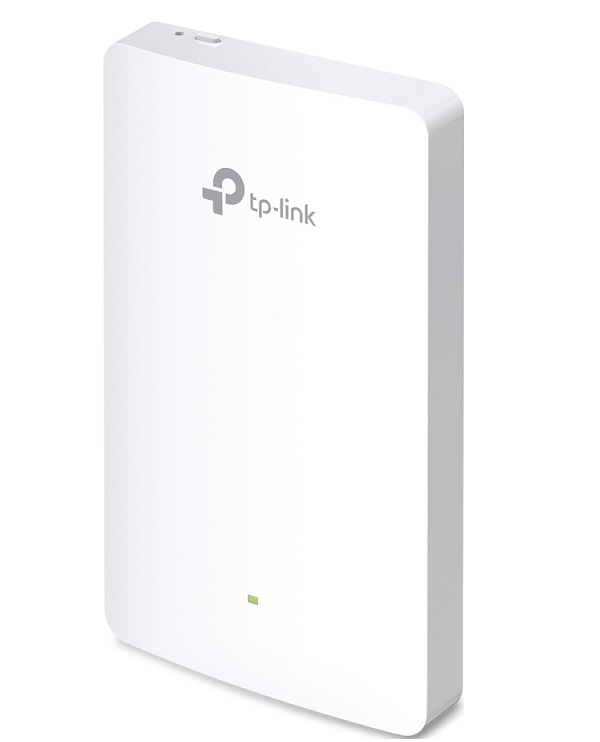

AC1200 Wireless MU-MIMO Wall Plate Access Point TP-LINK EAP225-Wall
- AC1200 wireless with 100Mbps Ethernet backhaul.
- Designed for office cubical and hotel room wired and wireless connections.
- Easy-mount construction allows installation into 1-gang electric wall-box.
- Compact, low-profile design fits discreetly with any existing interior style.
- Free cloud management and Omada App supported for ultra convenience and easy management.
- Power over Ethernet (802.3af/802.3at) support makes deployment effortless and flexible.
- Enterprise-class Wi-Fi security helps to decrease network security threats.
- Supports management VLAN for an enhanced network management.
Specifications
| HARDWARE FEATURES | |
| Interface | 1 × 10/100Mbps Ethernet uplink port accepts 802.3af/at power supply as PoE power device (PD) 2 × 10/100Mbps Ethernet Port 1 × 10/100Mbps with PoE pass-thru (requires 802.3at PoE+ power supply on PD port.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af or 802.3at PoE |
| Power Consumption | 9 watts or 25.5 watts including PoE Out |
| Dimensions | 5.6 × 3.4 × 0.8 in. (143 × 86 × 19.7mm) |
| Antenna | 2 Dual-Band Antennas 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi |
| Mounting | Wall Plate Mounting |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Wireless Functions | 16 SSIDs（Up to 8 SSIDs on each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Local LAN port based VLAN Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| Transmission Power | CE: ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP) FCC: ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz) |
| MANAGEMENT | |
| Omada Cloud Access | Yes |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| Telnet | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Installation Guide Mounting Screw |
| System Requirements | EAP discover utility: Microsoft Windows or MAC OS EAP software controller: Microsoft Windows (64-bit and 32-bit or Linux (64bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
