0916 287 068 8-Port 10/100 PoE Switch D-Link DES-F1010P-E
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng D-Link >> 8-Port 10/100 PoE Switch D-Link DES-F1010P-E
Mã số:04051542

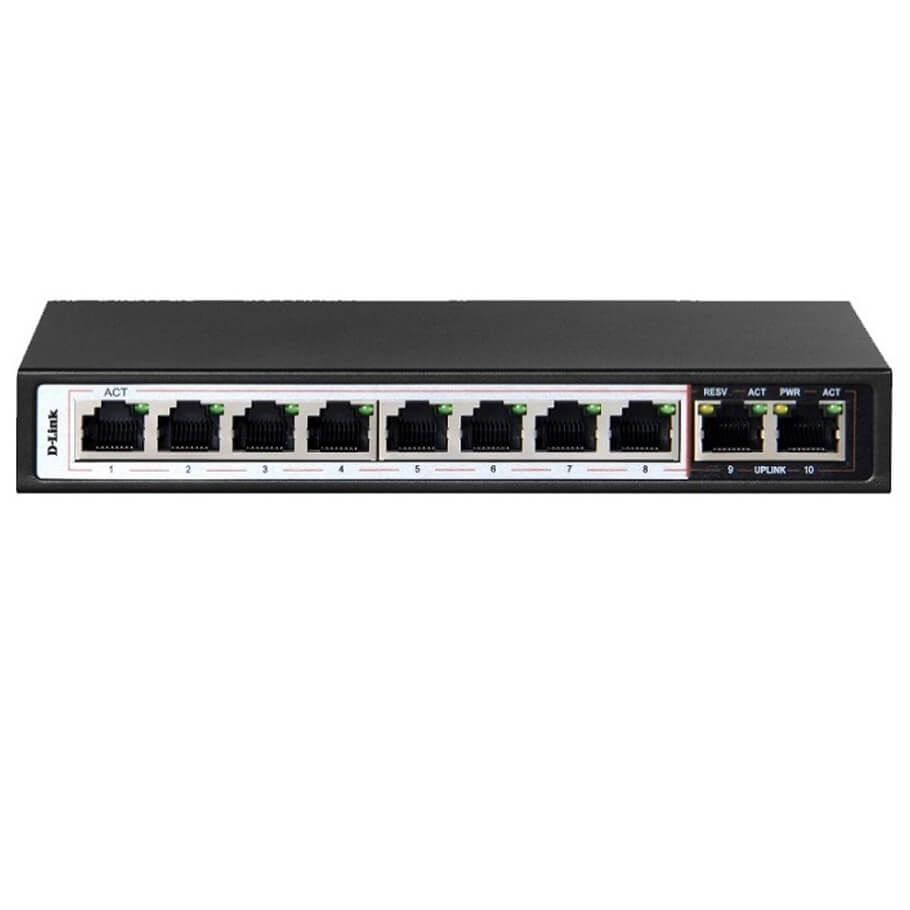

8-Port 10/100 PoE Switch D-Link DES-F1010P-E
High-Speed Networking
- 10/100 Mbps Ethernet ports
- Full/half-duplex for Ethernet/Fast Ethernet
Functions
- VLAN
- EXTEND
- PoE
Easy Setup
- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports
Stylish Design
- Compact lightweight chassis
- Noise-free operation
PoE Functionality
- PoE ports
- IEEE 802.3af/at compliant
- 96 W total power budget
- Up to 30 W power output per PoE port
Specifications
| General | |
| Size | Desktop |
| Interfaces | 8 10/100 BASE-T ports 2 10/100 BASE-T Uplink ports |
| Standards | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x ow control |
| Media Interface Exchange | Auto MDI/MDI-X adjustment on all ports |
| Lighting Protection | 6KV |
| Performance | |
| Switching Fabric | 2Gbps |
| Transmission Method | Adopt Store-and-forward |
| Data Transfer Rates | Fast Ethernet: 100 Mbps Ethernet: 10 Mbps |
| Packet Filtering / Forwarding Rates | 10M port maximum 14800pps 100M port maximum 148800pps |
| PoE | |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| PoE-Capable Ports | Ports 1 to 8 |
| Power Budget | 96 W (36 W max. per PoE port) |
| Physical | |
| LED Power | Yes |
| LED Link/Activity | Yes |
| Weight | 0.95kg |
| Dimensions | 184 x 75 x 27 mm |
| Power | External power adapter: 96W |
| Temperature | Operating: 0 to 40 ˚C (32 to 104 ˚F) |
| Humidity | Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing |
- Bảo hành: 36 tháng.
Giá: 996.000 VND
(Đã bao gồm VAT)
