0916 287 068 5GHz AC 867Mbps 23dBi Outdoor CPE TP-LINK CPE710
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng TP-LINK >> 5GHz AC 867Mbps 23dBi Outdoor CPE TP-LINK CPE710
Mã số:04100628

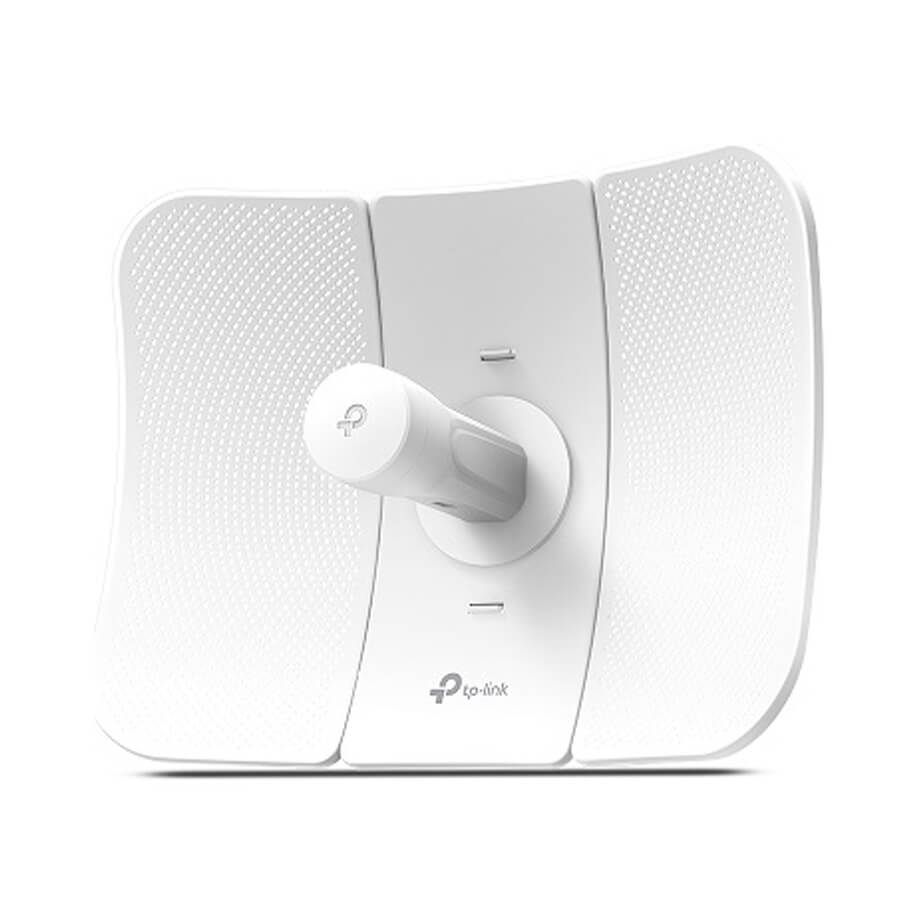

5GHz AC 867Mbps 23dBi Outdoor CPE TP-LINK CPE710
- 802.11ac for up to 867Mbps on 5GHz wireless data rate.
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application.
- Excellent beam directivity, improved latency and noise cancellation.
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds.
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability.
- Pharos Control gives administrators a free, centralized management system.
- Passive PoE supports to allow flexible deployment and convenient installation.
Đặc tính kỹ thuật
| HARDWARE FEATURES | |
| Processor | Qualcomm 750MHz CPU, MIPS 74Kc |
| Memory | 128MB DDR2 RAM, 16MB Flash |
| Interface | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC |
| Dimensions ( W x D x H ) | 366 x 280 x 207 mm |
| Antenna Gain | 23 dBi |
| Antenna Beamwidth | 9° (Azimuth)/7° (Elevation) |
| Protection | 15 KV ESD Protection 6 KV Lightning Protection |
| Enclosure | Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac |
| Wireless Speeds | Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) |
| Frequency | 5.15–5.85 GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmit Power | Max. 27 dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
| Network Configuration | WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding |
| Wireless Configurations | Selectable channel width: 20, 40 or 80MHz Automatic Wi-Fi channel selection RF transmit power adjustment in 1 dB step Dynamic Frequency Selection (DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, SSID broadcast enable/ disable Multi-SSID with VLAN tagging in AP mode Distance/ ACK timeout setting Wireless MAC address filter Wireless advanced features: Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia Long range point-to-point |
| Management | Discovery and Remote Management with Pharos Control (Windows) HTTP/ HTTPS Web-based management System log SNMP agent (v2c) Ping watchdog Dynamic DNS SSH server |
| System Tools | Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment |
| System-level Optimizations | Optimized IGMP Snooping / Proxy for multicast applications |
| PoE ADAPTER FEATURES | |
| Dimensions (W x D x H) | 85 × 44 × 30 mm |
| Interfaces | 1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | > 84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| Certification | CE, FCC, RoHS, IP65 |
| Package Contents | Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide |
| Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
- Bảo hành: 36 tháng.
Giá: Vui lòng gọi
(Đã bao gồm VAT)
