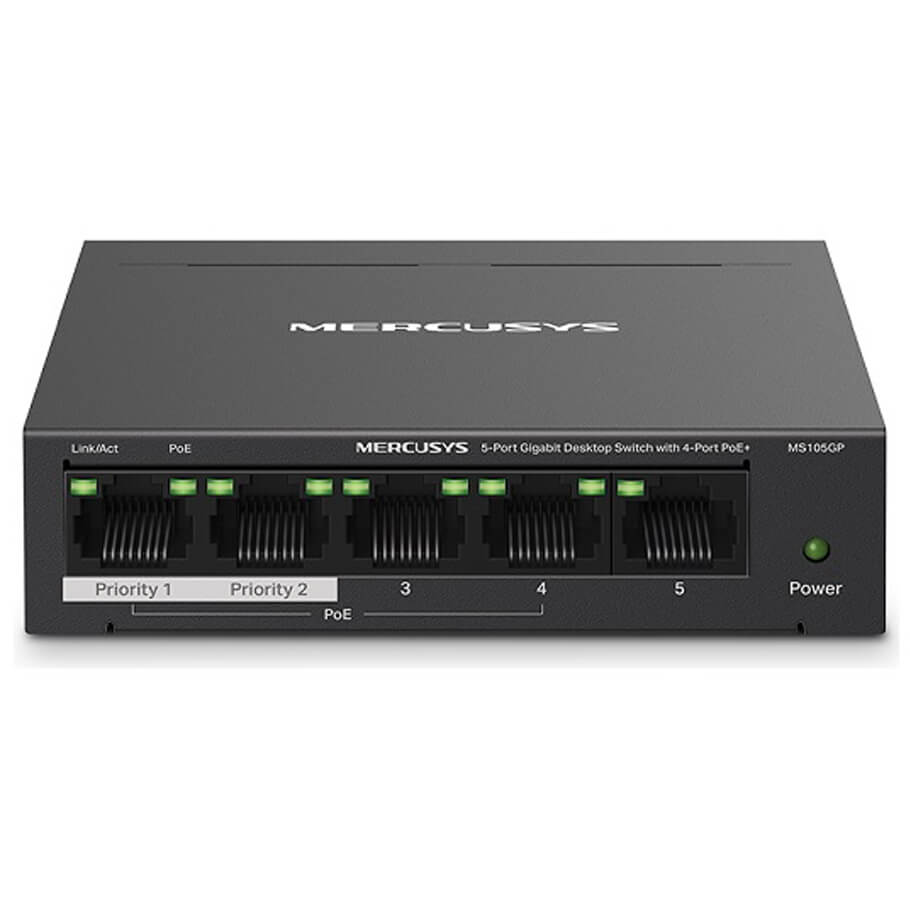

5-Port Gigabit Desktop Switch MERCUSYS MS105GP
5-Port Gigabit Desktop Switch MERCUSYS MS105GP
- 5-Port Gigabit Desktop Switch with 4-Port PoE+.
- Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports.
- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable.
- High Power PoE+: Support PoE Power up to 30W for each PoE port and 65W for all PoE ports.
- Long-Range up to 250m: Increases PoE transmission distance to 250m by Extend Mode.
- Isolation Mode: One click to divide traffic for specific ports for stability and security.
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs.
- Durable Metal Casing: Allows for efficient heat dissipation and long network life.
- Plug and Play: Simple to use and saves time and effort.
Thông số kỹ thuật
Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
Interface | 5× 10/100/1000 Mbps RJ45 ports |
Network Media (Cable) | 10BASE-T:2-pair UTP/STP (≤100m) of Cat. 3 or above 100BASE-TX:2-pair UTP/STP (≤100m) of Cat. 5 or above 1000BASE-T:4-pair UTP/STP (≤100m) of Cat. 5e or above |
PoE | PoE Standard: compatible with 802.3af/at PDs PoE Port 1–4, up to 30 W per port PoE Power Budget 65 W* |
Auto-Negotiation | YES |
Auto MDI/MDIX | YES |
PoE Power on RJ45 | Power+: pin 3 & pin 6 Power -: pin 1 & pin 2 |
Max Power Consumption | 3.13W (22/50 Hz, no PD connected) 75.15W (220/50 Hz, with 65W PD connected) |
Max Heat Dissipation | 10.64 BTU/h (no PD connected) 255.51 BTU/h (with 65 W PD connected) |
Forwarding Mode | Store and Forward |
Switch Capacity | 10 Gbps |
MAC Address Table | 2k, Auto-learning, Auto-aging |
Extend Mode | YES |
Isolation Mode | YES |
Flow Conrol | YES |
Fanless | YES |
LED | Power, Link/Act, PoE Status |
Dimensions | 99.8 x 98 x 25 mm |
Certification | CE, RoHS |
Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90% RH, non-condensing Storage Humidity: 5% to 90% RH, non-condensing |
- Bảo hành: 24 tháng.
