0916 287 068 48-Port Partial PoE+ Switch Cisco C9200-48PL-E
Trang Chủ >>
Thiết bị mạng >> SWITCH CISCO >> 48-Port Partial PoE+ Switch Cisco C9200-48PL-E
Mã số:04124202

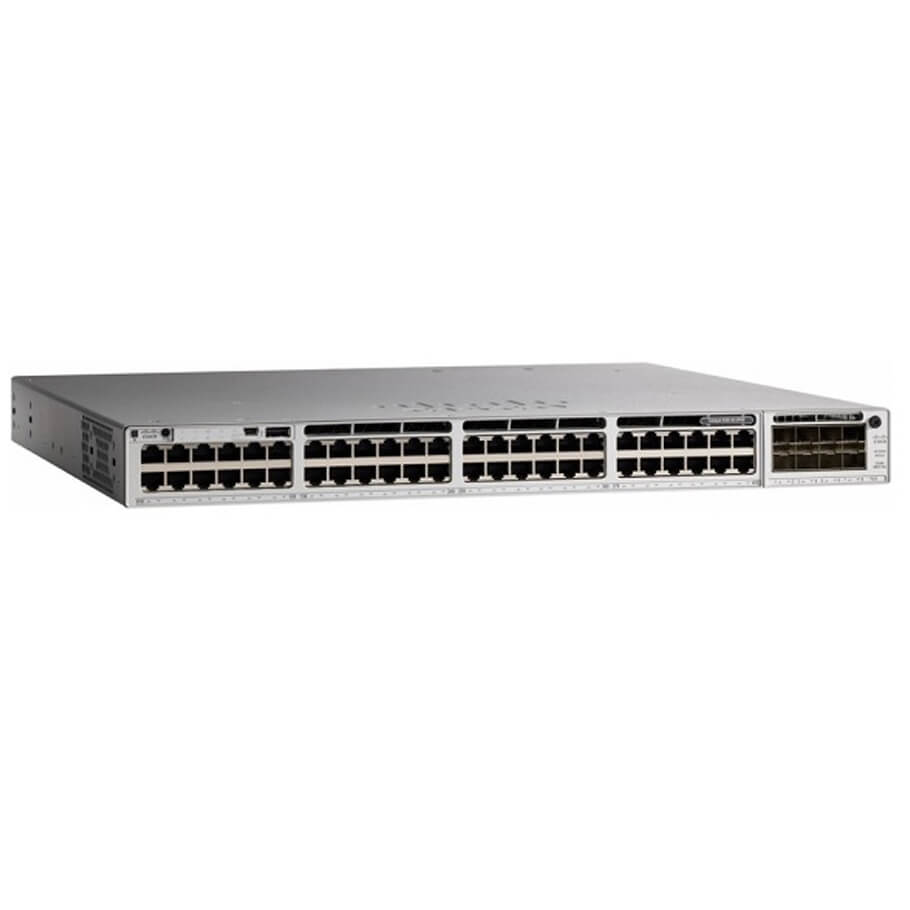

48-Port Partial PoE+ Switch Cisco C9200-48PL-E
- Catalyst 9200 48-Port partial PoE+ Switch, Network Essentials.
- Downlinks total 10/100/1000 or PoE+ copper ports: 48 Ports partial PoE+.
- Uplink configuration: Modular uplink options.
- Default primary AC power supply: PWR-C6-600WAC.
- Stacking bandwidth: 160Gbps.
- DRAM: 4GB.
- Flash: 4GB.
- Switching capacity: 176Gbps.
- Switch capacity with Stacking: 336Gbps.
- Forwarding rate: 130.95Mpps.
- Forwarding rate with Stacking: 250Mpps.
- Chassis Dimensions: 4.4 x 44.5 x 35.0 cm.
- Weight: 5.5kg.
Thông số kỹ thuật
| Configurations | |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 Ports partial PoE+ |
| Uplink configuration | Modular uplink options |
| Default primary power supply | PWR-C6-600WAC |
| Fans | FRU redundant |
| PoE+ Power with primary and secondary power supplies | |
| Primary power supply | PWR-C6-600WAC |
| Available PoE power with single primary power supply only | 370W |
| Optional secondary power supply | PWR-C6-600WAC |
| Available PoE power with additional secondary power supply | 740W |
| Stacking | |
| Stacking support | StackWise-160 |
| Stacking bandwidth support | 160 Gbps |
| Stacking hardware | C9200-STACK-KIT |
| Number of members | 8 |
| Performance specifications | |
| Virtual Networks | 4 |
| Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer | 6MB |
| Flexible NetFlow (FNF) entries | 16,000 |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| PVST Instances | 128 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | 48Gbps |
| IP SGT binding scale | 8K |
| Number of IPv4 bindings | 8K |
| Number of SGT/DGT policies | 2K |
| Number of SXP Sessions | 200 |
| Bandwidth specifications | |
| Switching capacity | 176 Gbps |
| Switch capacity with Stacking | 336 Gbps |
| Forwarding rate | 130.95 Mpps |
| Forwarding rate with Stacking | 250 Mpps |
| General | |
| Chassis Dimensions | 4.4 x 44.5 x 35.0 cm |
| Chassis + FEP + Fan Dimensions (HxWxD) | 4.4 x 44.5 x 39.1 cm |
| Weights | 5.5kg |
| Mean time between failures (hours) | 375570 hours |
| Safety certifications | - IEC 60950-1/62368-1 - UL 60950-1/62368-1 - CAN/CSA C22.2 No. 60950-1/62368-1 - EN 60950-1/62368-1 - AS/NZS 60950.1, AS/NZS 62368.1 - Class I Equipment |
| Electromagnetic compatibility certifications | - 47 CFR Part 15 - CISPR 32 Class A - CNS 13438 - EN 300 386 * - EN 55032 Class A - EN61000-3-2 - EN61000-3-3 - ICES-003 Class A - KN 32 - TCVN 7189 Class A - V-3 Class A - CISPR 35 - EN 300 386 * - EN 55035 - KN 35 - TCVN 7317 |
- Bảo hành: 12 tháng.
Giá: 141.609.000 VND
(Đã bao gồm VAT)
