0916 287 068 48-Port Gigabit + 4-Port 2.5GE SFP Managed Switch RUIJIE RG-S2915-48GT4MS-L

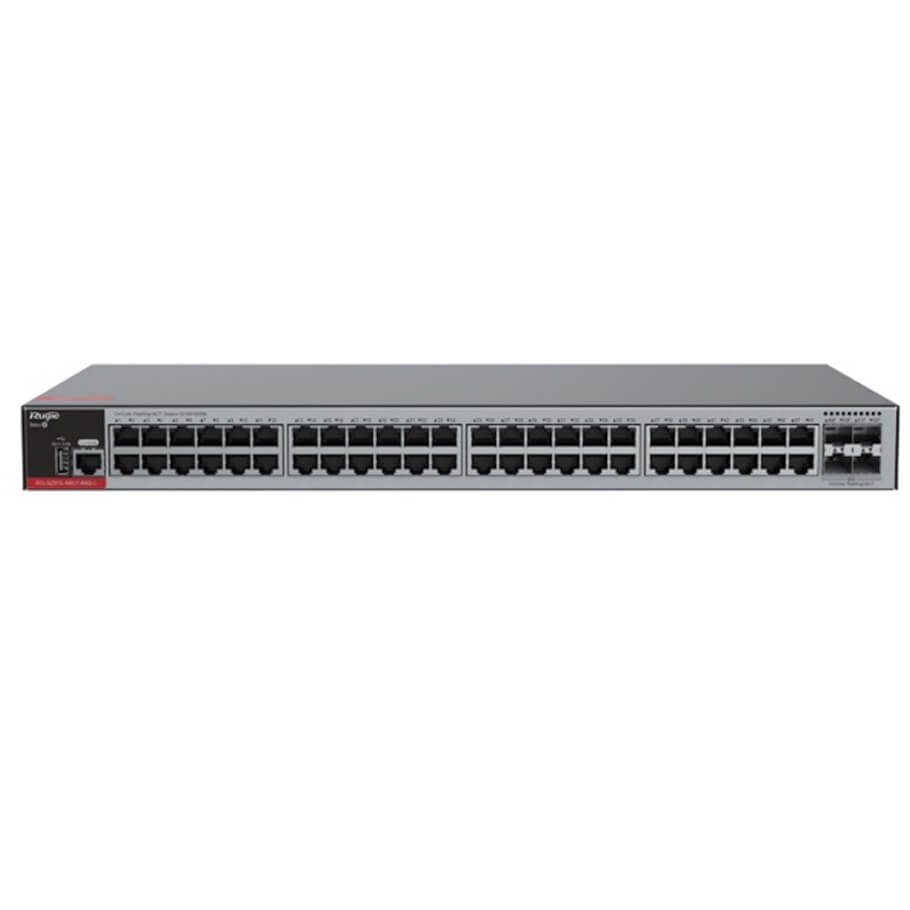

48-Port Gigabit + 4-Port 2.5GE SFP Managed Switch RUIJIE RG-S2915-48GT4MS-L
- 48-Port Gigabit Layer 2+ Managed Switch with Four 2.5GE Uplink SFP Ports.
- Switching capacity: 116Gbps.
- Forwarding rate: 87Mpps.
- Capacity of MAC address table: 16000.
- 2.5G uplink, breaking the Gigabit bottleneck, supporting access for more types of devices, and cooperating with the S6120 switch for 10G networking.
- Unique CPU protection policy, ensuring stability of the switch and nonstop services.
- RLDP used to provide smooth network connections.
- 10kV surge protection for ports and high reliability.
- Compliance with standard protocols and application in various scenarios.
- Ease of use through Ruijie Cloud for management and remote O&M.
- Operating temperature: 0°C to 45°C (32°F to 113°F).
- Dimensions (W x D x H): 440 × 220 × 43.5 mm.
Specifications
| Interface Specifications | |
| Fixed Service Ports | 48 × 10/100/1000Base-T Ethernet ports with autonegotiation, 4 × 2.5GE/1GE SFP ports |
| Power modules | 1 fixed power module |
| Fans modules | 2 fixed fans |
| Fixed management ports | 1 × RJ45 Console, 1 × USB port |
| System Specifications | |
| Packet forwarding rate | 87 Mpps |
| System Switching capacity | 116Gbps |
| MAC Table Capacity | 16000 |
| ARP table | 512 |
| Routing Table Size (IPv4/ IPv6) | 64 |
| ACL entries | 500 |
| Dimensions and Weight | |
| Dimensions (W x D x H) | 440 mm × 220 mm × 43.5 mm (17.32 in × 8.66 in × 1.71 in), 1 RU |
| Weight | 2.8 kg (6.17 lbs) |
| CPU and Storage | |
| CPU | Built-in CPU, single-core processor, with the clock speed of 1.2 GHz |
| Storage | SDRAM: 512 MB Flash Memory: 64 MB |
| Power and Consumption | |
| Maximum power consumption | < 30 W |
| Rated input voltage | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Maximum input voltage | 90 V AC to 264 V AC, 50 Hz to 60 Hz |
| Environment and Reliability | |
| MTBF | >200K |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Operating noise | ≤ 37 dB |
| Interface surge protection | Power port: 6 kV/2 kV Telecom port: 10 kV |
- Bảo hành: 3 năm.
