0916 287 068 48-Port 2.5GbE PoE+ + 4-Port 1/10G SFP+ Enterprise Switch UBIQUITI UniFi USW-Enterprise-48-PoE
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng UBIQUITI UniFi >> 48-Port 2.5GbE PoE+ + 4-Port 1/10G SFP+ Enterprise Switch UBIQUITI UniFi USW-Enterprise-48-PoE
Mã số:04284976

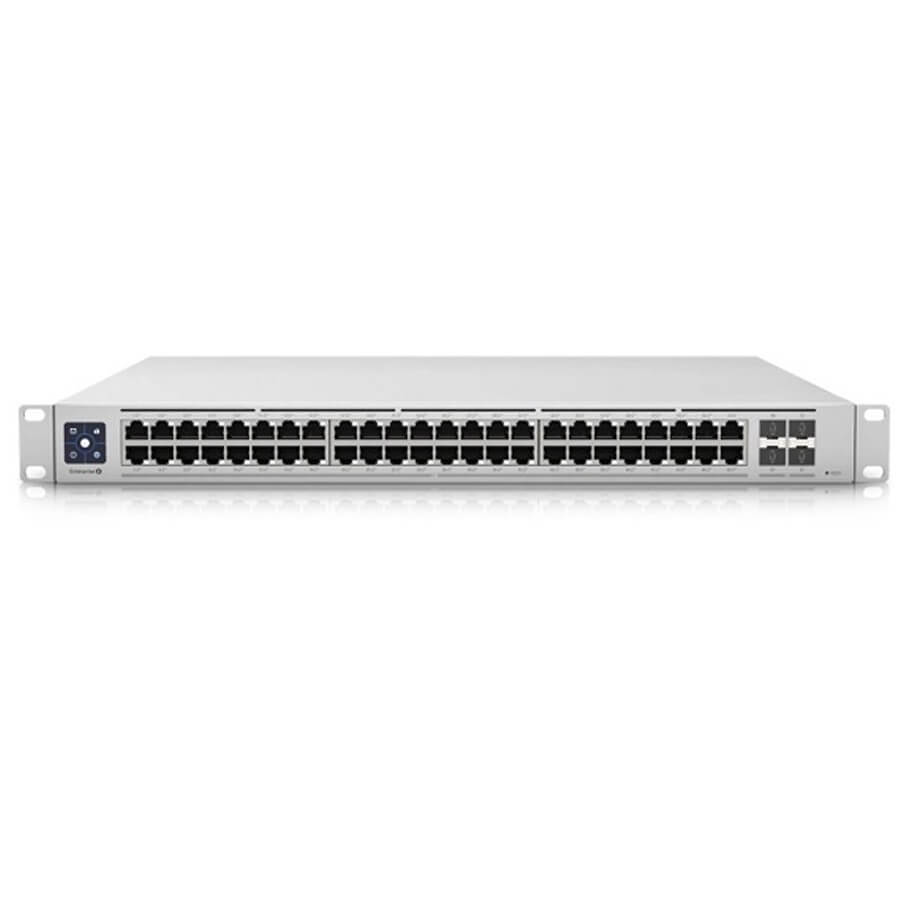

48-Port 2.5GbE PoE+ + 4-Port 1/10G SFP+ Enterprise Switch UBIQUITI UniFi USW-Enterprise-48-PoE
- Support 48 2.5GbE PoE+ ports.
- Support 10G SFP+ ports.
- 720W total PoE availability.
- DC power backup-ready.
- Layer 3 switching.
Đặc tính kỹ thuật
| Mechanical | |
| Dimensions | 442 x 44 x 400 mm |
| Weight | Without mounting brackets: 6.2kg With mounting brackets: 6.3kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (48) 2.5 GbE RJ45 ports |
| Management interface | Ethernet In-Band |
| SFP+ interface | (4) 1/10G SFP+ ports |
| PoE interface | (48) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 160 Gbps |
| Switching capacity | 320 Gbps |
| Forwarding rate | 238.095 Mpps |
| Max. power consumption | 150W (Excluding PoE output) |
| Power method | (1) Universal AC input, 100-240V AC, 10A Max, 50/60 Hz (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A |
| Power supply | AC/DC, internal, 100-240V, 10A Max. |
| Total available PoE | 720W |
| Max. PoE+ wattage per port by PSE | 34.2W |
| Voltage range PoE mode | 44-57V |
| Voltage range PoE+ mode | 50-57V |
| Services | SMB Layer 3 PoE GbE Switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3 inch LCM color touchscreen Bootup animation: bootup in progress Firmware upgrade icon: firmware upgrading |
| Button | Factory reset |
| Operating temperature | -5 to 40°C (23 to 104°F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
