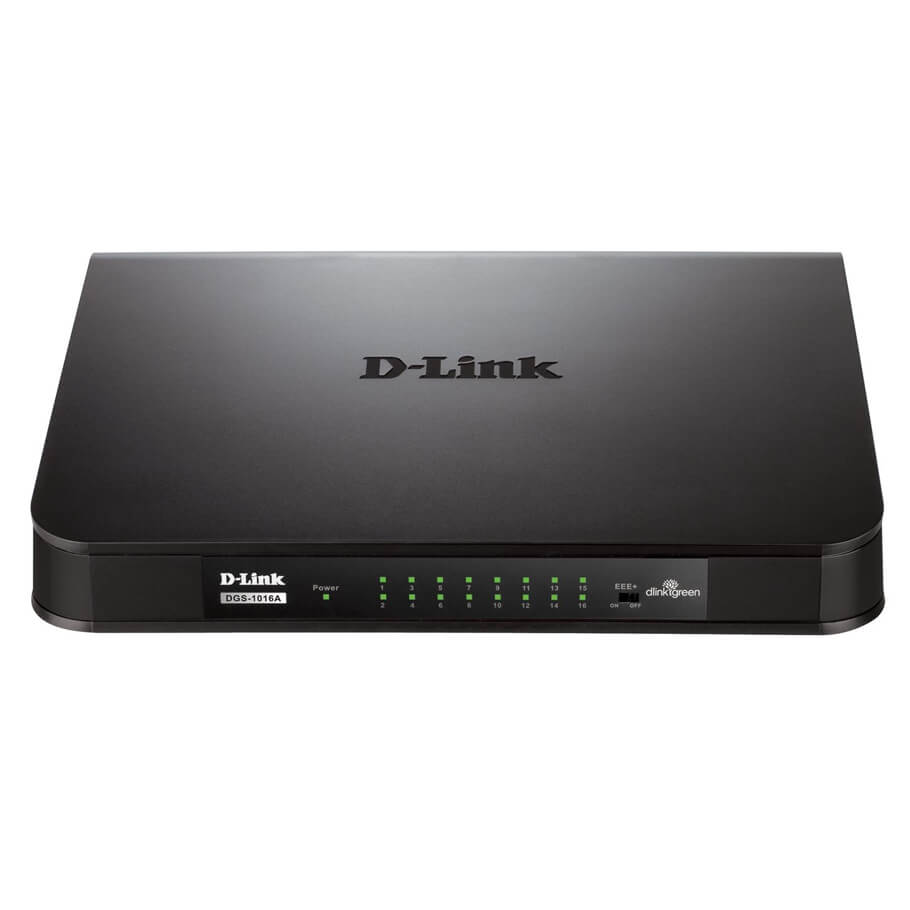

0916 287 068 16-Port Gigabit Switch D-Link DGS-1016A
16-Port Gigabit Switch D-Link
DGS-1016A
–
Hỗ trợ 16 port
10/100/1000Mbps RJ45.
–
Hỗ trợ MDI-MDIX,
Plug & Play.
–
Tự động dò tìm tốc
độ, hỗ trợ tính năng chuyển mạch Store & Forward.
–
Vật liệu: Vỏ nhựa.
Features
–
16 Gigabit
Ethernet ports for fast network speeds.
–
Industry-first
plastic case for better heat dissipation and a compact size.
–
Fanless design for
silent operation.
–
Performance
–
IEEE 802.3x Flow
Control.
–
Auto MDI/MDI-X
crossover for all ports.
–
Full/ half-duplex
for Ethernet/Fast Ethernet speeds.
–
Supports 9216 Byte
Jumbo Frames.
–
Energy Efficiency
–
Innovative D-Link
Green Ethernet Technology conserves energy.
–
Link status
detection reduces power usage.
–
Cable length
detection uses energy more efficiently.
–
802.3az EEE
hardware implementation reduces power consumption significantly.
–
RoHS compliant.
–
Easy Installation
– Plug-and-play installation saves you time.
Specifications
|
Number
of Ports |
Sixteen 10/100/1000 Gigabit ports |
|
Standards |
IEEE
802.3, 10BASE-T Ethernet |
|
IEEE
802.3u, 100BASE-TX Fast Ethernet |
|
|
IEEE
802.3ab, 1000BASE-T Gigabit Ethernet |
|
|
ANSI/
IEEE 802.3 NWay auto-negotiation |
|
|
IEEE
802.3x Flow Control |
|
|
Data
Tranfer Rates |
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) |
|
Fast
Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) |
|
|
Gigabit
Ethernet: 2000 Mbps (full duplex) |
|
|
Network
Cables |
10BASE-T: UTP CAT 3, 4, 5/5e (100 m max), EIA/TIA-586 100-ohm STP (100 m
max) |
|
100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max), EIA/TIA-568 100-ohm
STP (100 m max |
|
|
D-Link
Green Features |
IEEE
802.3az Energy Efficient Ethernet (EEE) |
|
Link
status detection power saving |
|
|
Cable
length detection power saving |
|
|
RoHS
Compliance |
|
|
LAN
Features |
Back
pressure at half-duplex operation |
|
Auto
MDI/MDIX |
|
|
Wire
speed reception and transmission |
|
|
Store-and-Forward switching method |
|
|
8K MAC
addresses |
|
|
2 Mbits
RAM for data buffering |
|
|
Jumbo
Frames: 9216 Bytes |
|
|
Switching Capacity 32 Gbps |
|
|
Port
Packet Filtering |
10M:
14,880 pps |
|
100M:
148,800 pps |
|
|
1000M:
1,488,000 pps |
|
|
LEDs |
Power
LED |
|
16
Link/Activity/ Speed LEDs (one per port) |
|
|
Power
Inputs |
Power
Inputs Switching 12V/ 1A level V power adapter |
|
Power
Consumption |
Power on
(standby): 2.64 Watts |
|
Power
max: 9 Watts |
|
|
MTBF |
319,267
hours |
|
Certifications |
FCC
Class A |
|
ICES-003
Class A |
|
|
CE Class
A |
|
|
C-Tick
Class A |
|
|
CB |
|
|
CUL |
|
|
Dimensions |
231 x
158 x 46 mm |
|
Weight |
0.58 kg |
–
Bảo hành: 36 tháng.
