0916 287 068 16-port Gigabit PoE + 4G SFP Managed Industrial Switch GNETCOM G-IES416GS-M-SFP
Trang Chủ >>
Chuyển đổi Quang-điện >> Media Converter GNETCOM >> 16-port Gigabit PoE + 4G SFP Managed Industrial Switch GNETCOM G-IES416GS-M-SFP
Mã số:03507901

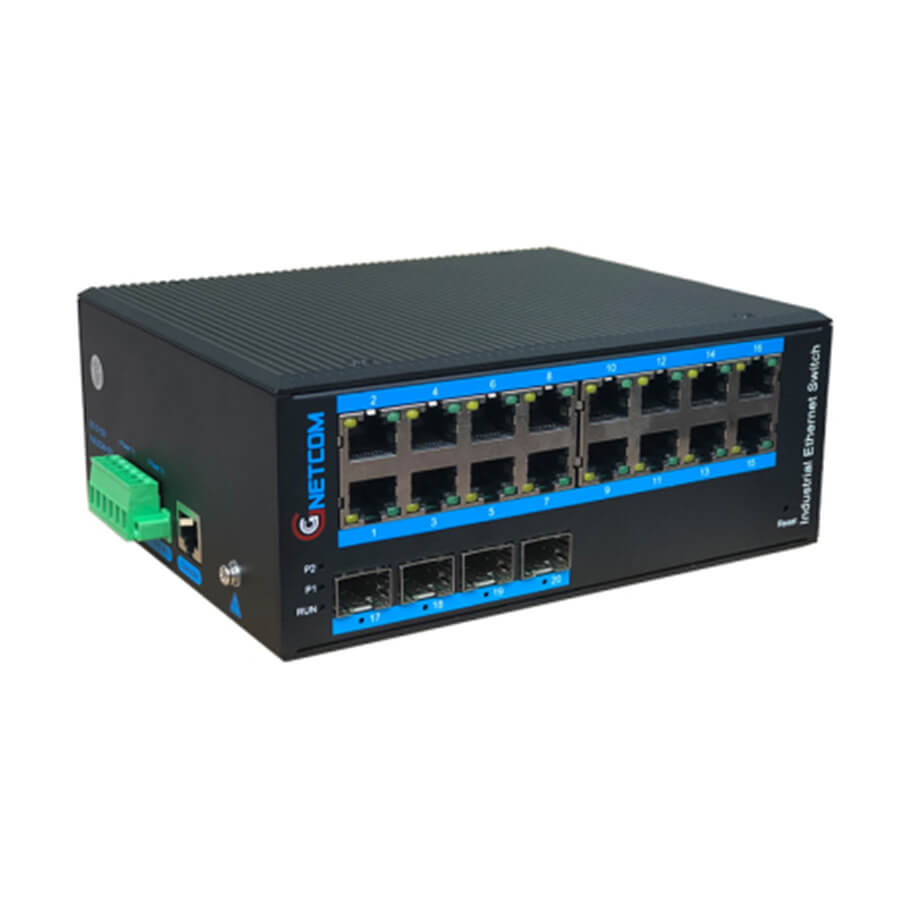

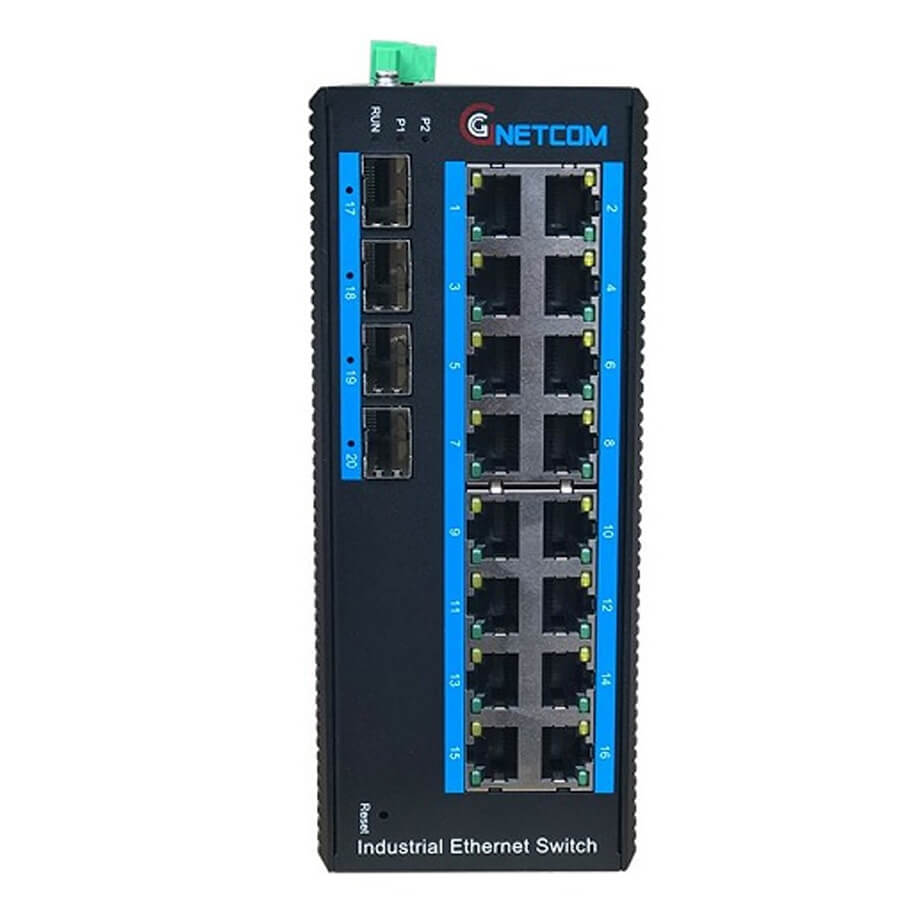

16-port Gigabit PoE + 4G SFP Managed Industrial Switch GNETCOM G-IES416GS-M-SFP
- Switch quang PoE công nghiệp quản lý L2.
- Hỗ trợ 16 cổng 10/100/1000M PoE + 4G SFP 1000Base-FX Port.
- Nguồn điện vào: 48-57V DC.
- Nhiệt độ hoạt động: -40~80℃.
Thông số kỹ thuật
| 10/100/1000Base-TX Port | 16-Port RJ-45 auto-MDI / MDI-X |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1-16 port support PoE(max.) | |
| Power Output: | |
| Max. 15.4 watts (IEEE 802.3af) | |
| Max. 30 watts (IEEE 802.3at) | |
| PoE port Auto detect af/at devices | |
| Output Voltage: DC48V | |
| Power Pin Assignment:1/2+;3/6- | |
| Power Type: End-span( Mid-span optional) | |
| 1000Base-FX Port | 4G SFP Slot |
| Performance Specification | Bandwidth: 56Gbps |
| Packet Buffer Memory: 12Mbit | |
| Packet Forwarding Rate: 42Mpps | |
| MAC Address Table: 8K | |
| Installation | DIN rail |
| Maximum Frame Size | 10240bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP40 Aluminum housing |
| LED Indicator | Power: Red |
| Fiber: Link 2(Green) | |
| Ethernet: Yellow | |
| Power Input | 48 to 57V DC redundant power |
| Power Consumption | < 10watts |
| Surge protection | CM±4KV, DM±2KV |
| Network Protocols | IEEE802.3 10BASE-T; |
| IEEE802.3i 10Base-T; | |
| IEEE802.3u;100Base-TX/FX; | |
| IEEE802.3ab 1000Base-T; | |
| IEEE802.3z 1000Base-X; | |
| IEEE802.3x; | |
| Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Industry Standard | FCC CFR47 Part 15,EN55032, Class A |
| IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) | |
| IEC61000-4-3 (RS): 10V/m (80~1000MHz) | |
| IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV | |
| IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV | |
| IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) | |
| IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) | |
| MTBF | 300,000hours |
| Dimensions (W x D x H) | 166×137×68.5mm |
| Weight | Product Weight: 1.18KG |
| Packing Weight: 1.3KG | |
| Working Environment | Working temperature: -40～80℃ ; |
| Storage temperature: -40～80℃ | |
| Relative Humidity: 5%~95 %( no condensation) |
- Bảo hành: 24 tháng.
Giá: Vui lòng gọi
