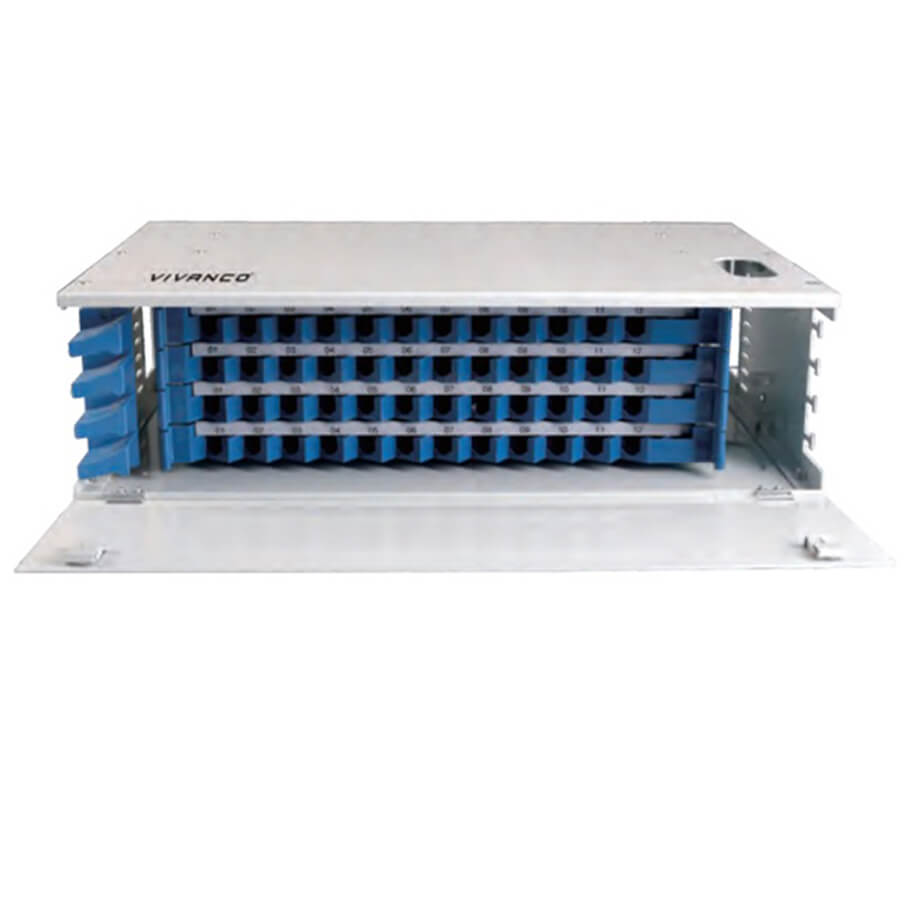

144 Port ODF Optical Distribution Frame VIVANCO VCFPDTNTCN1447

144 Port ODF Optical Distribution Frame VIVANCO VCFPDTNTCN1447

- 144 Port ODF (for 144 Core SC/FC, 288 Core Duplex LC, Adaptor Unloaded, 7.5U).

- 19 inch standard installation.

- Metal structure, electrostatic powder-coated surface, plastic components, light structure.

- Pull-out design with fiber splicing accessories.

- SC, LC duplex, FC, ST adaptors optional.

- Suitable for bundle and ribbon fiber cables, with sufficient storage space for both optical fiber cables and pigtails.

- Compliance: ISO/IEC11801, ANSI/TIA/EIA 568-C.3.

Specifications

- Material: SPCC.

- Distribution Board Material: PVC.

- Maximum Bending Space (mm): ≥30.

- Max Fiber Count: 192.

- Adaptor: SC, FC, ST, duplex LC.

- Insertion Loss (dB): ≤0.3.

- Return Loss (dB):  ≥45.

- Item Dimension (mm) 1U, 2U: 430 x 250 x 48mm.

- Item Dimension (mm) 3U, 4U: 485 x 300 x 130mm.

- Item Dimension (mm) 5U: 485 x 300 x 230mm.

- Hãng sản xuất VIVANCO của Germany.

- Sản xuất tại Trung Quốc.
