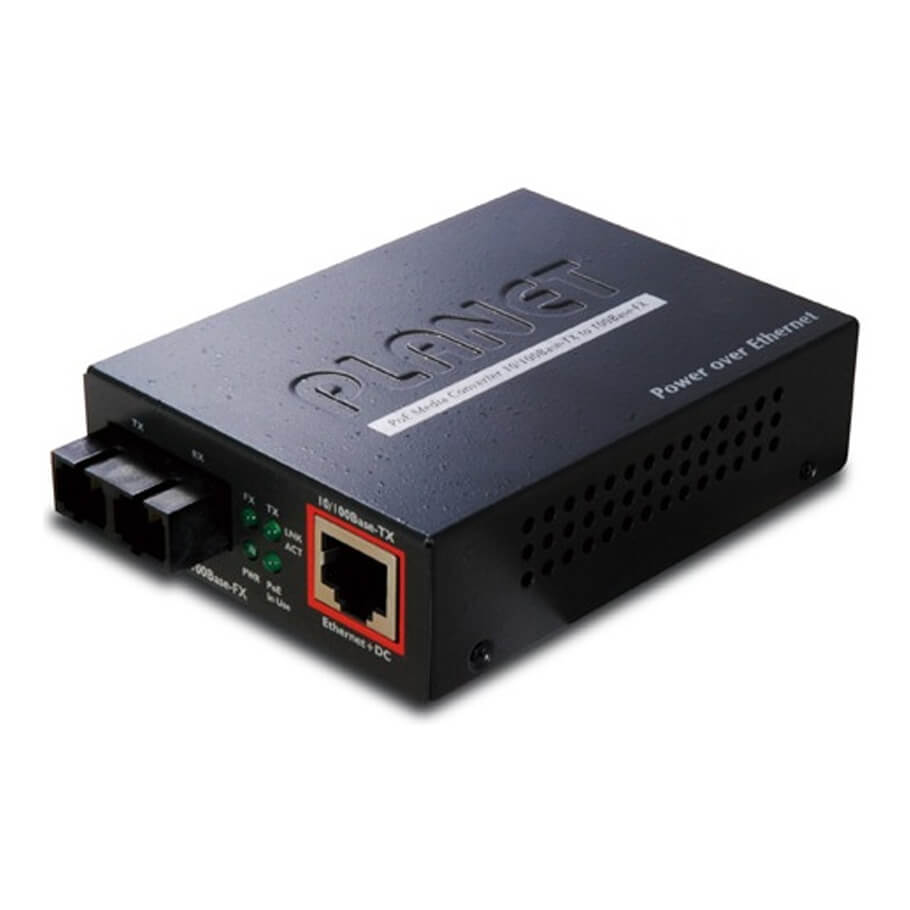

0916 287 068 100Base-FX to 10/100Base-TX PoE Media Converter PLANET FTP-802S15
100Base-FX to 10/100Base-TX PoE Media Converter PLANET FTP-802S15
- Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3afPower over Ethernet standards
- Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port
- IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss
- Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port
- Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation
- 100Base-FX interface for up to 15km (single-mode fiber 9µm/125µm) DIP-switch: LFP (Link Fault Pass-through) mode selection
- Compact in size, easy to install
- LED indicators for easy network diagnostics
Specifications
| Interface | |
| Copper | 1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function |
| Fiber | Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber |
| Fiber Port Type (connector) | SC |
| Cable Distance | 15km |
| Optical Frequency | 1310nm |
| Launch Power(dBm) | max. -7 min.-20 |
| Receive Sensitivity | -28 |
| Maximum Input Power | -8 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet |
| Power Output | PoE 48V DC, max. 15.4 watts, 350mA |
| Power Pin Assignment | 1/2(+) , 3/6(-) |
| Hardware | |
| Switch Architecture | Store-and-Forward |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| LED | System: Power, Status FX / LNK: Data Active, Fiber Link TX / LNK: 10/100 Link / Active PoE in Use: Detects PSE Device |
| Dimensions (H x W x D) | 26 x 70 x 97 mm |
| Weight | 0.2 kg |
| Power Supply | 48V DC, 0.4A external AC-to-DC adapter |
| Operating Temperature | 0~50 degrees C |
| Operating Humidity | 5~90% (non-condensing) |
| LFP Mode | Enable: when either TP port or FX port is broken, shut down the other port Disable: Link LED indicators is still on if connection of the other end is broken |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
