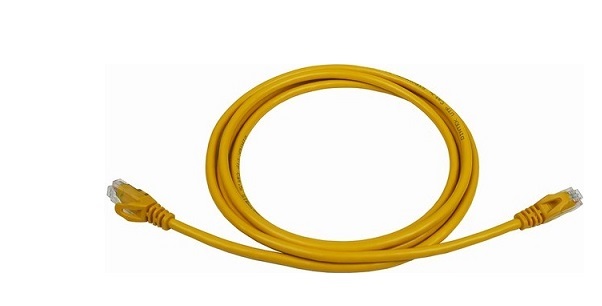

Patch cord Dintek CAT.5E UTP (10m)

Patch cord Dintek CAT.5E UTP (10m)

- Patch Cord UTP Cat.5e, 10m, 2 đầu đúc RJ45.

- Color: Yellow, Blue, Gray.

Features

- 24AWG stranded wire provides maximum flexibility.

- Brilliant colors make management a snap.

- Fully tested to meet ANSI/TIA-568-C.2 category 5e requirement.

- The various colors are available to meet TIA/EIA-606 standards.

- The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet and 1.2Gbps ATM requirements.

Electrical Characteristics

- Contact material: Phosphor bronze alloy.

- Contact plating: 24 Karat hard gold (50 micro-inch plating thickness) over 100 micro-inch nickel.

Cable Data

- Conductor: 24AWG (7x0.2±0.01mm) stranded anneal copper wire.

- Insulation material: HDPE, FRPE.

- Diameter of dielectric core: 0.99±0.02mm.

- Insulation thickness: min AVG 0.19mm.

- Number of twist pairs: 4 pairs.

- Assembly: 4 pairs of dielectric core shall be stranded in circular form.

- Material of jacket: PVC/LSZH.

- Thickness of jacket: AVG 0.5mm.

- Nominal O.D.: 5.5±0.2mm.

- Flame rating: CM.

- Jacket color: red,orange,yellow,green,blue,grey, etc.

- RJ45 Plug: Housing>polycarbonate.

- Contact>copper alloy 50u” gold plated over nickel.

- Strength: 20lbs. min.

- Durability: 200 cycles min.

- Insulation resistance: 500 megaohms min.

- Molded boots prevent pin from bending and cables from kink.

- Wiring schemes: T568B.

Applications

- Voice.

- ISDN.

- 10Base T(IEEE 802.3).

- Fast Ethernet(IEEE802.3).

- 100Vg-AnyLAN(IEEE 802.12).

- Token Ring(IEEE 802.5).

- TP-PMD(ANSI X3T9.5).

- 100Base-T Ethernet(IEEE 802.3u).

- 155/622 Mbps ATM.

- 1000Base-T.

- 550MHz Broadband video.

 Standards

- UL, ETL Verifi ed.

- ANSI/TIA-568-C.2.

- ISO/IEC 11801.

- EN 50173.
