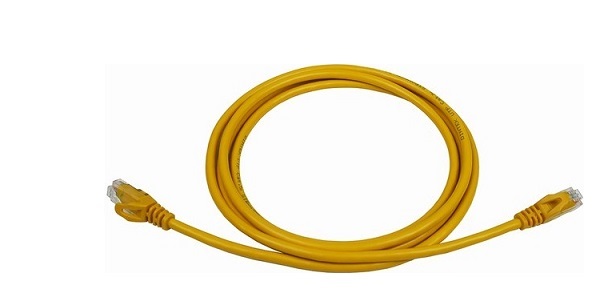

Patch cord Dintek CAT.5E UTP (1.8m)

Patch cord Dintek CAT.5E UTP (1.8m)

- Patch Cord UTP Cat.5e, 1.8m, 2 đầu đúc RJ45, yellow.

Features

- 24AWG stranded wire provides maximum flexibility.

- Brilliant colors make management a snap

- Fully tested to meet ANSI/TIA-568-C.2 category 5e requirement.

- The various colors are available to meet TIA/EIA-606 standards.

- The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet and 1.2Gbps ATM requirements.

Electrical Characteristics

- Contact material: Phosphor bronze alloy

- Contact plating: 24 Karat hard gold (50 micro-inch plating thickness) over 100 micro-inch nickel.

Cable Data

- Conductor: 24AWG (7x0.2±0.01mm) stranded anneal copper wire

- Insulation material: HDPE,FRPE

- Diameter of dielectric core: 0.99±0.02mm

- Insulation thickness: min AVG 0.19mm

- Number of twist pairs: 4 pairs

- Assembly: 4 pairs of dielectric core shall be stranded in circular form.

- Material of jacket: PVC/LSZH

- Thickness of jacket: AVG 0.5mm

- Nominal O.D.: 5.5±0.2mm

- Flame rating: CM

- Jacket color: red,orange,yellow,green,blue,grey, etc.

- RJ45 Plug: Housing>polycarbonate

- Contact>copper alloy 50u” gold plated over nickel

- Strength: 20lbs. min

- Durability: 200 cycles min.

- Insulation resistance: 500 megaohms min.

- Molded boots prevent pin from bending and cables from kink.

- Wiring schemes: T568B

Applications

- Voice

- ISDN

- 10Base T(IEEE 802.3)

- Fast Ethernet(IEEE802.3)

- 100Vg-AnyLAN(IEEE 802.12)

- Token Ring(IEEE 802.5)

- TP-PMD(ANSI X3T9.5)

- 100Base-T Ethernet(IEEE 802.3u)

- 155/622 Mbps ATM

- 1000Base-T

- 550MHz Broadband video

 Standards

- UL, ETL Verifi ed

- ANSI/TIA-568-C.2

- ISO/IEC 11801

- EN 50173
