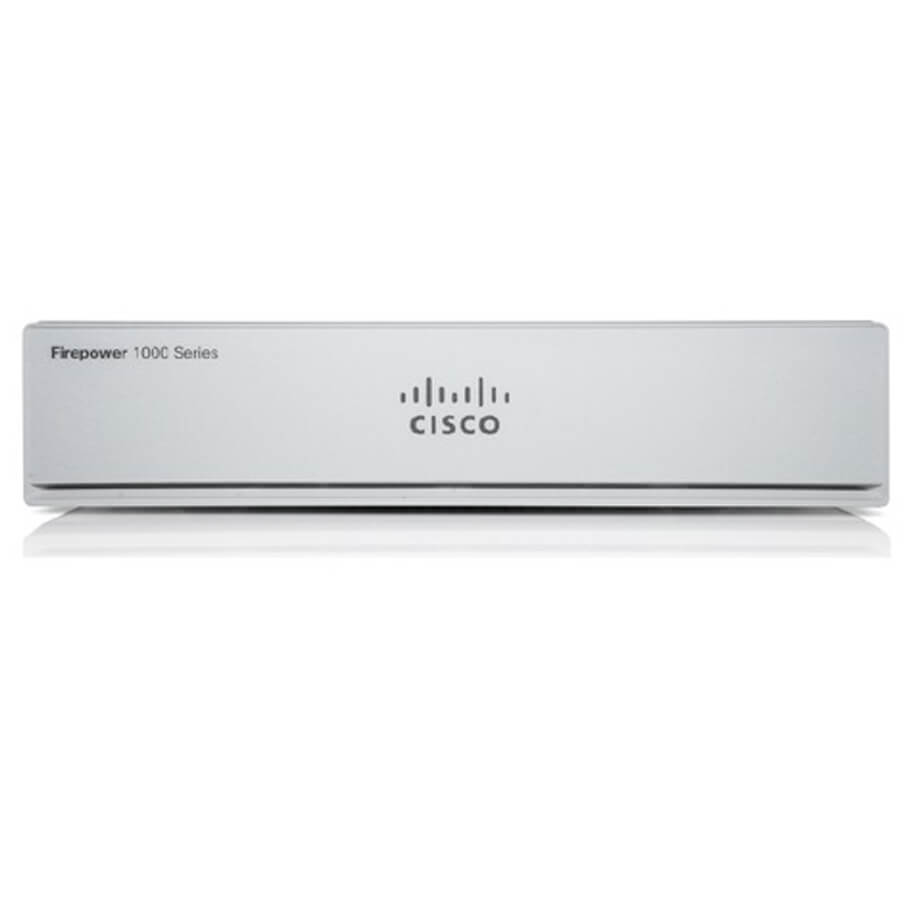

Firepower CISCO FPR1010-NGFW-K9
- FPR-1010-NGFW-K9 is the Cisco Firepower 1010 NGFW Appliance, with 8 x RJ45 interfaces. The Cisco Firepower 1000 Series is a family of three threat-focused Next-Generation Firewall (NGFW) security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. The 1000 Series’ throughput range addresses use cases from the small office, home office, remote branch office to the Internet edge. The 1000 Series platforms run Cisco Firepower Threat Defense (FTD).
- NGFW: 650Mbps.
- Next-Generation Intrusion Prevention System (NGIPS): 650Mbps.
- Form factor (rack units): DT.
- Integrated I/O: 8 x RJ-45.
- Dimensions (H x W x D): 1.82 x 7.85 x 8.07 in.
Specifications
| Detailed performance specifications and feature highlights | |
| Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B) | 650 Mbps |
| Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B) | 650 Mbps |
| Maximum concurrent sessions, with AVC | 100K |
| Maximum new connections per second, with AVC | 6K |
| Transport Layer Security (TLS) | 150 Mbps |
| Throughput: NGIPS (1024B) | 650 Mbps |
| IPSec VPN throughput (1024B TCP w/Fastpath) | 300 Mbps |
| Maximum VPN Peers | 75 |
| Cisco Firepower Device Manager (local management) | Yes |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| AVC | Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
| AVC: OpenAppID support for custom, open-source application detectors | Standard |
| Cisco Security Intelligence | Standard, with IP, URL, and DNS threat intelligence |
| Cisco Firepower NGIPS | Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Advanced Malware Protection (AMP) for Networks | Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco AMP for Endpoints is also optionally available |
| Cisco AMP Threat Grid sandboxing | Available |
| URL filtering: number of categories | More than 80 |
| URL filtering: number of URLs categorized | More than 280 million |
| Third-party and opensource ecosystem | Open API for integrations with third-party products; Snort® and OpenAppID community resources for new and specific threats |
| High availability and clustering | Active/standby |
| Cisco Trust Anchor Technologies | Cisco Firepower 1000 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details |
| ASA Performance and capabilities | |
| Stateful inspection firewall throughput1 | 2Gbps |
| Stateful inspection firewall throughput (multiprotocol) | 1.4 Gbps |
| Concurrent firewall connections | connections 100,000 |
| New connections per second | 25,000 |
| IPsec VPN throughput (450B UDP L2L test) | 500 Mbps |
| Maximum VPN Peers | 75 |
| High availability | Active/standby |
| Hardware specifications | |
| Dimensions (H x W x D) | 1.82 x 7.85 x 8.07 in |
| Form factor (rack units) | DT |
| Integrated I/O | 8 x RJ-45 (Includes 2 PoE+ capable ports) |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 3.0 Type-A (500mA) |
| Storage | 1 x 200 GB |
| Power supply configuration | +12V and -53.5V |
| AC input voltage | 100 to 240V AC |
| AC maximum input current | < 2A at 100V, < 1A at 240V |
| AC maximum output power | 115W (55W of +12V and 60W of -53.5V) |
| AC frequency | 50 to 60 Hz |
| AC efficiency | >88% at 50% load |
| Redundancy | None |
| Fans | None |
| Noise | 0 dBA |
| Rack mountable | Yes. Separate kit must be ordered. |
| Weight | 1.36 kg |
| Temperature: operating | 32 to 104°F (0 to 40°C) |
| Temperature: nonoperating | -13 to 158°F (-25 to 70°C) |
| Humidity: operating | 90% noncondensing |
| Humidity: nonoperating | 10 to 90% noncondensing |
| Altitude: operating | 9843 ft (max) 3000 m (max) |
| Altitude: nonoperating | 15,000 ft (max) |
- Bảo hành: 12 tháng.
