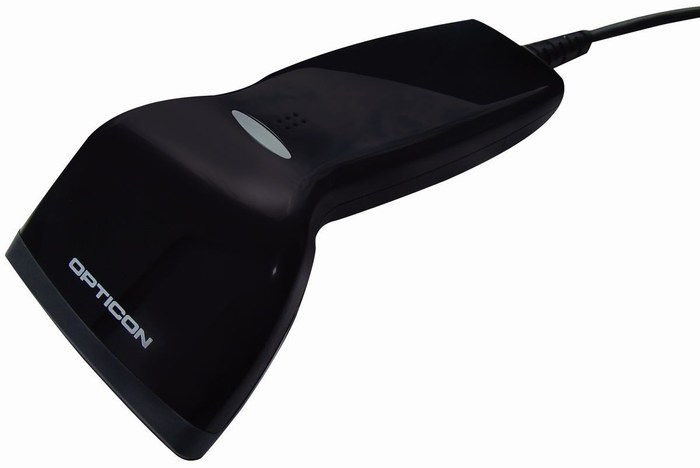

Máy quét mã vạch OPTICON C37-WEDGE

Operating indicators

Visual

1 LED (red/ green/ orange)

Non-visual

Buzzer

Operating keys

Entry options

1 scan key

Communication

RS232

DB9 F connector with external power supply

Power

Voltage requirement

6V (min. 4.5, max. 6.6V) (RS232)

Barcode scanner Optics

Light source

630 nm red LED

Scan method

CCD linear Sensor 2500 pixels

Scan rate

200 scans/sec

Trigger mode

Manual, auto-trigger

Reading pitch angle

-35 to 0°, 0 to +35°

Reading skew angle

-70 to -20°, 20 to +70°

Reading tilt angle

-20 to 0°, 0 to +20°

Curvature

R>15 mm (EAN8), R>20 mm (EAN13)

Min. resolution at PCS 0.9

0.125 mm / 5 mil

Depth of field

0 - 15 mm / 0 - 0.59 in, at PCS 0.9, Code 39

Supported Symbologies

Barcode (1D)

JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/Plessey

Postal code

Chinese Post, Korean Postal Authority code

Durability

Temperature in operation

0 to 50 °C / 32 to 122 °F

Temperature in storage

-20 to 60 °C / -14 to 140 °F

Humidity in operation

5 - 95% (non-condensing)

Humidity in storage

5 - 95% (non-condensing)

Ambient light immunity

Fluorescent 10,000 lx max, Incandescent 10,000 lx max

Drop test

1.5 m / 5 ft drop onto concrete surface

Vibration test

10 - 100 Hz with 2G for 1 hour

Protection rate

IP42

Regulatory & Safety

Product compliance

CE, FCC, VCCI, RoHS

Case

ABS, Black or White

Physical

Dimensions (w x h x d)

53 x 75 x 150 mm / 2.09 x 2.95 x 5.91 in

Weight body

Ca. 90 g / 3.2 oz (excl. cable)
