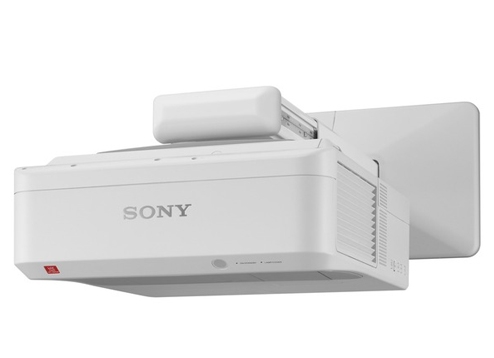

MÁY CHIẾU GẦN SONY VPL-SW536

Optical

Projection System

3 LCD panels, 1 lens projector system

Lamp

UHP lamp, 210W

Light Output

3,100 lm

Screen Size

70' to 130' (measured diagonally)

Panel

0.75' x 3 BrightEra LCD panel

Projector Lens

Approx. 1.05 times manual zoom/manual Focus, F=1.78~1.83, f= 4.92~5.18mm, TR=0.27~0.29:1

Keystone Correction Range

Max. Vertical : +/- 5 degrees

Lens Shift

Vertical ±4% (Manual), Horizontal ±2% (Manual)

Throwing Distance (16:10 Screen Aspect Ratio) From the center of projection window to screen

70' Screen 0.416 to 0.428m, 80' Screen 0.475 to 0.489m, 90' Screen 0.534 to 0.550m, 100' Screen 0.594 to 0.611m, 130' Screen 0.771 to 0.795m

Signals

Contrast ratio

2500:01:00

Resolution

Panel display: 3,072,000 (1280 x 800 x 3) pixels

Colour System

NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Display resolution : Video signalinput

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p

Display resolution : Computer signalinput

Max. display (resizing): UXGA 1600 x 1200 dots*¹ (Panel display resolution : 1280 x 800 dots)

Displayable Scanning Frequency

fH: 15 KHz to 92 KHz, fV: 48 Hz to 92Hz

General

Dimension (WxHxD) (without protrusion)

Approx. 384.4mm x 122.5mm x 423.4 mm

Mass

Approx. 6.9 Kg (15 lb 3 oz)

Power Requirement

AC 100V to 240V, 3.0A to 1.3A, 50/60 Hz

Operating Temperature

0˚C to 40˚C

Operating Humidity

35% to 85% (no condensation)

Storage Temperature

(-20˚C to +60˚C)

Storage Humidity

10% to 90%

Speaker

16W x 1 (monaural)

Power Consumption Max (AC220V to 240V, AC100V to 120V)

282W/249W/221W, 291W/258W/229W (lamp mode : high/standard/low)

Power Consumption Standby (AC220V to 240V, AC100V to 120V)

5.9W/0.5W, 5.7W/0.5W (Stanard/Low)

Heat Dissipation (AC220V to 240V, AC100V to 120V)

962 BTU, 993 BTU

Input Interface

Input A

RGB /Y Pb PR input connector : Mini D-sub 15-pin (female), Audio input connector : Stereo mini jack

Input B

RGB Input connector : Mini D-sub 15-pin (female), Audio input connector : Stereo mini jack

Input C

HDMI input connector : HDMI 19-pin, HDCP support, Audio input connector : HDMI audio support

S VIDEO IN

S video input connector : Mini DIN 4-pin, Audio input connector : Pin jack (x2) (Shared with VIDEO IN)

VIDEO IN

Video input connector : Pin jack, Audio input connector : Pin jack (x2) (Shared with S VIDEO IN)

OUTPUT

Monitor output connector*² : Mini D-sub 15-pin (female), Audio output connector*³ : Stereo mini jack (variable out)

Control Signal input/output

RS-232C connector : D-sub 9-pin (male), LAN connector : RJ-45, 10BASE-T/100BASE-TX USB : Type-A, Type-B Microphone input : Mini jack
