0916 287 068 JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots TP-Link T1600G-28TS (TL-SG2424)
.jpeg "JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots TP-Link T1600G-28TS (TL-SG2424)")

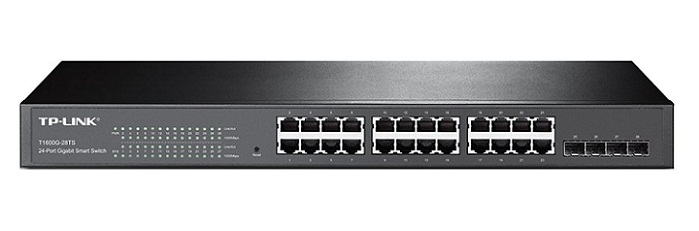

JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots TP-Link T1600G-28TS (TL-SG2424)
- 24 cổng RJ45 10/100/1000Mbps + 4 slot Gigabit SFP.
- QoS L2/ L3/ L4 và ICMP Snooping tối ưu hóa cho các ứng dụng âm thanh và video.
- Với SNMP, RMON, WEB/ CLI, mang lại các tính năng quản trị đa dạng.
- Địa chỉ MAC: 16K.
- Gigabit Ethernet connections on all ports provide full speed of data transferring.
- L2+ Feature-Static Routing, helps route internal traffic for more efficient use of network resources.
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment.
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications.
- IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
- WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features.
- Nguồn điện: 100-240VAC, 50/60Hz.
- Công suất tiêu thụ: Tối đa 23.2W.
- Hỗ trợ hệ điều hành: Microsoft Windows XP, Vista™, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux.
- Kích thước: 440 x 180 x 44 mm.
Đặc tính kỹ thuật
|
HARDWARE FEATURES |
|
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|
Interface |
24 10/100/1000Mbps RJ45 Ports |
|
(Auto Negotiation/Auto MDI/MDIX) |
|
|
4 Gigabit SFP Slots |
|
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
|
|
1000BASE-X: MMF, SMF |
|
|
Fan Quantity |
Fanless |
|
PERFORMANCE |
|
|
Bandwidth/Backplane |
56Gbps |
|
Packet Forwarding Rate |
41.7Mpps |
|
MAC Address Table |
16k |
|
Jumbo Frame |
9216 Bytes |
|
SOFTWARE FEATURES |
|
|
Quality of Service |
Support 802.1p CoS/DSCP priority |
|
Support 8 priority queues |
|
|
Queue scheduling: SP, WRR, SP+WRR |
|
|
Port/Flow- based Rate Limiting |
|
|
IPv6 QoS |
|
|
Voice VLAN |
|
|
L2 and L2+ Features |
Static Routing |
|
DHCP Relay |
|
|
IGMP Snooping V1/V2/V3 |
|
|
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) |
|
|
Spanning Tree STP/RSTP/MSTP |
|
|
BPDU Filtering/Guard |
|
|
TC/Root Protect |
|
|
Loopback detection |
|
|
802.3x Flow Control |
|
|
LLDP, LLDP-MED |
|
|
VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
|
MAC/Protocol-based VLAN |
|
|
Access Control List |
L2 - L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports |
|
IPv6 ACL |
|
|
Security |
AAA |
|
Port Security |
|
|
DHCP Snooping |
|
|
IP-MAC-Port Binding |
|
|
ARP Inspection |
|
|
802.1x and Radius Authentication |
|
|
SSH v1/v2 |
|
|
SSL v3/TLSv1 |
|
|
Broadcast/Multicast/Unknown-unicast Storm Control |
|
|
Dos Defend |
|
|
IPv6 |
Dual IPv4/IPv6 stack |
|
Multicast Listener Discovery (MLD) Snooping |
|
|
IPv6 neighbor discovery (ND) |
|
|
Path maximum transmission unit (MTU) discovery |
|
|
Internet Control Message Protocol (ICMP) version 6 |
|
|
TCPv6/UDPv6 |
|
|
IPv6 Applications |
DHCPv6 Client |
|
Ping6 |
|
|
Tracert6 |
|
|
Telnet (v6) |
|
|
IPv6 SNMP |
|
|
IPv6 SSH |
|
|
IPv6 SSL |
|
|
Http/Https |
|
|
IPv6 TFTP |
|
|
Management |
Web-based GUI and CLI management |
|
SNMP v1/v2c/v3,compatible with public MIBs and |
|
|
TP-LINK private MIBs |
|
|
RMON (1, 2, 3, 9 groups) |
|
|
CPU Monitoring |
|
|
Port Mirroring |
|
|
Firmware Upgrade: TFTP & Web |
|
|
System Diagnose: VCT |
|
|
SYSLOG & Public MIBS |
|
|
Dual Image |
|
|
OTHERS |
|
|
Certification |
CE, FCC, RoHS |
|
Power Supply |
100 ~ 240VAC, 50/60Hz |
|
Power Consumption |
Maximum: 23.2W (220V/50Hz) |
|
System Requirements |
Microsoft Windows XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
|
Dimensions |
440 x 180 x 44 mm |
- Hàng chính hãng TP-LINK.
- Bảo hành: 12 tháng.
