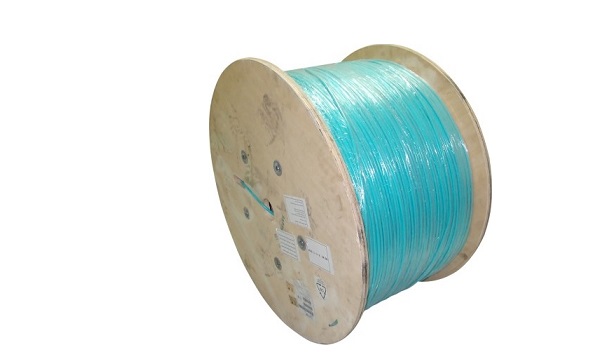

Cáp quang Indoor Multimode 12 lõi OM3 COMMSCOPE 3-1859420-3

Cáp quang Indoor Multimode 12 lõi OM3 COMMSCOPE 3-1859420-3

Part Number: 3-1859420-3

- Indoor Fiber Optic Cable, 12-fiber, OM3, OFNR, 3000m.

Specifications

Product Classification

- Portfolio: NETCONNECT®

- Product Type: Fiber indoor cable

- Regional Availability: Asia

Construction Materials

- Jacket Color: Aqua

- Total Fiber Count: 12

Signal Characteristics

- Attenuation, maximum (1300nm): 1.50dB/km

- Attenuation, maximum (850nm): 3.50dB/km

- Overfilled Launch Bandwidth (Min) (1300nm): 500 MHz-km

- Overfilled Launch Bandwidth (Min) (850nm): 1500 MHz-km

Cable Ratings

- Bend Radius (Installation): 124mm.

- Bend Radius (Unloaded): 62mm.

- Tensile Strength (Installation): 660.00N.

- Tensile Strength (Long Term): 198.00N.

- Crush resistance: 1000N/10cm

- Weight (Nominal): 32 kg/km.

Dimensions

- Length: 3000m.

Operation/Application

- Environment: Indoor

Usage Conditions

- Installation Temperature Range: -10 – 60 °C

- Operating Temperature Range: -20 – 70 °C

- Storage Temperature Range: -40 – 70 °C
